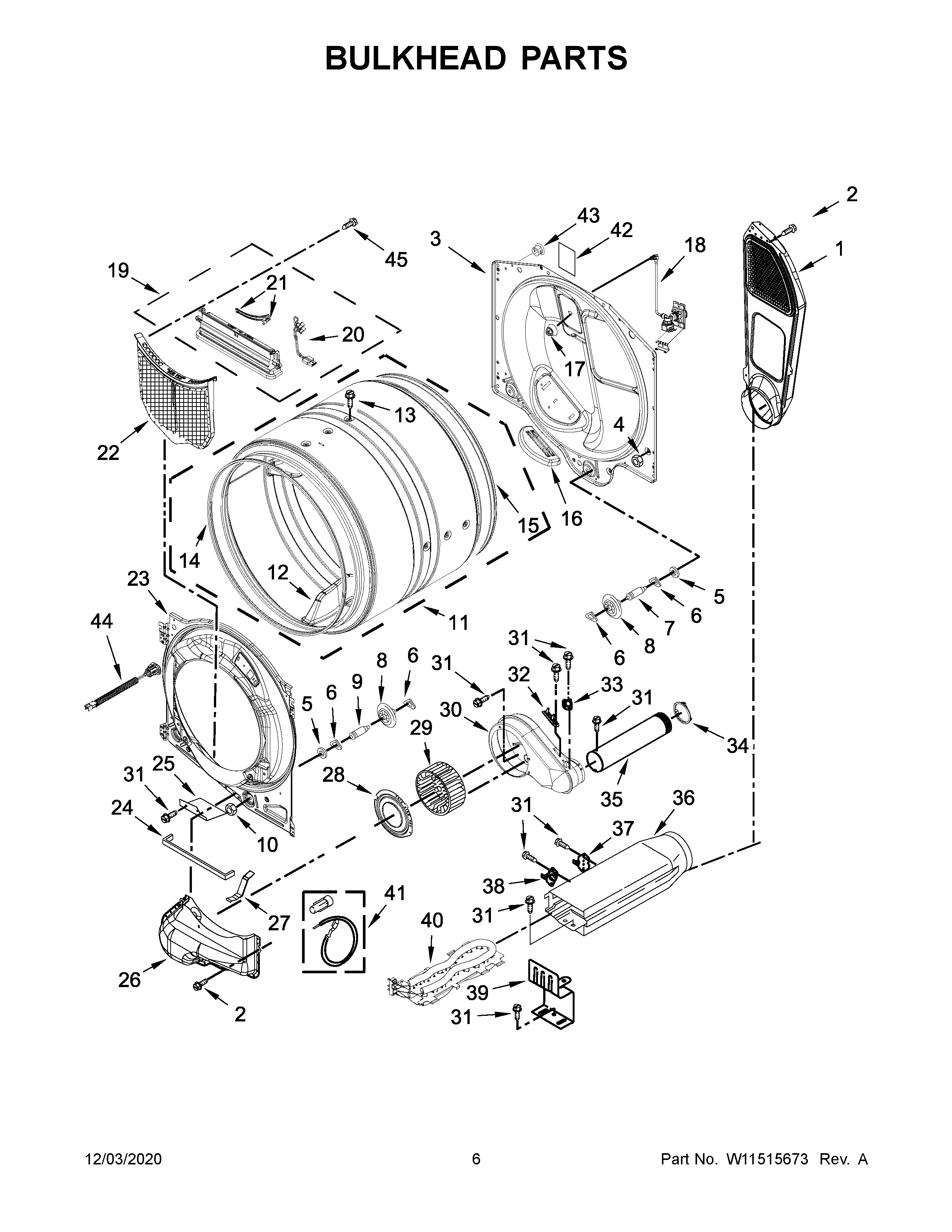

YMED8630HC2 04 – BULKHEAD PARTS
Written by
in
YMED8630HC2 04 – BULKHEAD PARTS
Products
Position
Product
1
W11677720 Whirlpool Air Duct
2
WP488729 Whirlpool Refrigerator Door Screw
3
W11310044 Whirlpool Bulkhead
4
WPW10080190 Whirlpool Nut
5
W11236646 Whirlpool Washer Assembly
6
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7
SHAFT
8
WPW10314173 Whirlpool Dryer Drum Support Wheel
9
SHAFT
10
WPW10080210 Whirlpool Nut
11
W10541657 Whirlpool Drum Assembly
12
W10280771 Whirlpool Drum Baffle
13
W10853898 Whirlpool Screw
14
W11193479 Whirlpool Seal
15
280114 Whirlpool Dryer Drum Seal
16
SENSOR ASSEMBLY, QUAD BULKHEAD
17
W11230609 Whirlpool Nozzle
18
W11216837 Whirlpool Valve
19
HOUSNG-DRYER LINT
20
WPW10298258 Whirlpool Wire Harness
21
WP3387223 Whirlpool Electrode Assembly
22
SCREEN – LINT. ALPHA W/FELT
23
W10673491 Whirlpool Bulkhead Assembly
24
W11676493 Whirlpool Seal Assembly
25
W11257251 Whirlpool Shield
26
WPW10211896 Whirlpool Duct Lint
27
W10414388 Whirlpool Clip
28
W11688571 Whirlpool Collar
29
WP697772 Whirlpool Dryer Blower Wheel
30
WPW10211911 Whirlpool Housing
31
WP693995 Whirlpool Screw
32
FUSE-THRML
33
WP8577274 Whirlpool Dryer Thermistor
34
WPW10344699 Whirlpool Collar
35
WPW10342188 Whirlpool Exhaust Pipe
36
W10802681 Whirlpool Box Assembly
37
280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
38
WP8557403 Whirlpool Thermostat
39
8066099 Whirlpool Bracket
40
WP3387747 Whirlpool Dryer Heating Element
41
279457 Whirlpool Dryer Heating Element Wide Spade Connection
42
W11409002 Whirlpool Pad
43
8529007 Whirlpool Plug
44
W11310048 Whirlpool Light
45
WP3387230 Whirlpool Screw
←
