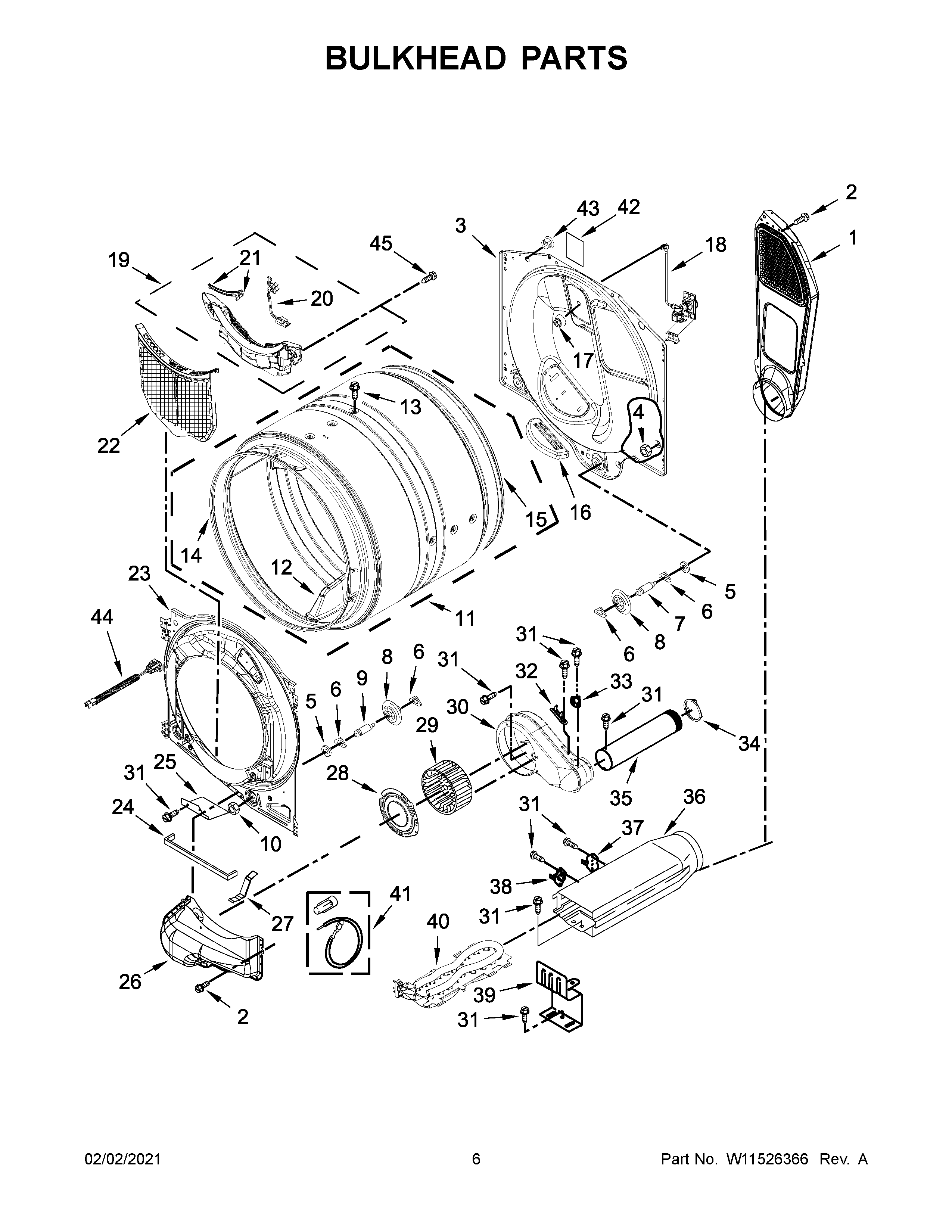

YMED8630HW2 04 – BULKHEAD PARTS

Products

Position	Product
1	W11677720 Whirlpool Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11310044 Whirlpool Bulkhead
4	WPW10080190 Whirlpool Nut
5	W11236646 Whirlpool Washer Assembly
6	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7	SHAFT
8	WPW10314173 Whirlpool Dryer Drum Support Wheel
9	SHAFT
10	WPW10080210 Whirlpool Nut
11	W10541657 Whirlpool Drum Assembly
12	W10280771 Whirlpool Drum Baffle
13	W10853898 Whirlpool Screw
14	W11193479 Whirlpool Seal
15	280114 Whirlpool Dryer Drum Seal
16	SENSOR ASSEMBLY, QUAD BULKHEAD
17	W11230609 Whirlpool Nozzle
18	W11216837 Whirlpool Valve
19	HOUSNG-DRYER LINT
20	WPW10298258 Whirlpool Wire Harness
21	WP3387223 Whirlpool Electrode Assembly
22	SCREEN – LINT. ALPHA W/FELT
23	W10673491 Whirlpool Bulkhead Assembly
24	W11676493 Whirlpool Seal Assembly
25	W11257251 Whirlpool Shield
26	WPW10211896 Whirlpool Duct Lint
27	W10414388 Whirlpool Clip
28	W11688571 Whirlpool Collar
29	WP697772 Whirlpool Dryer Blower Wheel
30	WPW10211911 Whirlpool Housing
31	WP693995 Whirlpool Screw
32	FUSE-THRML
33	WP8577274 Whirlpool Dryer Thermistor
34	WPW10344699 Whirlpool Collar
35	WPW10342188 Whirlpool Exhaust Pipe
36	W10802681 Whirlpool Box Assembly
37	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
38	WP8557403 Whirlpool Thermostat
39	8066099 Whirlpool Bracket
40	WP3387747 Whirlpool Dryer Heating Element
41	279457 Whirlpool Dryer Heating Element Wide Spade Connection
42	W11409002 Whirlpool Pad
43	8529007 Whirlpool Plug
44	W11310048 Whirlpool Light
45	WP3387230 Whirlpool Screw
