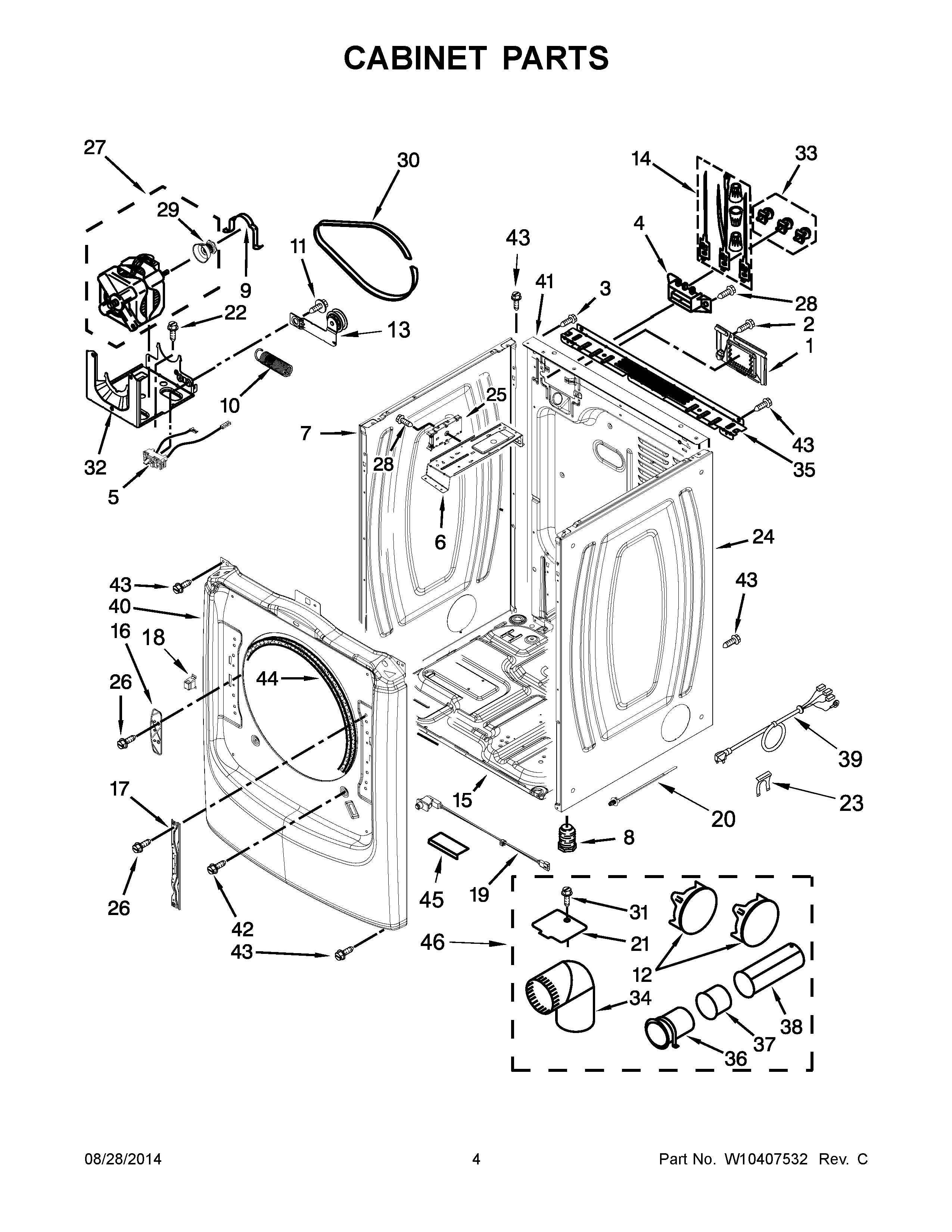

YMED9000YR0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 3397659
5	MAY W10246525
6	MAY W10259611
7A	MAY W10337789
7	Panel, Side (L.H.) (White)
7B	MAY W10301058
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	ASSEMBLY, IDLER
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8565046
16	MAY W10208250
17	MAY W10315109
18	MAY W10208401
19	MAY W10295361
20	MAY W10267532
21	MAY W10354249
22	SCREW
23	STRAIN-RELIEF CLIP
24A	MAY W10337790
24B	MAY W10301059
24	Panel, Side (R.H.) (White)
25	MAY W10378252
26	MAY W10288126
27	ASSEMBLY, MOTOR
28	SCREW,8-18 X 3/8
29	MAY W10460106
30	MAY W10112954
31	MAY 488729
32	MAY W10242878
33	MAY 279393
34	MAY W10416072
35	MAY W10208382
36	PIPE, EXHAUST (MEDIUM)
37	PIPE, EXHAUST (SHORT)
38	PIPE, EXHAUST (LONG)
39	Power Cord
40A	MAY W10337786
40B	MAY W10301067
40	MAY W10294349
41	MAY W10247569
42	SCREW
43	SCREW
44	MAY 3387242
45	MAY W10215725
46	KIT, 4-WAY VENT
