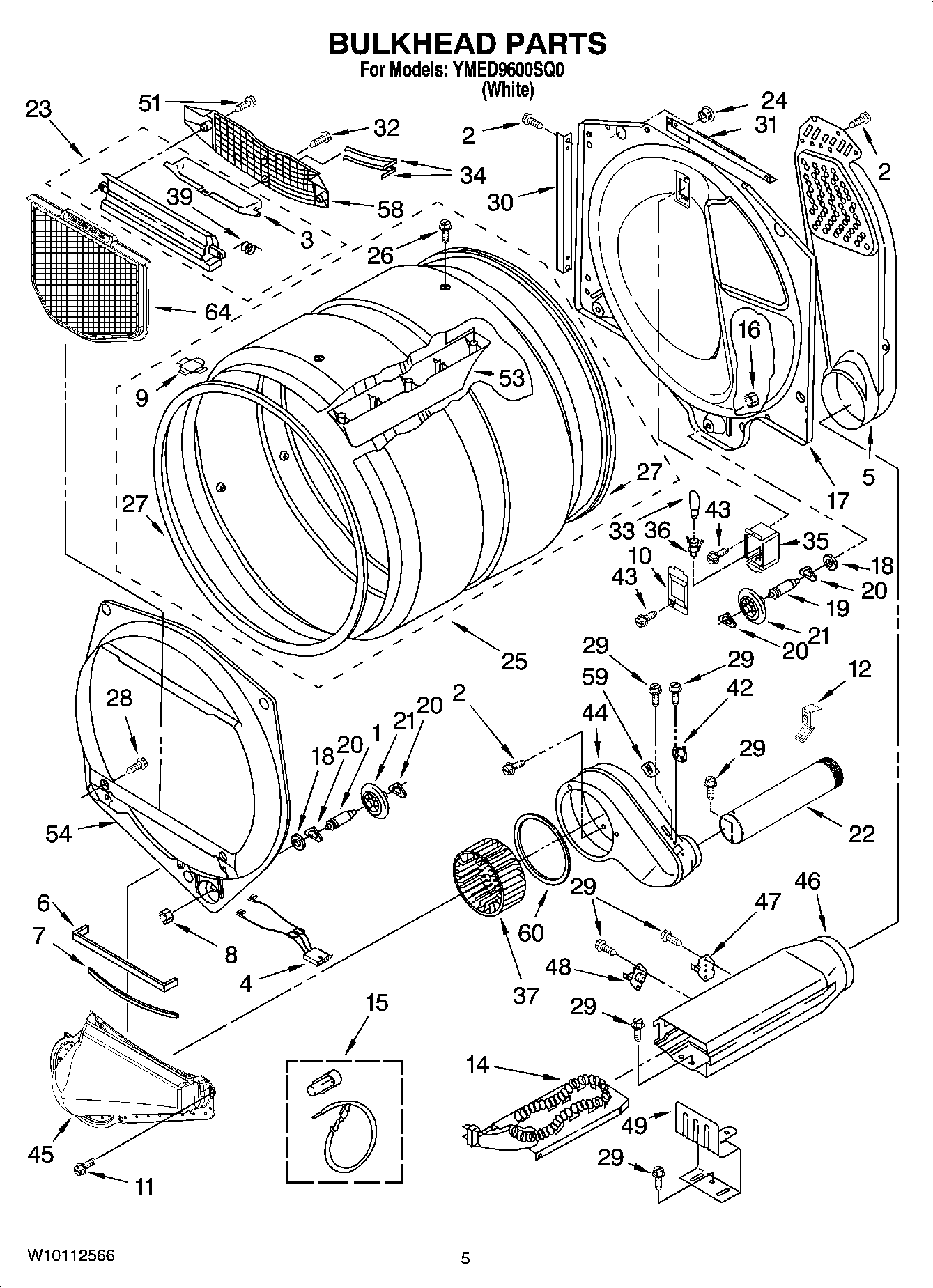

YMED9600SQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY 3394984
4	SENSOR HARNESS
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	Plug, Drum Hole
10	MAY 3402841
11	Screw
12	CLIP, EXHAUST
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8563745
23	MAY 3394985
24	MAY 8529007
25	Complete Drum Assembly
26	MAY 97787
27	MAY 697694
28	Screw, 8-18 x 1/2
29	SCREW,8-18 X 3/8
30	MAY 8519221
31	MAY 8571651
32	SCREW
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 3977373
36	Scocket, Assembly
37	MAY 697772
39	Spring, Lint Screen Door
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	HEATER BOX,
47	MAY 8318314
48	MAY 3391914
49	MAY 8066099
51	SCREW
53	BAFFLE, DRUM
54	MAY 8519245
58	MAY 8299979
59	Fuse, Thermal (91 C)
60	SEAL, PLATE COVER
64	MAY 8066170
