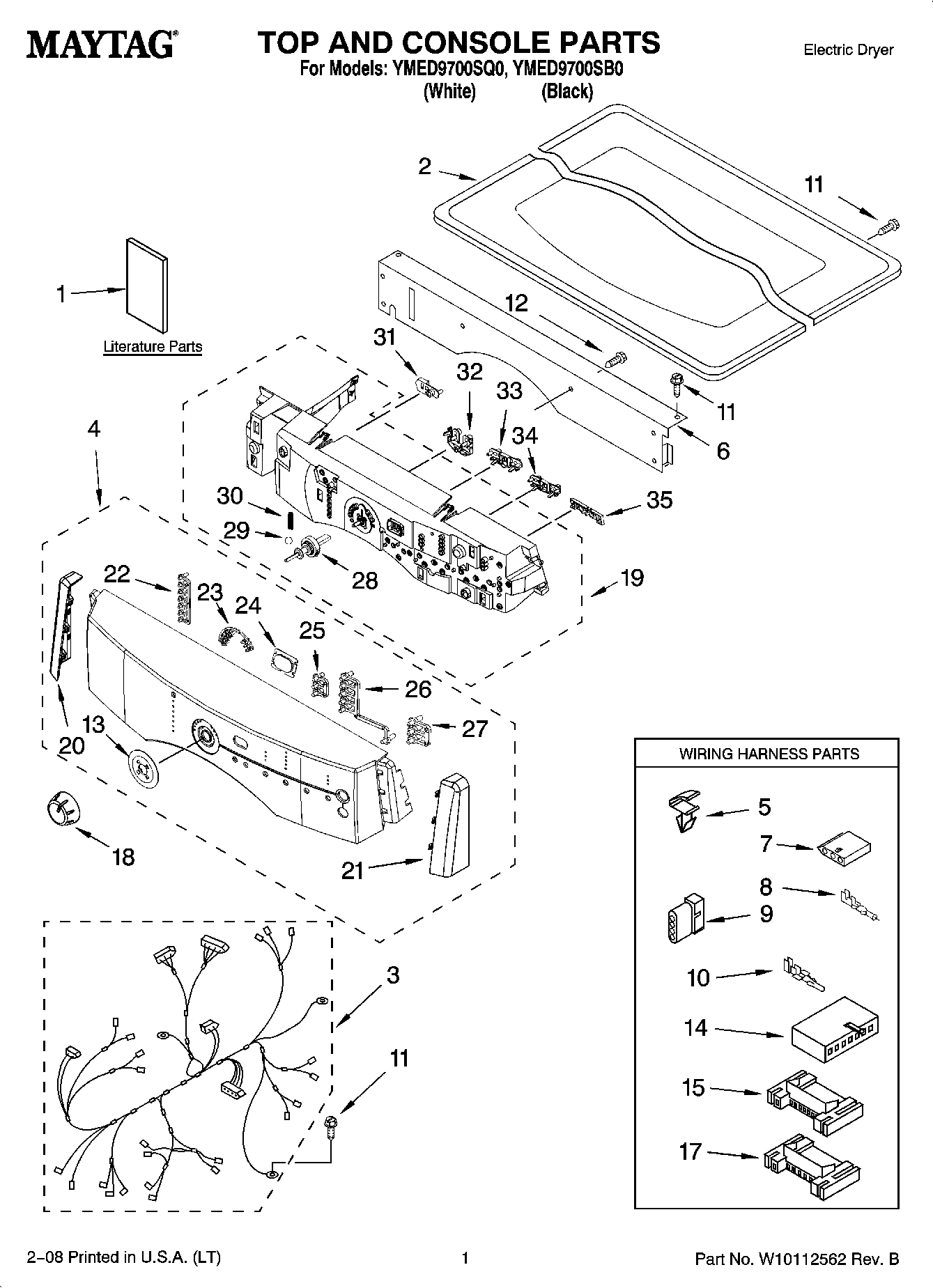

YMED9700SB0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10150616
1	MAY W10099080
1	MAY 8563818
2	Top (Includes, Illus. 36) (White)
2	Top (Includes, Illus. 36) (Black)
3	MAY 8529984
4	MAY W10098940
4	MAY W10098960
5	CLIP, HARNESS
6	MAY 8519271
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY 488886
13	MAY 8542690
14	MAY 3936150
15	CONNECTOR (MOTOR)
17	MAY 2203186
18	Knob, Assembly (White)
18	Knob, Assembly (Silver)
19	MAY 8558455
20	MAY 8580135
20	EndCap(LH) (White)
21	MAY 8580134
21	MAY 8562597
22	MAY 8542682
23	MAY 8542683
24	MAY 8542691
25	MAY 8542684
26	MAY 8542685
27	MAY 8542686
28	MAY 8542717
29	MAY 8542716
30	MAY 8542715
31	Pushbutton, (Control) (Silver)
31	Pushbutton, (Control) (Silver)
32	MAY W10100390
32	MAY 8579989
33	MAY 8562604
33	MAY 8579991
34	MAY 8579993
34	MAY 8562605
35	Pushbutton (Start/Cancel) (Silver)
35	Pushbutton (Start/Cancel) (Silver)
