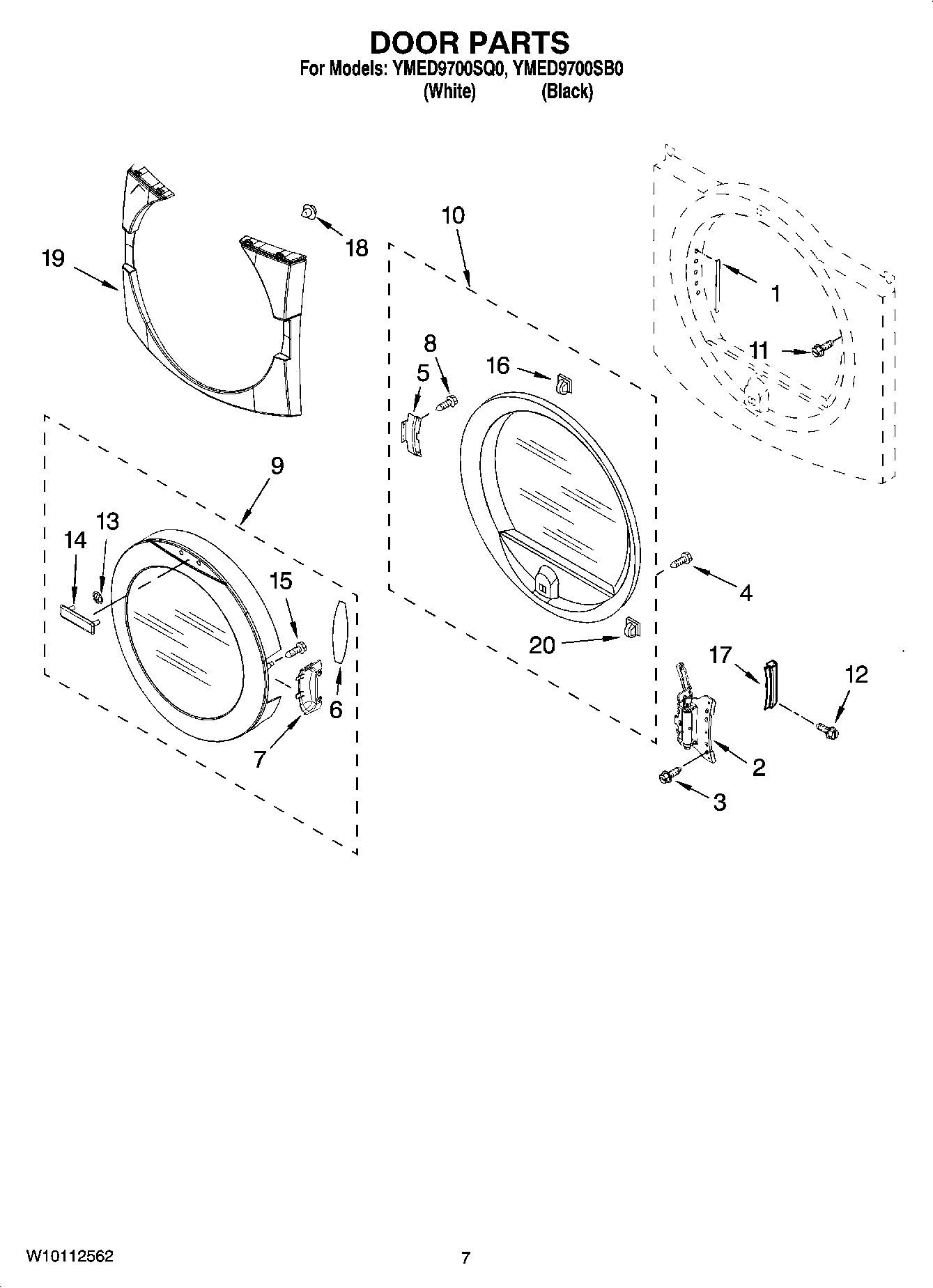

YMED9700SB0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 8541503
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	MAY 786020
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 4396603
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	ACCESSORY PARTS, KIT, HOLD DOWN
1	Plug-Strip Front Panel
2	MAY W10111141
3	SCREW
4	Screw
5	MAY 8529539
6	MAY 8541011
7	Filler, Door Handle (Black)
7	Filler, Door Handle (White)
8	SCREW, 10-16 X 1/2
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14) (Black)
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14) (White)
10	Inner Door Assembly (Includes Illus. 5, 8 16 & 20)
11	MAY 355515
12	Screw, 8-18 x 7/32
13	MAY 8558182
14	MAY W10116209
15	Screw
16	Catch, Door
17	MAY 8566486
17	MAY 8579980
18	MAY 8547091
19	MAY 8562596
19	MAY 8579981
20	DOOR CATCH ASSEMBLY
