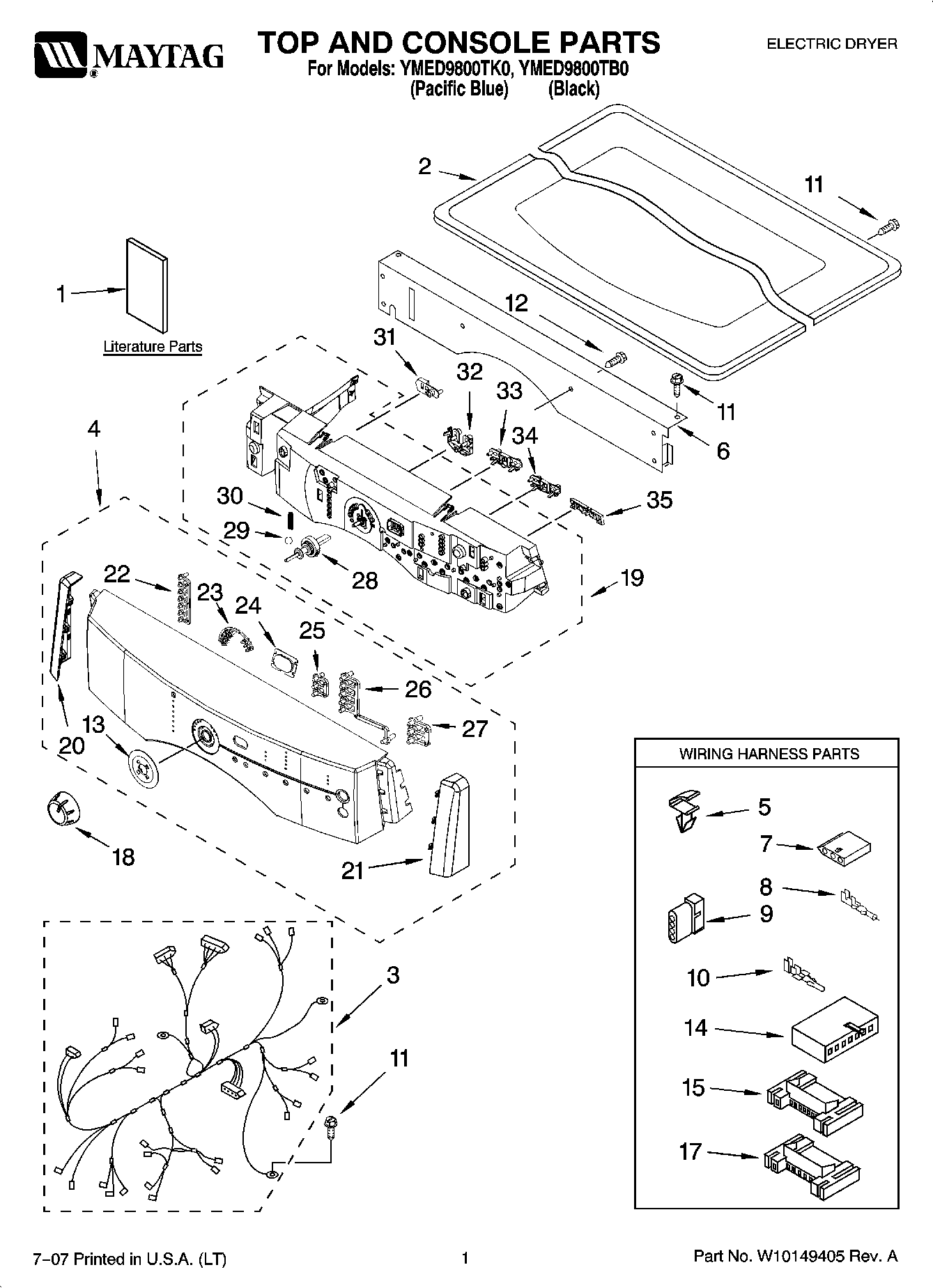

YMED9800TK0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10139629
1	MAY W10099080
1	MAY 8563818
2	MAY W10133996
2	Top (Includes, Illus. 36) (Black)
3	MAY 8529984
4	MAY W10133979
4	Panel, Console (Includes Bezel, Light Indicators & Endcaps) (Pacific Blue)
5	CLIP, HARNESS
6	MAY 8519271
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY 488886
13	MAY 8542690
14	MAY 3936150
15	CONNECTOR (MOTOR)
17	MAY 2203186
18	Knob, Assembly (White)
19	MAY 8558455
20	MAY 8579987
20	End Cap (L.H.) (Pacific Blue)
21	MAY 8579986
21	End Cap (R.H.) (Pacific Blue)
22	MAY 8542682
23	MAY 8542683
24	MAY 8542691
25	MAY 8542684
26	MAY 8542685
27	MAY 8542686
28	MAY 8542717
29	MAY 8542716
30	MAY 8542715
31	Pushbutton, (Control) (Silver)
32	MAY W10133967
33	MAY W10133968
34	MAY W10133969
35	Pushbutton (Start/Cancel) (Silver)
