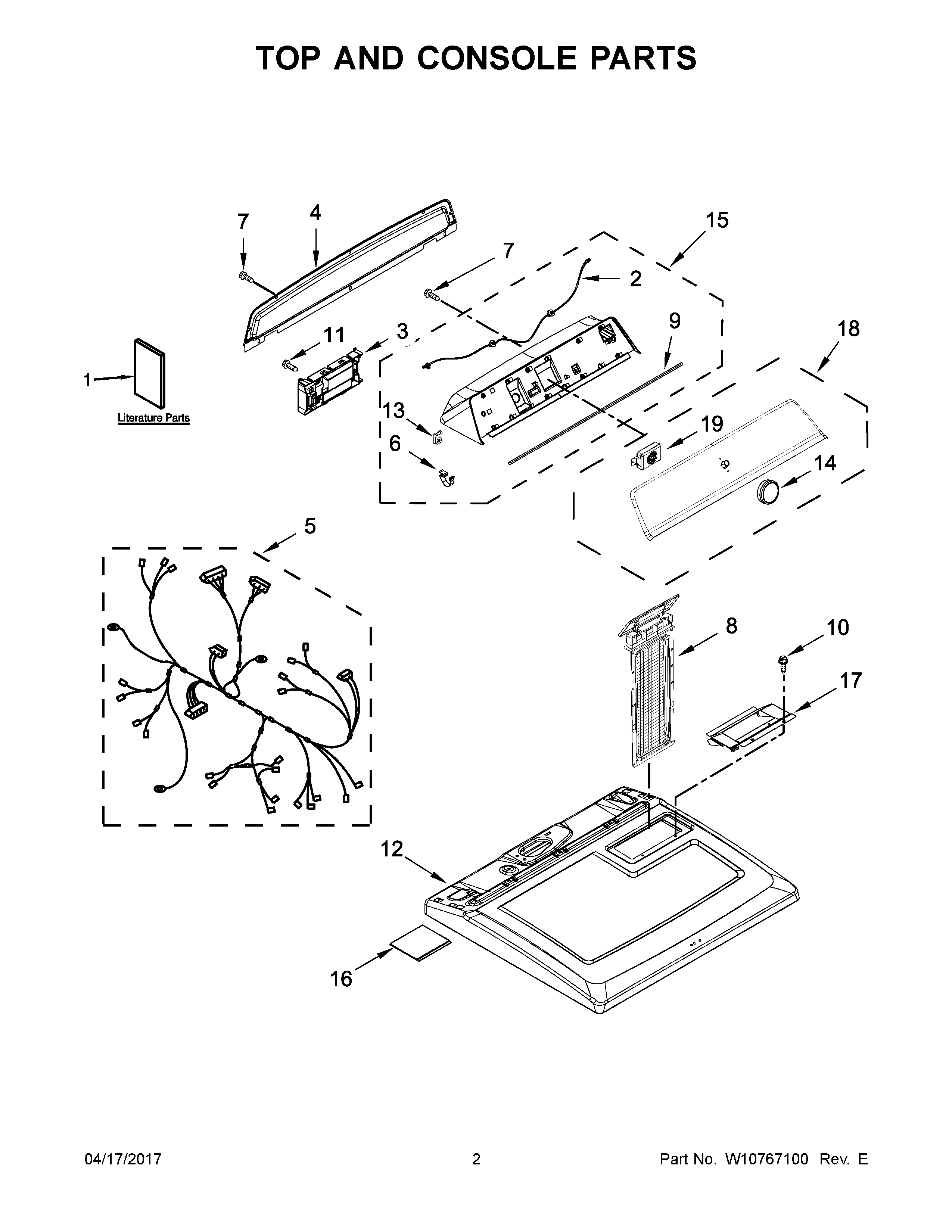

YMEDB755DW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BINSTALLATION INSTRUCTIONS
1ATECH SHEET
1USE AND CARE GUIDE
2HARNESS, USER INTERFACE
3CONTROL, ELECTRONIC
4PANEL, REAR
5HARNESS, MAIN WIRING
6MAY 8312709
7MAY 8533971
8LINT SCREEN (WHITE)
9MAY W10726632
10SCREW
11MAY 3348629
12TOP (WHITE)
13NUT, "U"
14ASSEMBLY, CONTROL KNOB (CHROME)
15ASSEMBLY, CONSOLE (WHITE)
16MAY W10123956
17COLLAR, LINT CHUTE
18ASSEMBLY, FASCIA
19ASSEMBLY, SPEAKER
