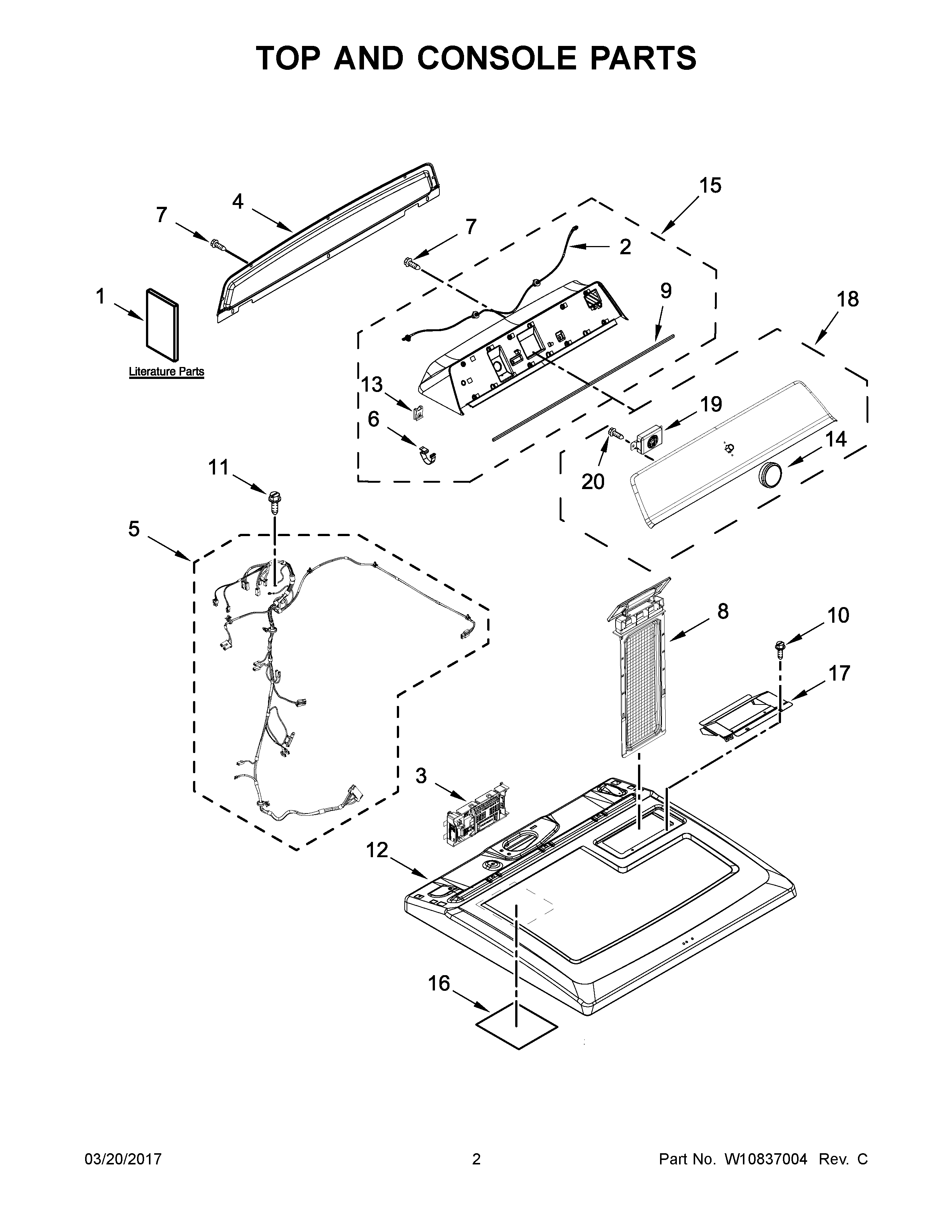

YMEDB755DW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	TECH SHEET
1A	USE AND CARE GUIDE
1	MAY W10848818
2	HARNESS, USER INTERFACE
3	CONTROL, ELECTRONIC
4	PANEL, REAR
5	HARNESS, MAIN WIRING
6	MAY 8312709
7	SCREW
8	LINT SCREEN (WHITE)
9	MAY W10726632
10	SCREW
11	MAY 3348629
12	TOP (WHITE)
13	NUT, "U"
14	ASSEMBLY, CONTROL KNOB (CHROME)
15	ASSEMBLY, CONSOLE (WHITE)
16	MAY W10836097
17	COLLAR, LINT CHUTE
18	ASSEMBLY, FASCIA
19	ASSEMBLY, SPEAKER
20	MAY 489470
