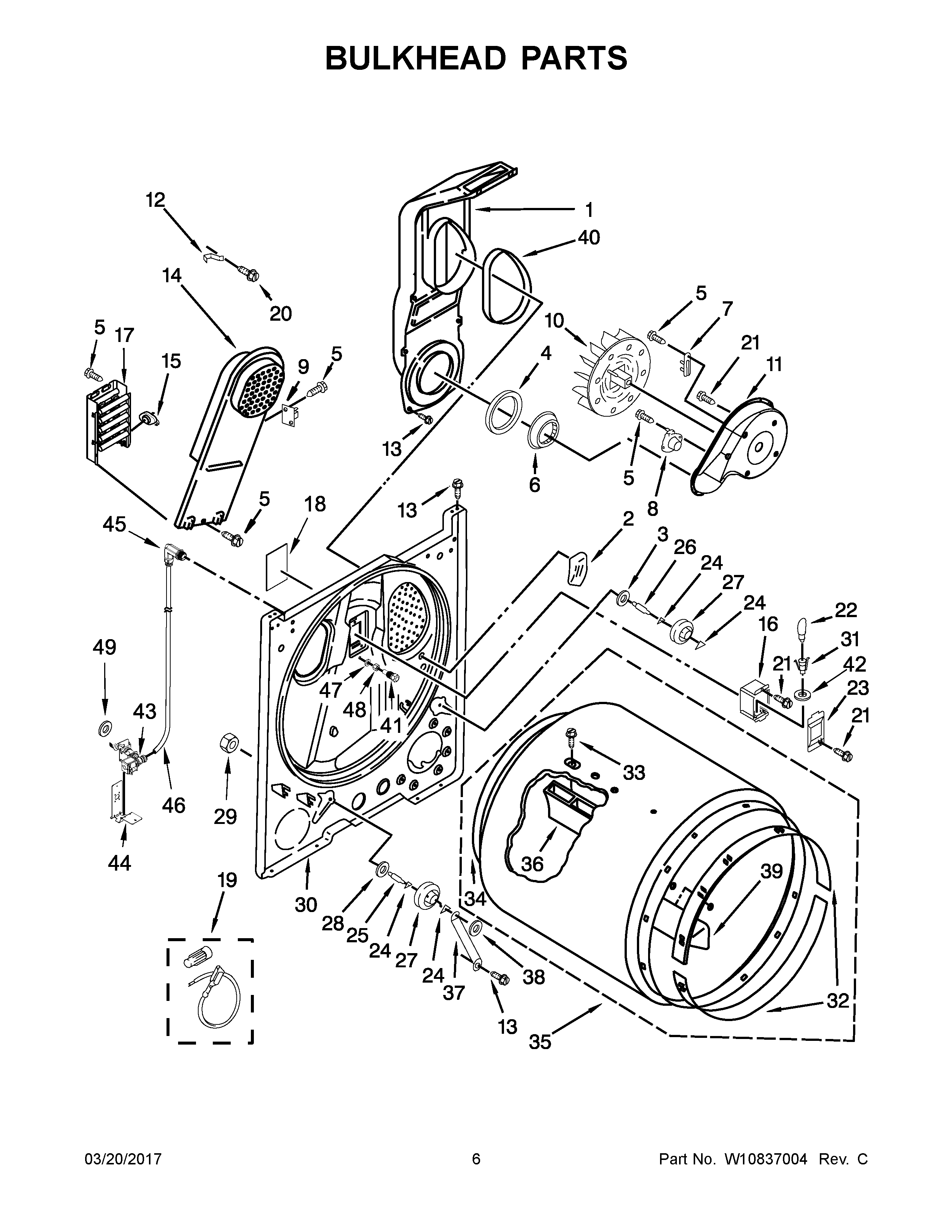

YMEDB755DW1 04 – BULKHEAD PARTS

Products

Position	Product
1	ASSEMBLY, LINT CHUTE
2	PAD, SENSOR
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	THERMISTOR
9	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	MAY 3977373
17	MAY W10724242
18	PAD, FOAM
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	MAY 3406124
23	MAY 3402841
24	WASHER, TRI RING
25	MAY W10359270
26	MAY W10359269
27	ROLLER, SUPPORT
28	WASHER
29	MAY W10298789
30	BULKHEAD
31	MAY W10214261
32	Bearing, Ring
33	MAY W10219342
34	SEAL, REAR DRUM
35	ASSEMBLY, DRUM (COMPLETE)
36	BAFFLE, DRUM (LONG)
37	BRACKET, SUPPORT
38	NUT, PUSH ON
39	BAFFLE, DRUM (SHORT)
40	MAY 339956
41	NOZZLE STREAM
42	SEAL, DRUM LIGHT
43	VALVE AND HOSE ASSEMBLY
44	BRACKET, VALVE
45	NOZZLE AND HOSE ASSEMBLY
46	HOSE
47	MAY W10044579
48	NUT, BRASS
49	ACCESSORY PARTS, WASHER, HOSE
