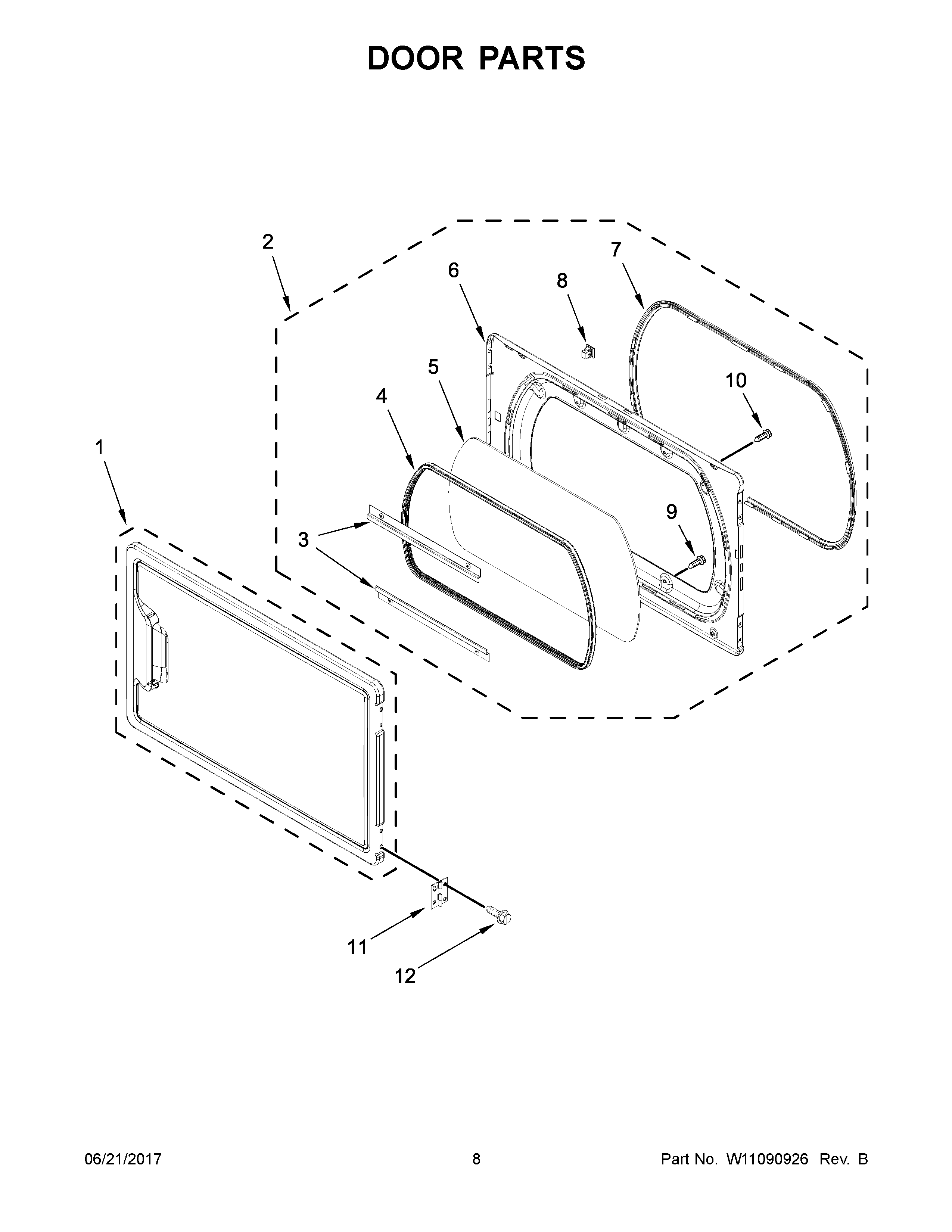

YMEDB765FW0 05 – DOOR PARTS

YMEDB765FW0 05 – DOOR PARTS

Written by

in

YMEDB765FW0 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, OUTER DOOR (WHITE)
2	ASSEMBLY, INNER DOOR (WHITE)
3	MAY 8519354
4	SEAL, WINDOW
5	GLASS, DOOR
6	DOOR, INNER (WHITE)
7	SEAL, DOOR
8	Catch, Door
9	Screw, 10-16 x 1/2
10	MAY 8534022
11	ASSEMBLY, HINGE & PIN (SILVER)
12	SCREW
