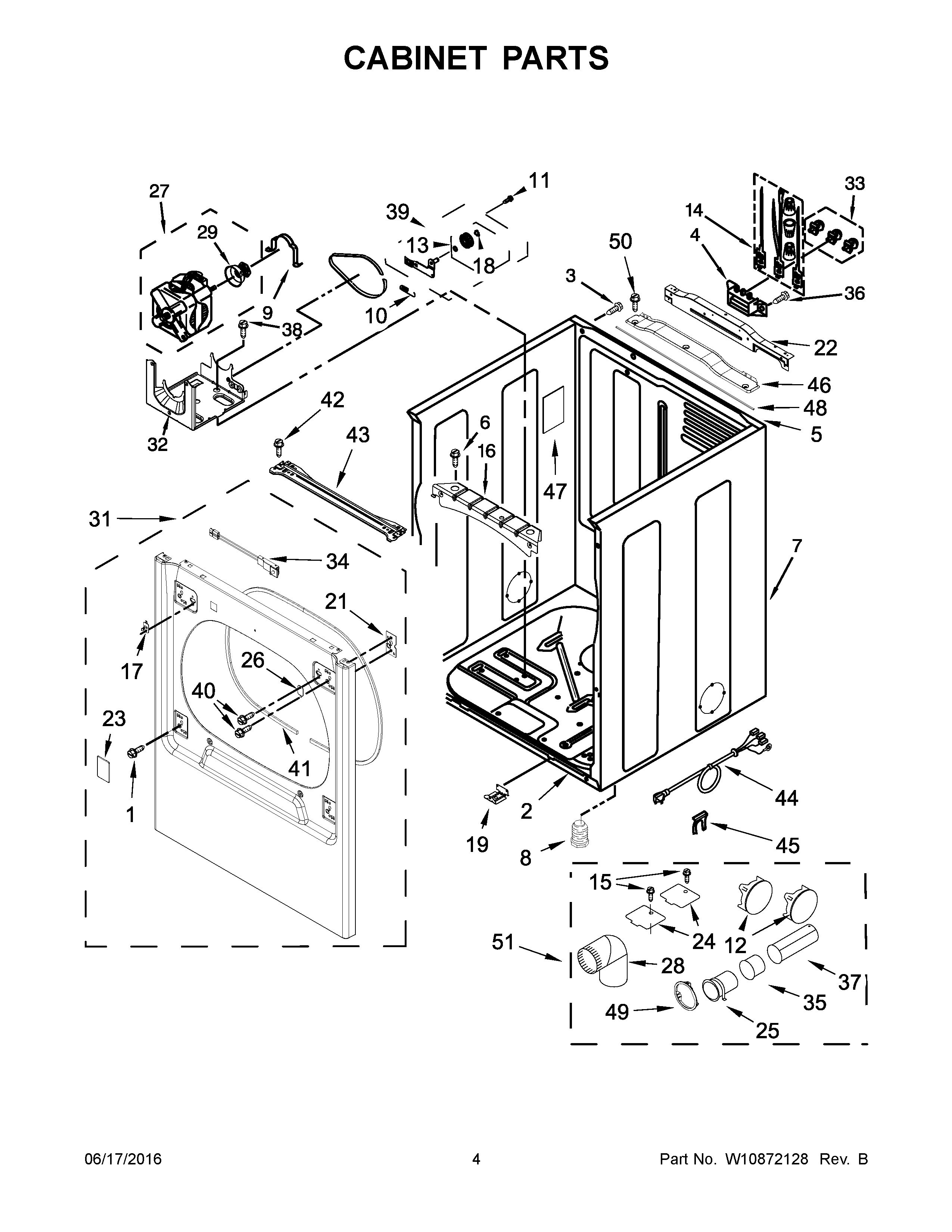

YMEDB835DW3 03 – CABINET PARTS

YMEDB835DW3 03 – CABINET PARTS

Written by

in

YMEDB835DW3 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
1MAY 920119
2MAY W10613683
3MAY W10636208
4MAY 3397659
5MAY W10824895
6MAY 8533974
7CABINET (WHITE (WITHOUT CUTOUT))
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12PLUG, MULTIVENT (MIDNIGHT GREY)
13MAY W10468057
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15SCREW
16MAY W10632348
17MAY W10778071
18WASHER, TRI RING
19MAY W10632347
20MAY W10121334
21MAY W10596959
22MAY W10622391
23PLUG, HINGE (WHITE)
24MAY W10354249
25MAY W10587890
26MAY W10111888
27MAY W10806761
28MAY W10416072
29MAY W10669447
30MAY W10610886
31MAY W10861063
32MAY W10578053
33MAY 279393
34MAY W10459026
35PIPE, EXHAUST (SHORT)
36SCREW, 10-16 X 1/2
37PIPE, EXHAUST (LONG)
38SCREW
39ASSEMBLY, IDLER
40MAY 3400805
41MAY 3387242
42MAY W10718190
43MAY W10722502
44CORD, POWER
45STRAIN-RELIEF CLIP
46BULKHEAD BRACKET, REAR PANEL (WHITE)
47MAY W10504381
48MAY W10316616
49MAY W10344699
50SCREW
51MAY W10704365
