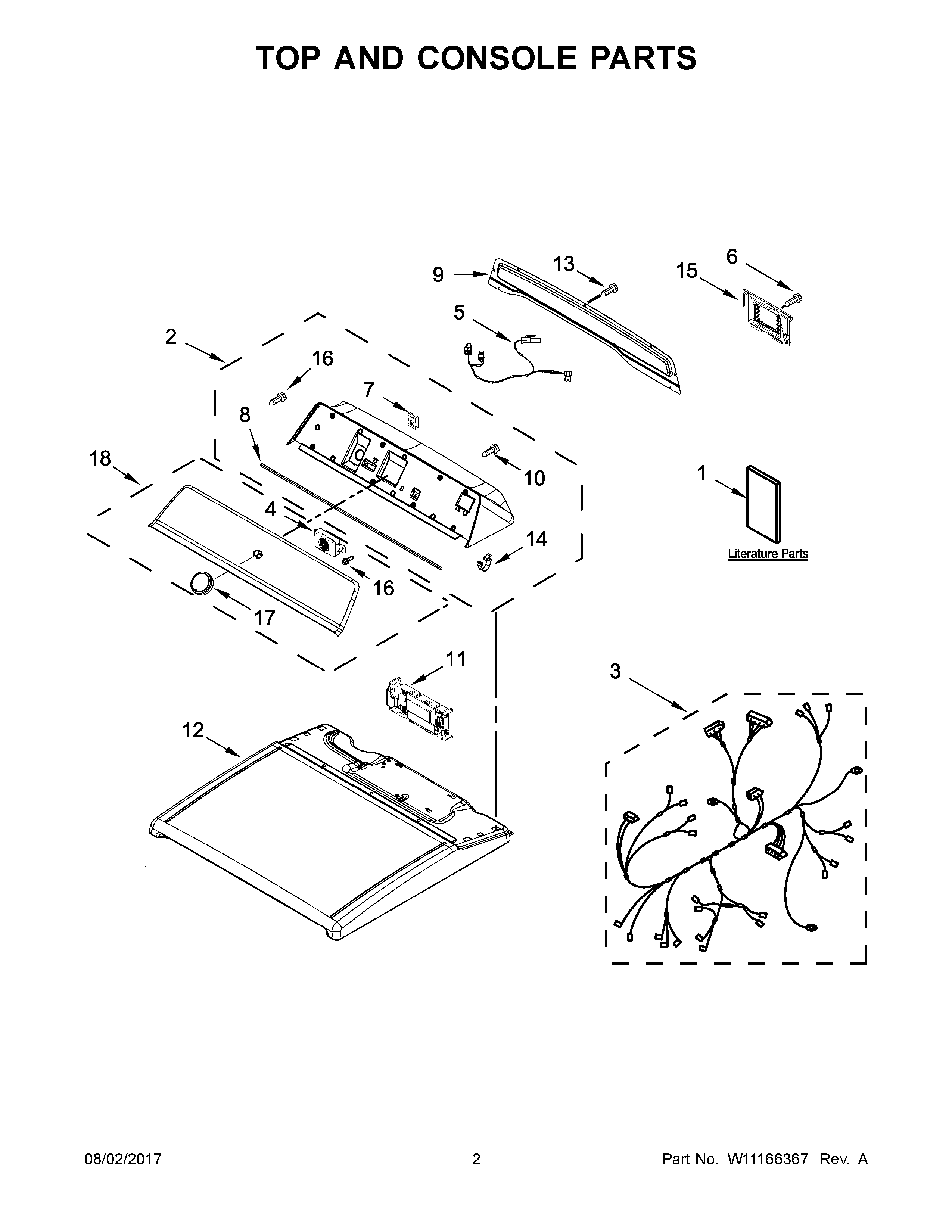

YMEDB835DW4 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1B	TECH SHEET
1C	MAY W10701469
1	MAY W10725269
2	ASSEMBLY, CONSOLE (WHITE)
3	WIRING HARNESS, MAIN
4	ASSEMBLY, SPEAKER
5	MAY W10788429
6	MAY 489470
7	NUT, "U"
8	MAY W10726632
9	MAY W10622402
10	SCREW
11	CONTROL, ELECTRONIC
12	MAY W10508981
13	MAY 9740849
14	MAY 8312709
15	MAY W10316167
16	SCREW
17	ASSEMBLY, CONTROL KNOB (CHROME)
18	FASCIA
19	MAY W10185554
