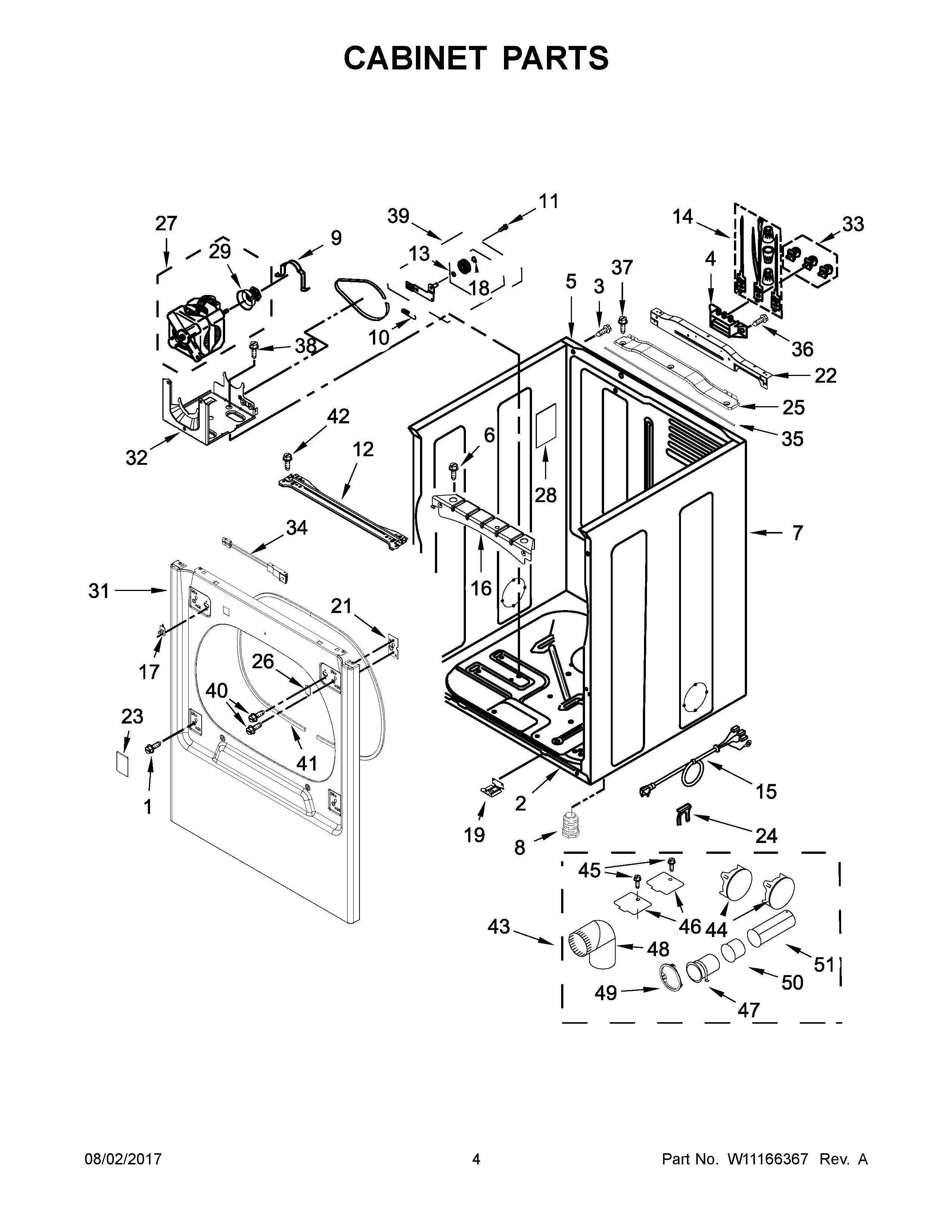

YMEDB835DW4 03 – CABINET PARTSadmin2025-04-26T08:54:18+00:00YMEDB835DW4 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | MAY W10613683 |
| 3 | MAY W10636208 |
| 4 | MAY 3397659 |
| 5 | MAY W10824895 |
| 6 | MAY 8533974 |
| 7 | CABINET (WHITE (WITHOUT CUTOUT)) |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY W10722502 |
| 13 | MAY W10468057 |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | CORD, POWER |
| 16 | MAY W10632348 |
| 17 | MAY W10778071 |
| 18 | WASHER, TRI RING |
| 19 | MAY W10632347 |
| 20 | MAY W10121334 |
| 21 | MAY W10596959 |
| 22 | MAY W10622391 |
| 23 | PLUG, HINGE (WHITE) |
| 24 | STRAIN-RELIEF CLIP |
| 25 | BULKHEAD BRACKET, REAR PANEL (WHITE) |
| 26 | MAY W10111888 |
| 27 | MAY W10806761 |
| 28 | MAY W10504381 |
| 29 | MAY W10669447 |
| 30 | MAY W10610886 |
| 31 | MAY W10861063 |
| 32 | MAY W10578053 |
| 33 | MAY 279393 |
| 34 | MAY W10459026 |
| 35 | MAY W10316616 |
| 36 | SCREW, 10-16 X 1/2 |
| 37 | SCREW |
| 38 | SCREW |
| 39 | ASSEMBLY, IDLER |
| 40 | MAY 3400805 |
| 41 | MAY 3387242 |
| 42 | MAY W10718190 |
| 43 | MAY W10704365 |
| 44 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 45 | SCREW |
| 46 | MAY W10354249 |
| 47 | MAY W10587890 |
| 48 | MAY W10416072 |
| 49 | MAY W10344699 |
| 50 | PIPE, EXHAUST (SHORT) |
| 51 | PIPE, EXHAUST (LONG) |
