YMEDB850WB1 02 – CABINET PARTS
Written by
in

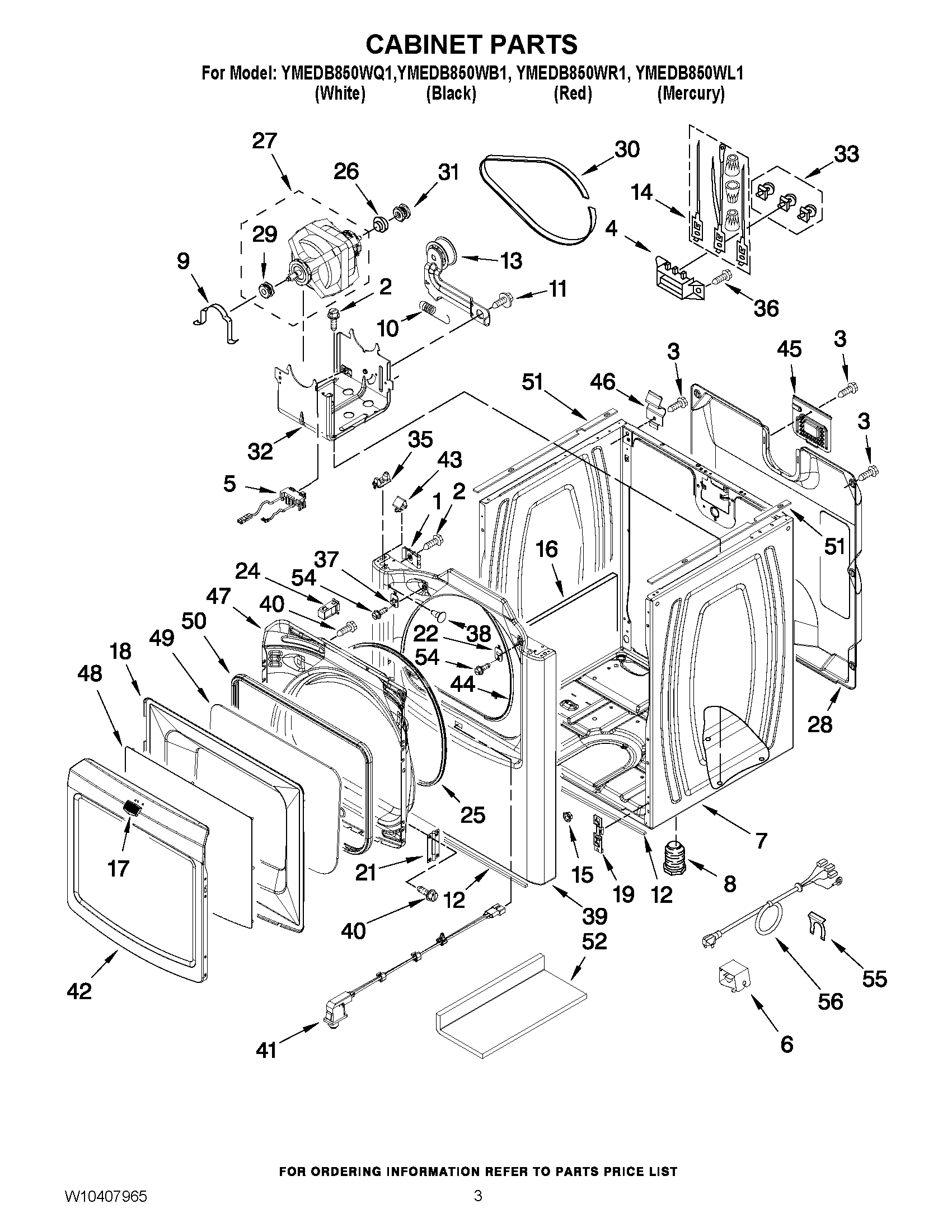

YMEDB850WB1 02 – CABINET PARTS
Products
Position
Product
NI
MAY 279810
1
Clip, Ground (2)
2
SCREW
3
Screw
4
MAY 3397659
5
MAY W10314253
6
Cable Tie
7
MAY W10283291
7
CABINET (INCLUDES ITEM 51 )
7
MAY W10283292
7
MAY W10223155
8
MAY 3392100
9
MAY 660658
10
MAY 3387374
11
SCREW
12
MAY W10224768
13
MAY 8547160
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15
Plug, Hole
16
MAY W10123956
17
MAY W10323735
18
BEZEL, DOOR
19
MAY 3394083
21
HINGE ASSEMBLY
21
HINGE ASSEMBLY (BLACK)
21
MAY W10252473
21
HINGE ASSEMBLY (MERCURY SILVER)
22
MAY W10111888
24
MAY W10111905
25
MAY W10221653
26
MAY 3393657
27
MAY W10136932
28
MAY W10140148
29
MAY W10139247
30
MAY W10136934
31
MAY W10136930
32
MAY 8547158
33
MAY 279393
35
LOCATOR, SNAP-DOWN
36
SCREW, 10-16 X 1/2
37
Strike, Door
38
MAY W10144494
39
FRONT PANEL (MERCURY SILVER)
39
MAY W10252447
39
Front Panel
39
MAY W10194731
40
MAY 342055
41
MAY W10201785
42
MAY W10252479
42
MAY W10252478
42
MAY W10111909
42
Door, Outer
43
Lock-Top Front (2)
44
MAY W10044490
45
MAY W10110241
46
MAY 238088
47
MAY W10252475
47
Door, Inner
47
MAY W10111910
47
MAY W10111900
48
WINDOW, OUTER
49
MAY W10111857
50
MAY W10111859
51
SEAL, FOAM
52
MAY W10215725
54
MAY 3400805
55
Power Cord
56
STRAIN-RELIEF CLIP
←
