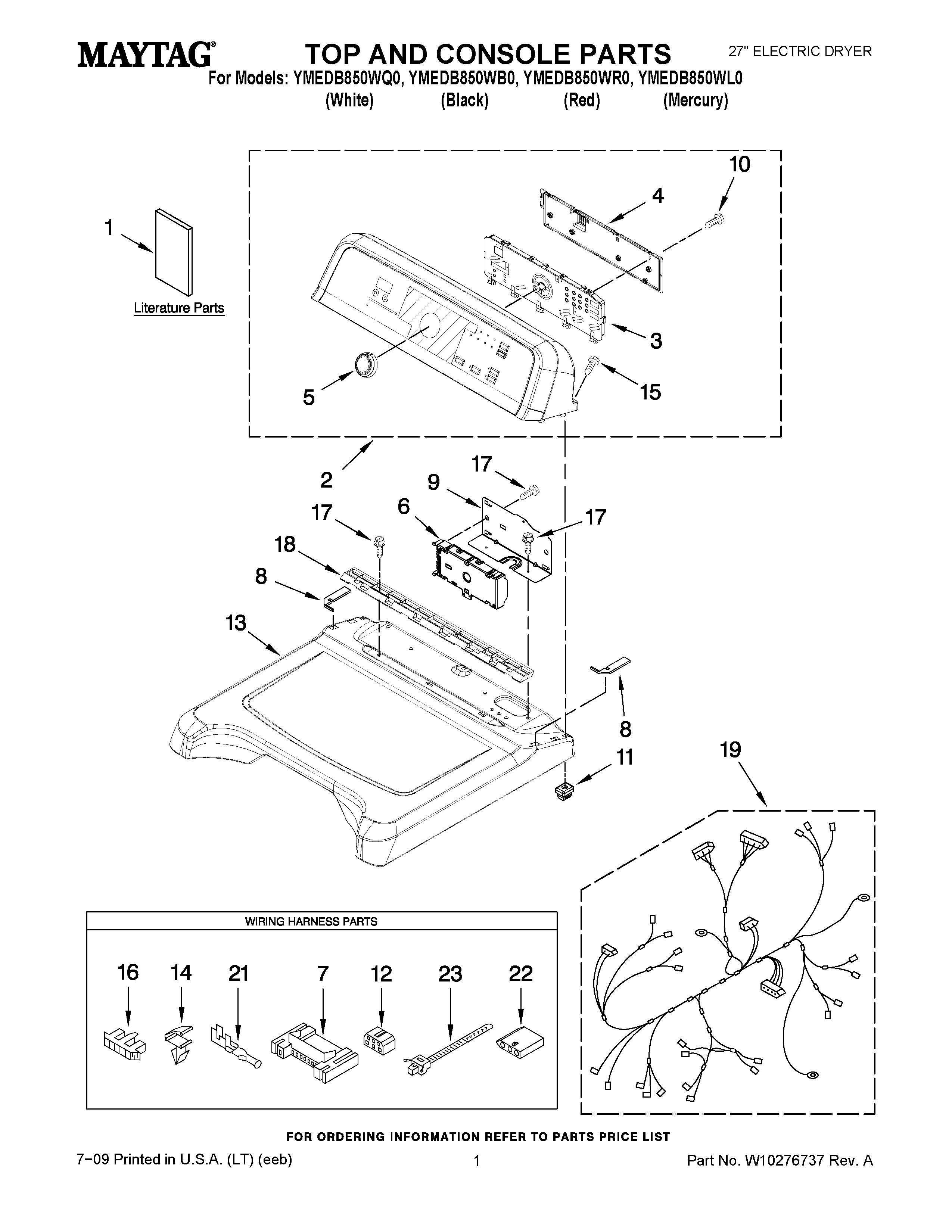

YMEDB850WR0 01 – TOP AND CONSOLE PARTS

YMEDB850WR0 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDB850WR0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10134980
1MAY W10200962
1MAY W10201171
1MAY W10201176
1MAY W10156735
2MAY W10252471
2MAY W10252470
2MAY W10252468
2MAY W10252469
3User Interface
4COVER, REAR
5MAY W10051126
6MAY W10111620
7CONNECTOR (MOTOR)
8Foam-Top (Left-Side)
8Foam-Top (Right-Side)
9MAY 8563853
10Screw, 6-19 x 3/64
11SCREW, GROMMET
12Connector
13MAY W10111911
13MAY W10252458
13Top (Includes Item. 8 )
13MAY W10252459
14CLIP, HARNESS
15Screw
16Connector-Timer
17Screw, 8-18 x 3/4
18MAY W10110295
19MAY W10111057
21Terminal
22MAY 3936144
23MAY 3391018
