YMEDB850YG1 01 – TOP AND CONSOLE PARTS – Aparts

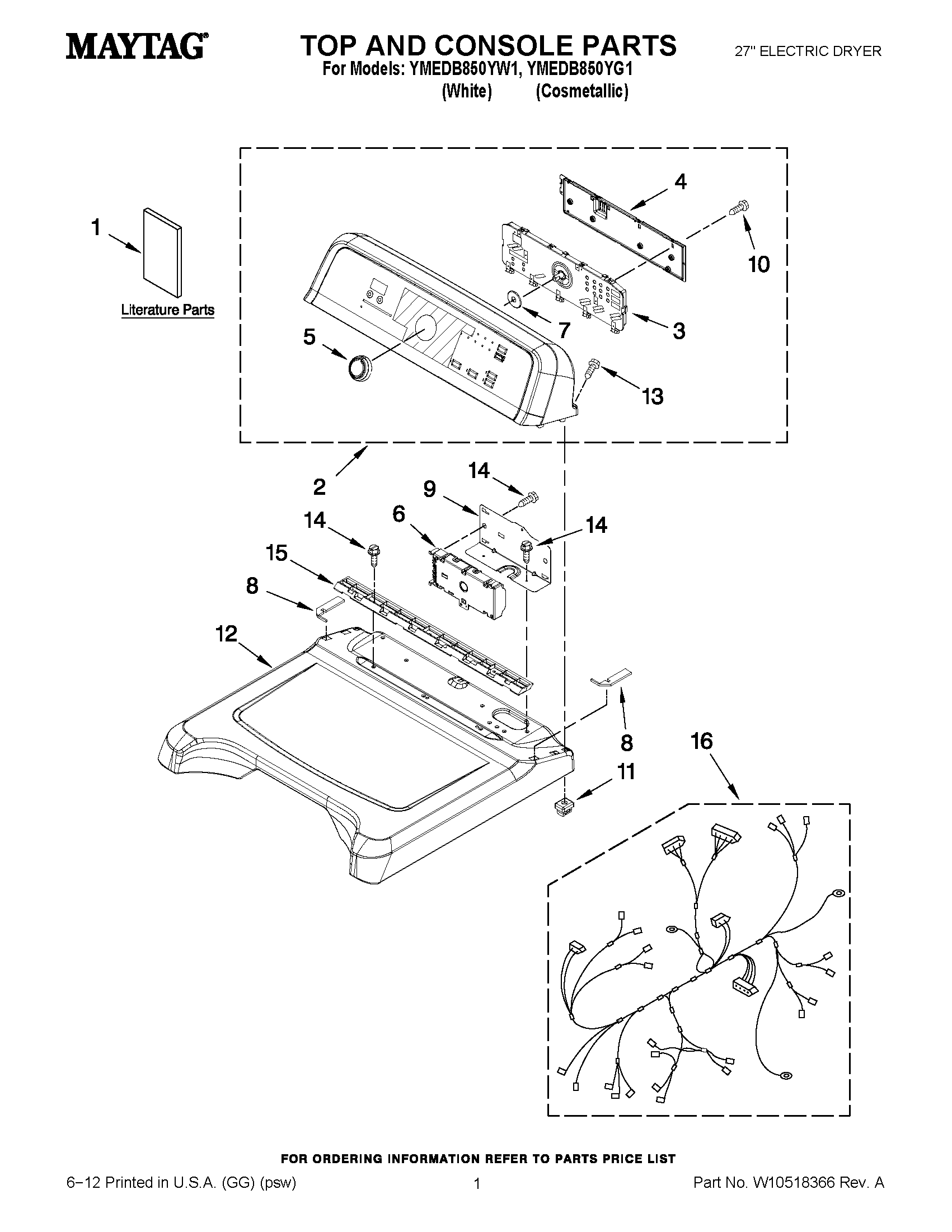

YMEDB850YG1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION, INSTRUCTIONS
1	USE & CARE GUIDE
1	MAY W10393006
2	MAY W10416110
2	MAY W10338345
3	MAY W10388670
4	COVER, REAR
5	MAY W10338554
6	MAY W10432257
7	SEAL, UI
8	Foam-Top (Left-Side)
8	Foam-Top (Right-Side)
9	MAY 8563853
10	Screw, 6-19 x 3/64
11	SCREW, GROMMET
12	TOP (INCLUDES ITEM. 8 )
12	TOP (GRANITE)
13	Screw
14	Screw, 8-18 x 3/4
15	MAY 8558863
16	MAY W10319801
