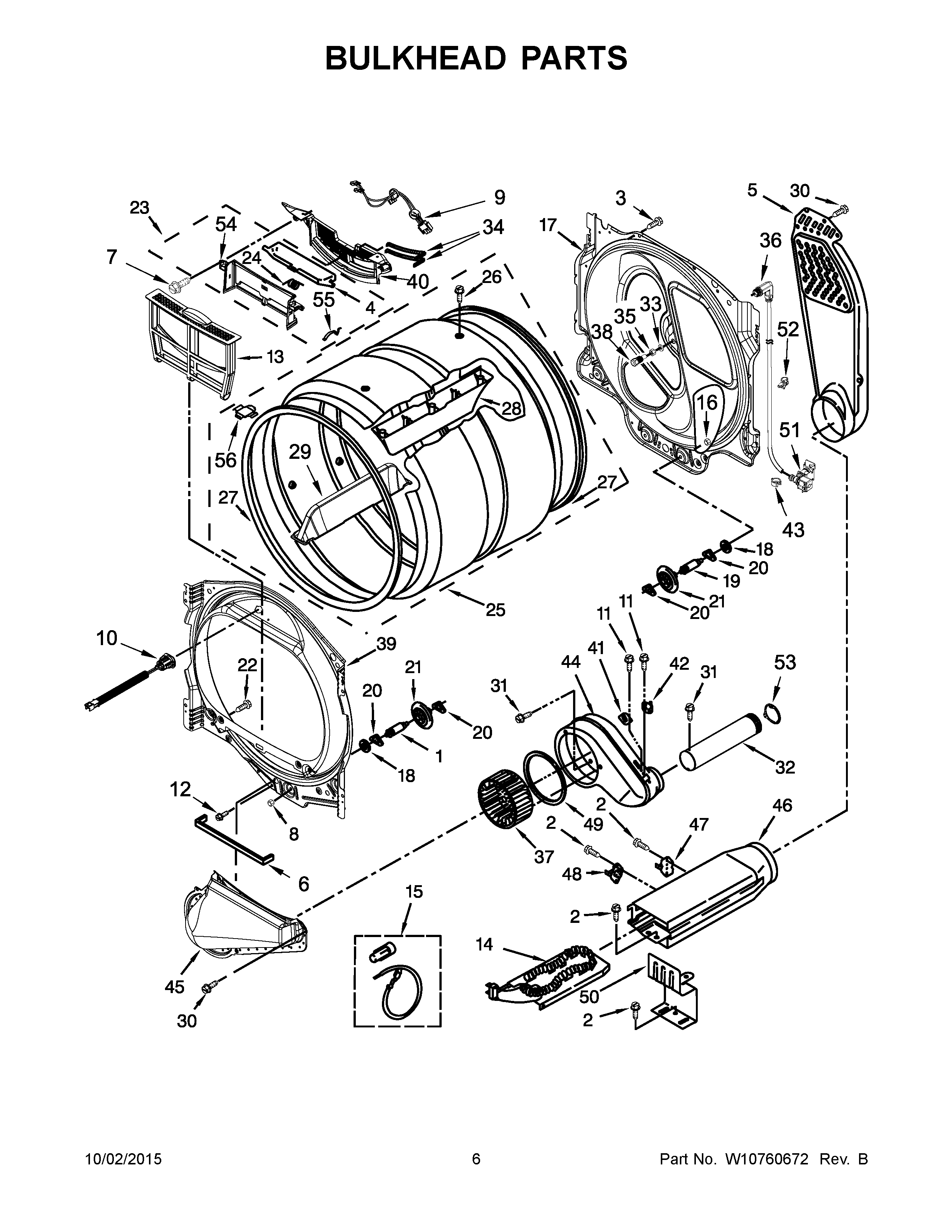

YMEDB855DC0 04 – BULKHEAD PARTSadmin2025-04-26T08:54:20+00:00YMEDB855DC0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | Screw |
| 3 | SCREW |
| 4 | MAY W10608808 |
| 5 | MAY W10613340 |
| 6 | MAY W10701355 |
| 7 | SCREW |
| 8 | NUT, HEX |
| 9 | MAY W10657328 |
| 10 | MAY W10629046 |
| 12 | SCREW |
| 13 | WHITE |
| 14 | MAY W10608823 |
| 15 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | BULKHEAD, REAR |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | MAY W10718190 |
| 23 | MAY W10608812 |
| 24 | MAY W10219015 |
| 25 | ASSEMBLY, DRUM |
| 26 | MAY W10219342 |
| 27 | MAY W10664120 |
| 28 | MAY W10767090 |
| 29 | MAY W10767074 |
| 30 | Screw |
| 31 | SCREW,8-18 X 3/8 |
| 32 | MAY W10608817 |
| 33 | MAY W10044579 |
| 34 | MAY W10608814 |
| 35 | NUT, BRASS |
| 36 | ASSEMBLY, NOZZLE BODY |
| 37 | MAY 697772 |
| 38 | NOZZLE STREAM |
| 39 | MAY W10623481 |
| 40 | MAY W10608813 |
| 41 | FUSE, THERMAL (91C) |
| 42 | THERMISTOR |
| 43 | MAY W10044599 |
| 44 | MAY W10667717 |
| 45 | MAY W10608803 |
| 46 | ASSEMBLY, WELD HEATER BOX |
| 47 | MAY 8318314 |
| 48 | MAY 8557403 |
| 49 | SEAL, PLATE COVER |
| 50 | MAY 8066099 |
| 51 | VALVE ASSEMBLY, WATER INLET |
| 52 | MAY 3391018 |
| 53 | MAY W10344699 |
| 54 | MAY W10608806 |
| 55 | MAY W10608815 |
| 56 | CAP, PLUG |
