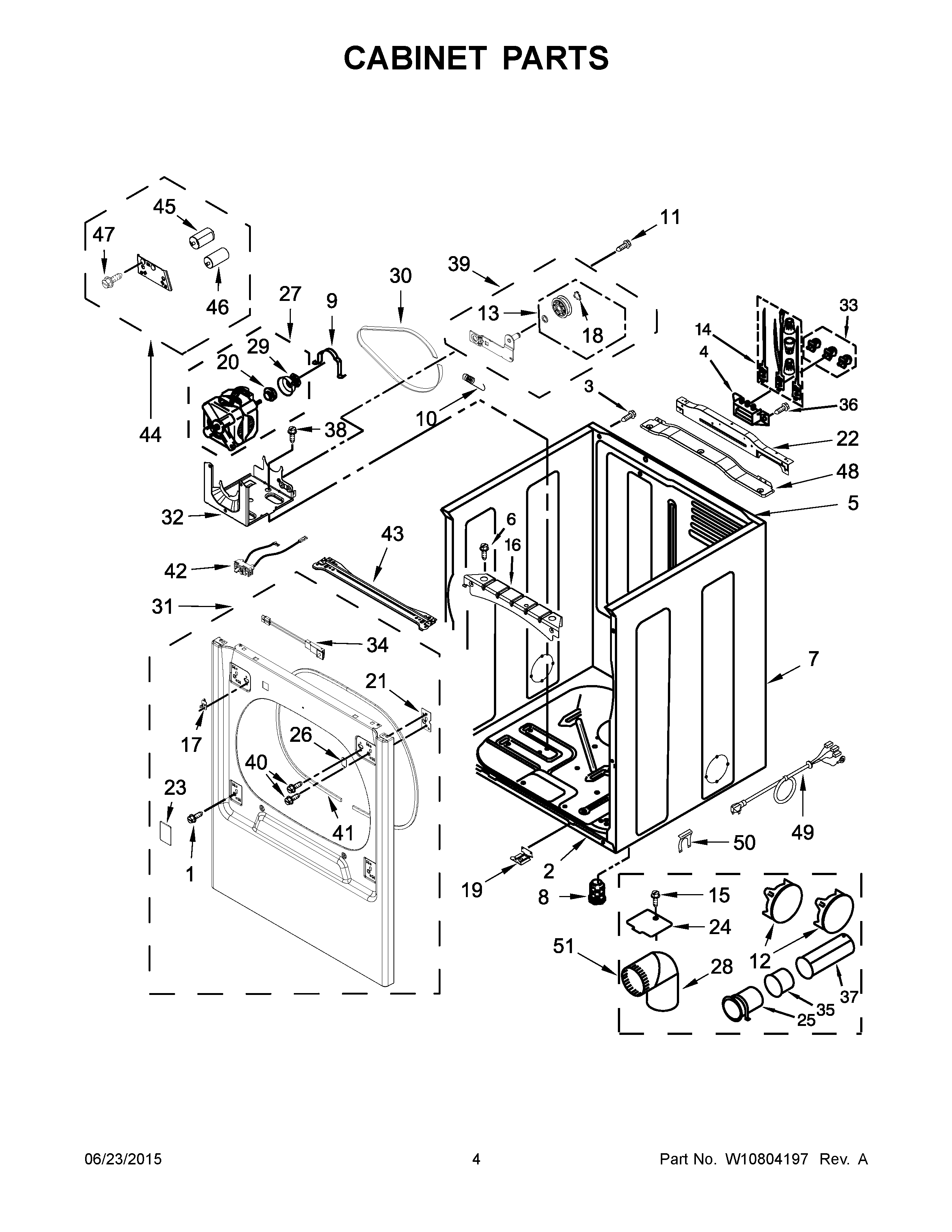

YMEDB855DC1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8533974
2	MAY W10613683
3	MAY W10636208
4	MAY 3397659
5	MAY W10622361
6	Screw
7	CABINET (WHITE (WITHOUT CUTOUT))
7A	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY 49252
12A	MAY W10151499
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10567155
16	MAY W10632348
17	MAY W10775540
18	WASHER, TRI RING
19	MAY W10632347
20	MAY 3393657
21	MAY W10596959
22	MAY W10622391
23A	PLUG, HINGE (CHROME SHADOW)
23	PLUG, HINGE (WHITE)
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	MAY W10111888
27	MAY W10687541
28	MAY 49026
29	PULLEY, MOTOR
30	MAY W10610886
31A	MAY W10777208
31	MAY W10777207
32	MAY W10578053
33	MAY 279393
34	MAY W10459026
35	MAY 8563750
36	SCREW, 10-16 X 1/2
37	PIPE, EXHAUST (LONG)
38	SCREW
39	ASSEMBLY, IDLER
40	MAY 3400805
41	MAY 3387242
42	SWITCH, BROKEN BELT
43	MAY W10722502
44	BRACKET ASSEMBLY
45	CAPACITOR, MOTOR RUN
46	CAPACITOR, MOTOR START
47	NUT
48A	BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
48	BULKHEAD BRACKET, REAR PANEL (WHITE)
49	Power Cord
50	STRAIN-RELIEF CLIP
51	KIT, 4-WAY VENT
