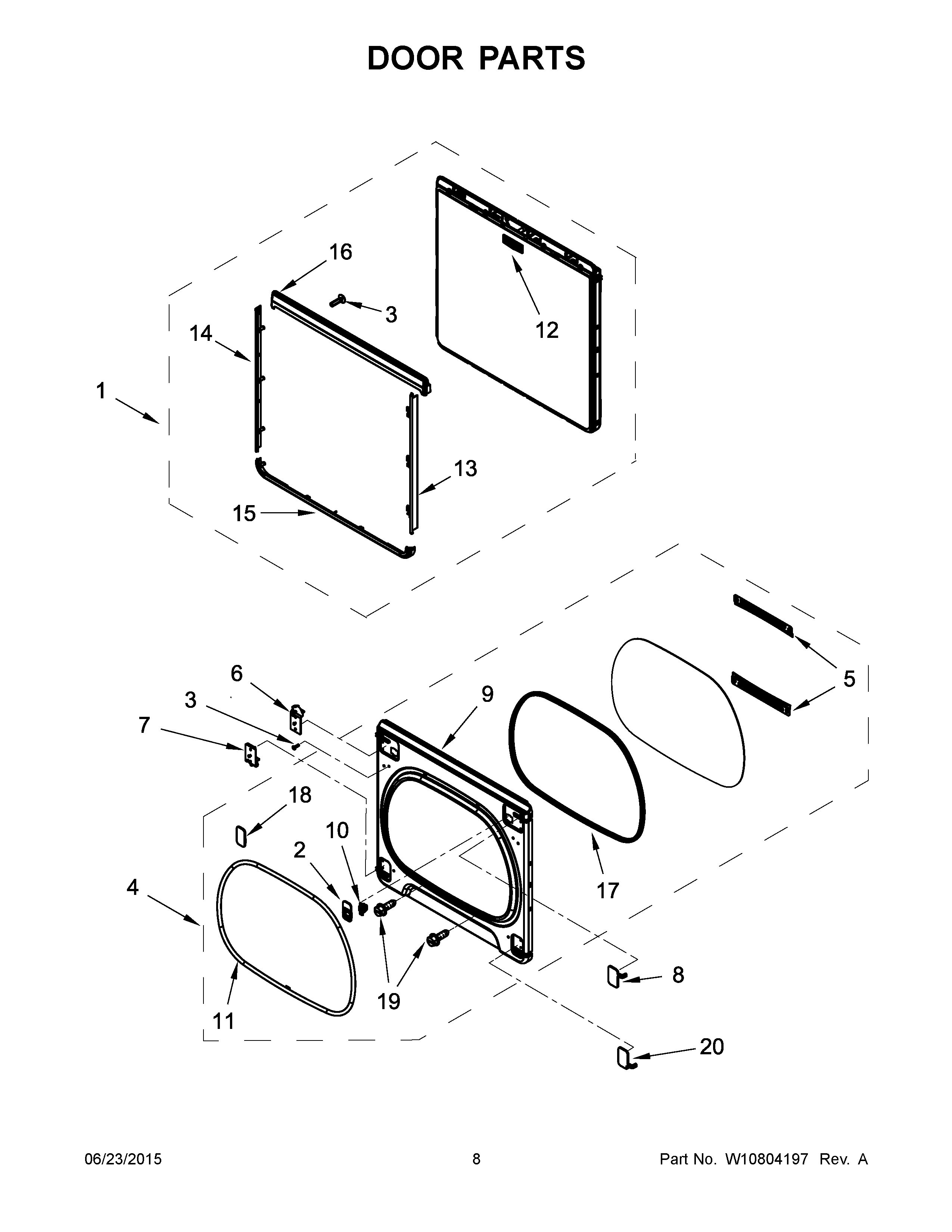

YMEDB855DC1 05 – DOOR PARTS

YMEDB855DC1 05 – DOOR PARTS

Written by

in

YMEDB855DC1 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, OUTER DOOR (CHROME SHADOW)
2ABEZEL, DOOR CATCH (CHROME SHADOW)
2MAY W10631401
3Screw
4AASSEMBLY, INNER DOOR (CHROME SHADOW)
4MAY W10614997
5MAY W10621182
6MAY W10767920
7MAY W10767921
8MAY W10631395
8AHINGE COVER, TOP (CHROME SHADOW)
9AMAY W10614999
9MAY W10614998
10MAY W10610880
11MAY W10763835
12BADGE
13MAY W10631398
14MAY W10631399
15MAY W10631400
16MAY W10608739
17MAY W10726214
18ACOVER, DOOR CATCH (CHROME SHADOW)
18COVER, DOOR CATCH (WHITE)
19MAY 342055
20AHINGE COVER, BOTTOM (CHROME SHADOW)
20MAY W10631396
