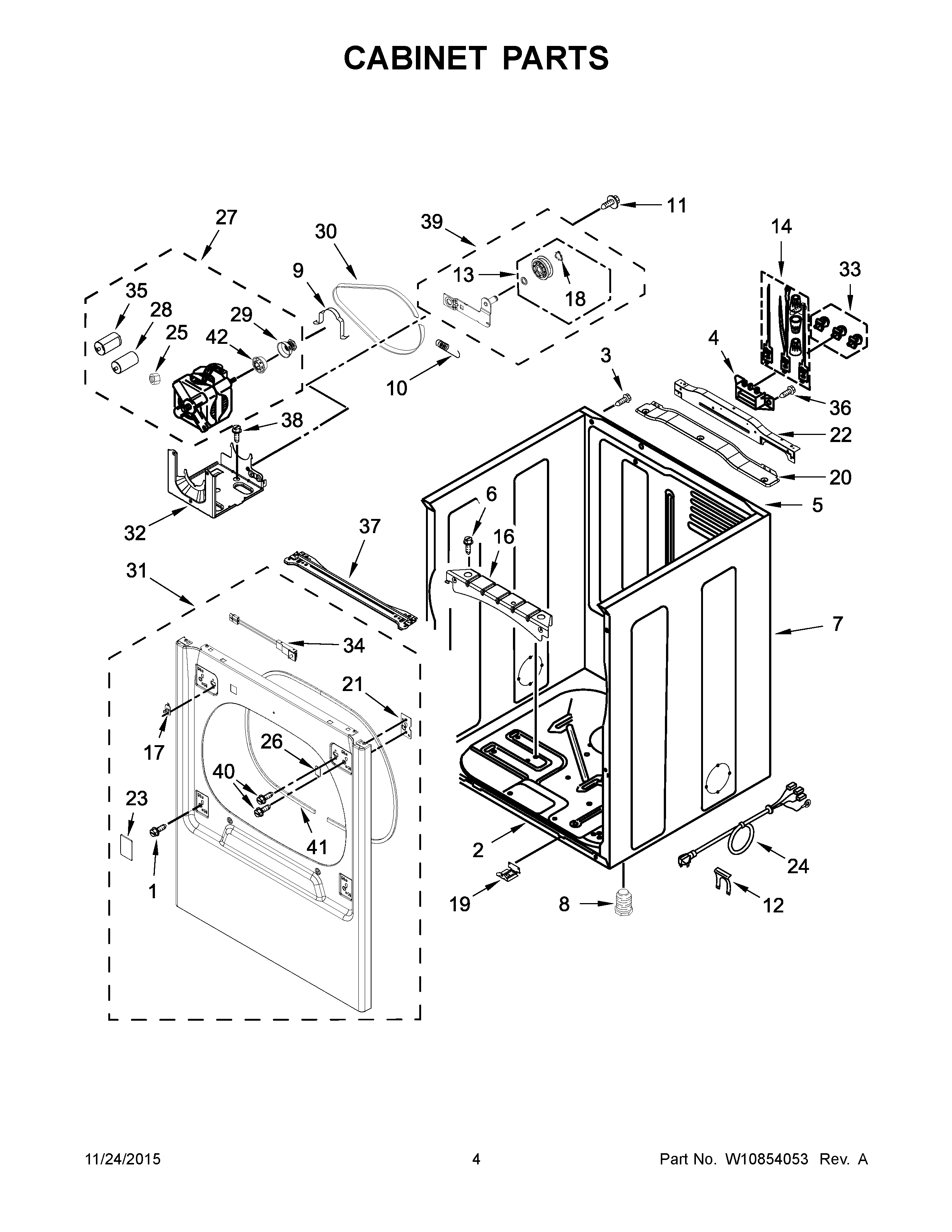

YMEDB855DC2 03 – CABINET PARTS

YMEDB855DC2 03 – CABINET PARTS

Written by

in

YMEDB855DC2 03 – CABINET PARTS

Products

PositionProduct
NIMAY 279810
NIKIT, 4-WAY VENT
1SCREW
2MAY W10613683
3MAY W10636208
4MAY 3397659
5MAY W10824895
6Screw
7APANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
7CABINET (WHITE (WITHOUT CUTOUT))
8MAY 3392100
9CLAMP, MOTOR MOUNT
10MAY W10446781
11SCREW
12STRAIN-RELIEF CLIP
13MAY W10468057
14TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15MAY W10567155
16MAY W10632348
17MAY W10775540
18WASHER, TRI RING
19MAY W10632347
20BULKHEAD BRACKET, REAR PANEL (WHITE)
20ABULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
21MAY W10596959
22MAY W10622391
23PLUG, HINGE (WHITE)
23APLUG, HINGE (CHROME SHADOW)
24Power Cord
25NUT
26MAY W10111888
27MOTOR ASSEMBLY
28CAPACITOR, MOTOR START
29PULLEY, MOTOR
30MAY W10610886
31MAY W10777207
31AMAY W10777208
32MAY W10578053
33MAY 279393
34MAY W10459026
35CAPACITOR, MOTOR RUN
36SCREW, 10-16 X 1/2
37MAY W10722502
38SCREW
39MAY 3388674
40MAY 3400805
41MAY 3387242
42MAY 3393657
