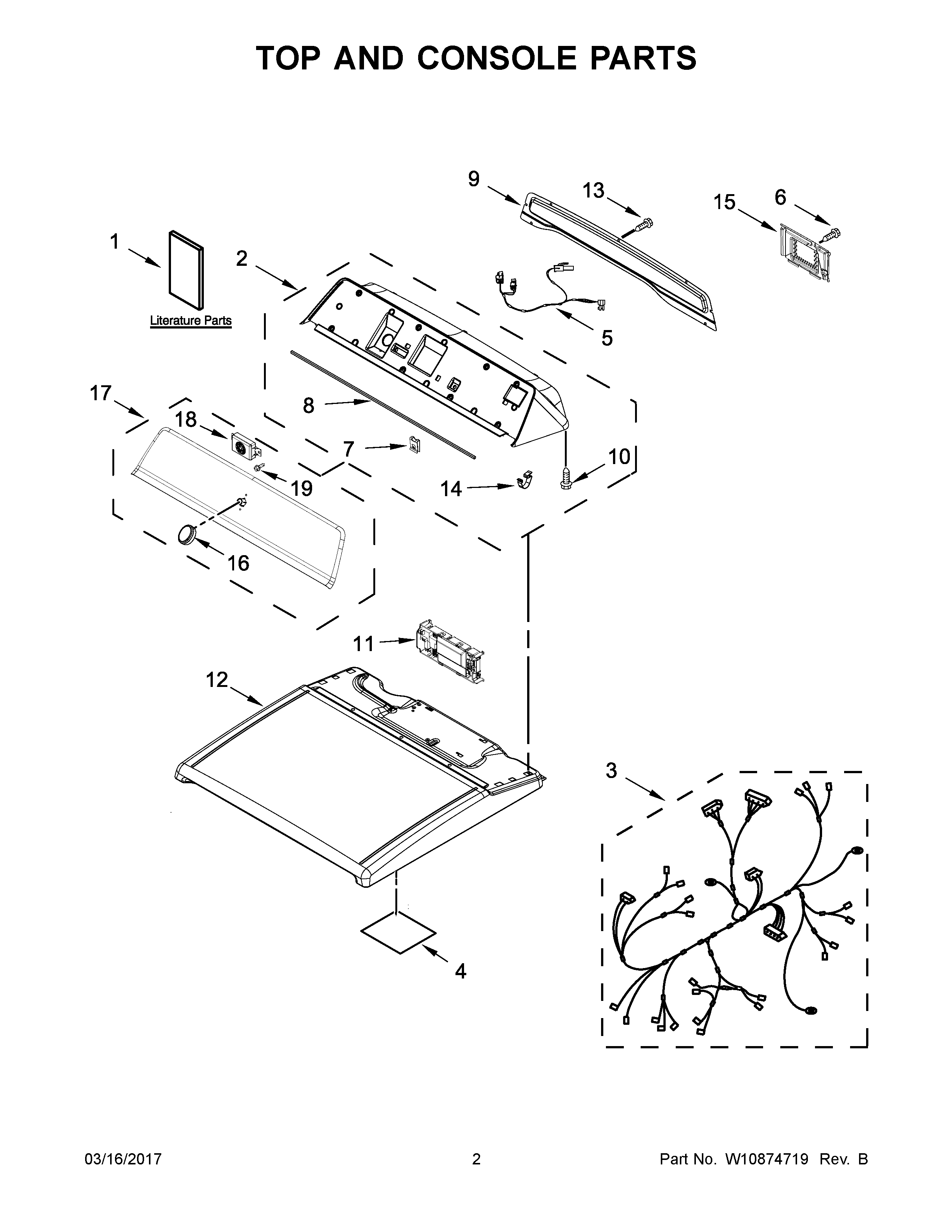

YMEDB855DC3 02 – TOP AND CONSOLE PARTS

YMEDB855DC3 02 – TOP AND CONSOLE PARTS

Written by

in

YMEDB855DC3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BMAY W10777449
1AMAY W10680141
1MAY W10725269
1CMAY W10701469
2AASSEMBLY, CONSOLE (CHROME SHADOW)
2ASSEMBLY, CONSOLE (WHITE)
3MAY W10777439
4MAY W10123956
5MAY W10788429
6SCREW
7NUT, "U"
8MAY W10726632
9MAY W10622402
10MAY W10219342
11CONTROL, ELECTRONIC
12ATOP (CHROME SHADOW)
12MAY W10508981
13SCREW
14MAY 8312709
15MAY W10316167
16ASSEMBLY, CONTROL KNOB (CHROME)
17MAY W10872842
18ASSEMBLY, SPEAKER
19MAY 489470
