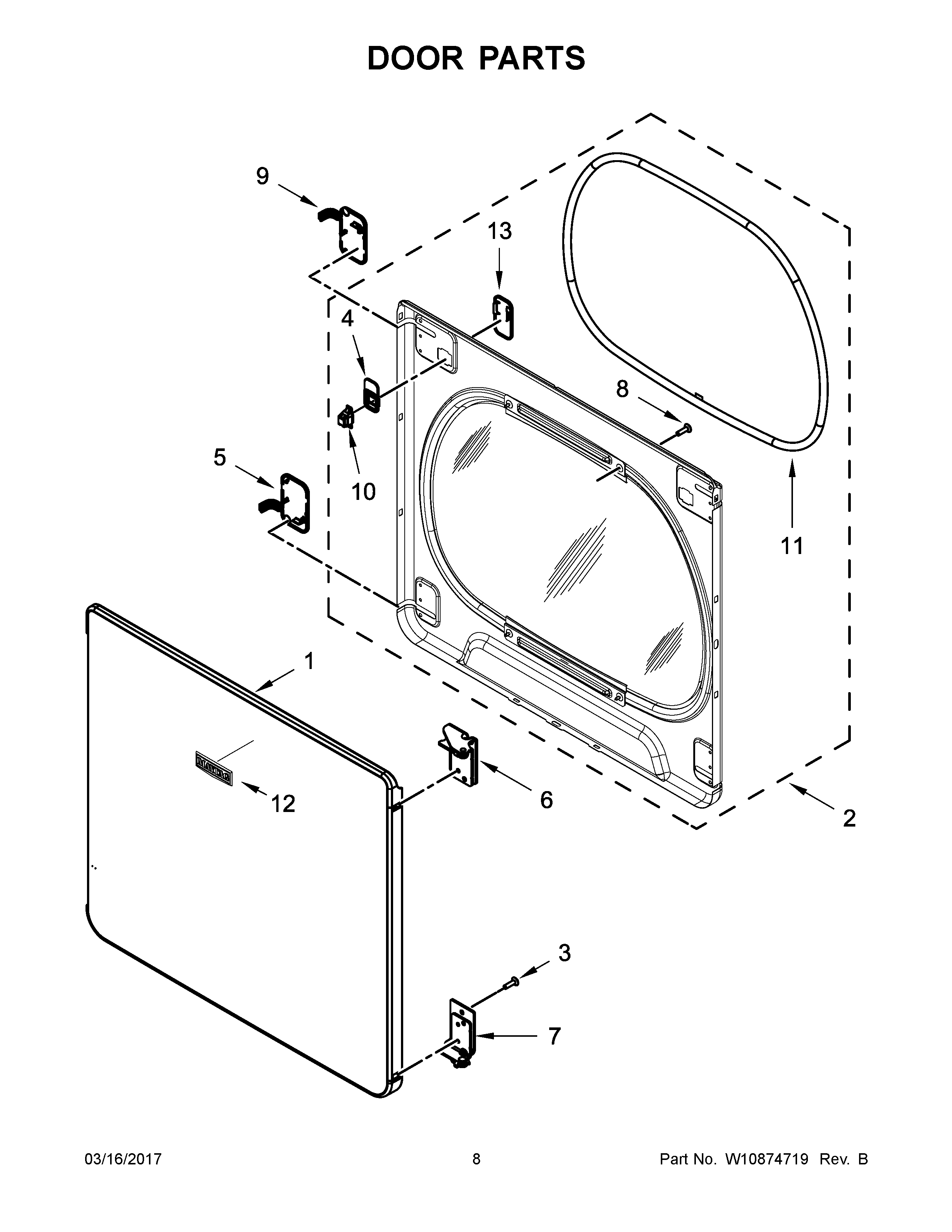

YMEDB855DC3 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, OUTER DOOR (CHROME SHADOW)
2AASSEMBLY, INNER DOOR (CHROME SHADOW)
2MAY W10614997
3Screw
4ABEZEL, DOOR CATCH (CHROME SHADOW)
4MAY W10631401
5MAY W10631396
5AHINGE COVER, BOTTOM (CHROME SHADOW)
6MAY W10783754
7MAY W10783755
8MAY 342055
9AHINGE COVER, TOP (CHROME SHADOW)
9MAY W10631395
10MAY W10610880
11MAY W10763835
12BADGE
13COVER, DOOR CATCH (WHITE)
13ACOVER, DOOR CATCH (CHROME SHADOW)
