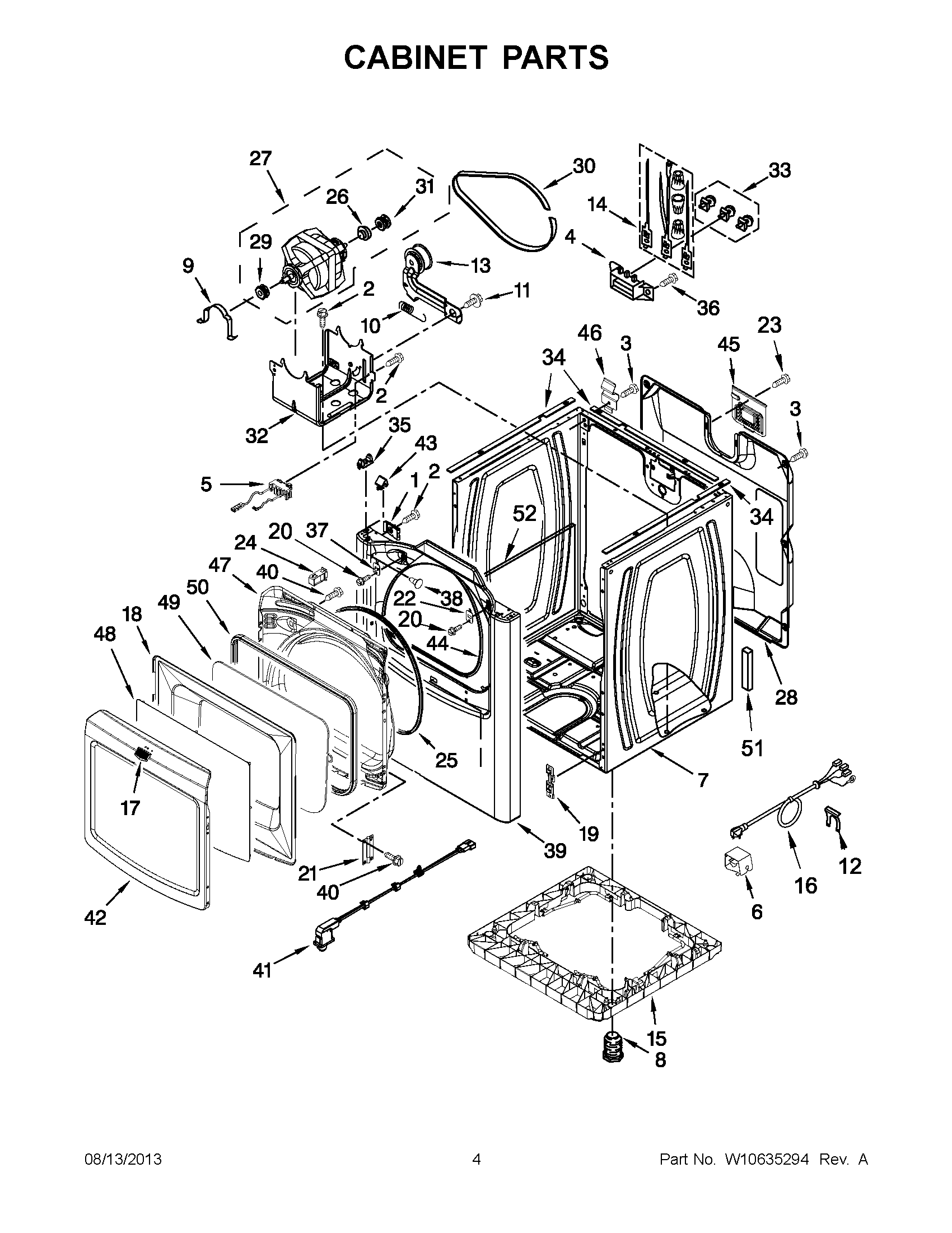

YMEDB880BW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Clip, Ground
2	SCREW
3	Screw
4	MAY 3397659
5	MAY W10411937
6	Cable Tie
7	Cabinet (Includes Item 51 )
8	MAY W10363894
9	MAY 660658
10	MAY W10446781
11	SCREW
12	STRAIN-RELIEF CLIP
13	IDLER ASSEMBLY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	RISER, FULL
16	Power Cord
17	MAY W10492808
18	BEZEL, DOOR
19	MAY 3394083
20	MAY 3400805
21	HINGE ASSEMBLY (WHITE)
22	MAY W10111888
23	MAY 8533974
24	MAY W10111905
25	MAY W10221653
26	MAY 3393657
27	MAY W10460374
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	MAY W10136930
32	MAY 8547158
33	MAY 279393
34	SEAL, FOAM
35	LOCATOR, SNAP-DOWN
36	SCREW, 10-16 X 1/2
37	Strike, Door
38	MAY W10144494
39	FRONT PANEL (WHITE)
40	MAY 342055
41	MAY W10350909
42	MAY W10252478
43	Lock-Top Front (2)
44	MAY W10044490
45	MAY W10110241
46	MAY 238088
47	Door, Inner
48	WINDOW, OUTER
49	MAY W10111857
50	MAY W10111859
51	MAY 3350013
52	MAY W10123956
