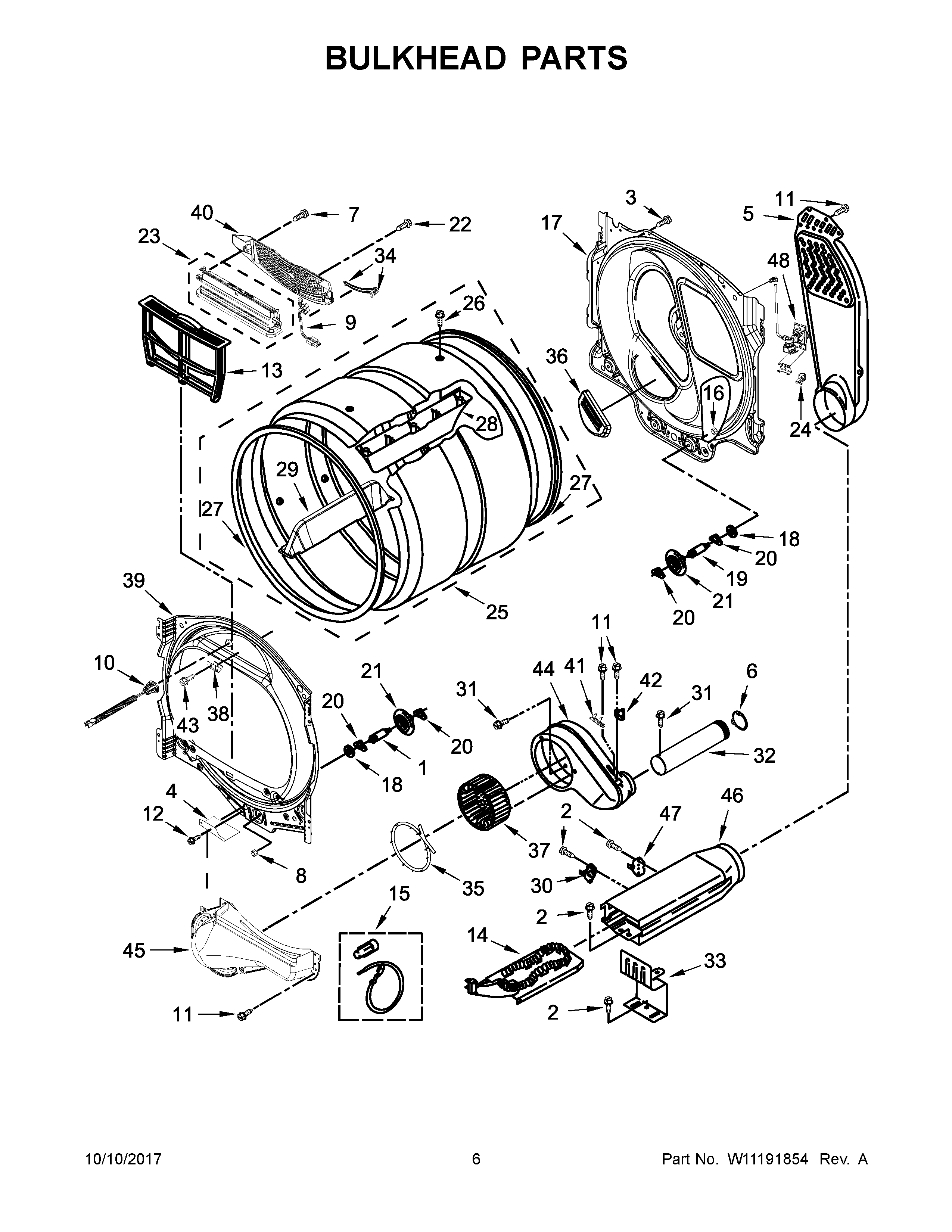

YMEDB955FC1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	Screw
3	MAY W10636208
4	SHIELD, BLOWER HOUSING
5	DUCT, INLET ASSEMBLY
6	MAY W10344699
7	SCREW
8	NUT, HEX
9	MAY W10657328
10	MAY W10761356
11	Screw
12	SCREW
13	WHITE
14	MAY W10608823
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10712886
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10718190
23	MAY W10608812
24	MAY 3391018
25	MAY W10626235
26	MAY W10219342
27	MAY W10664120
28	BAFFLE, DRUM – LOW
29	BAFFLE, DRUM – HIGH
30	MAY 8557403
31	SCREW,8-18 X 3/8
32	MAY W10608817
33	MAY 8066099
34	MAY W10608814
35	MAY W10868675
36	SENSOR ASSEMBLY, QUAD BULKHEAD
37	MAY 697772
38	MAY W10627446
39	MAY W10861007
40	MAY W10608813
41	FUSE, THERMAL (91C)
42	THERMISTOR
43	SCREW
44	MAY W10667717
45	MAY W10868982
46	ASSEMBLY, WELD HEATER BOX
47	KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
48	VALVE AND HOSE ASSEMBLY
