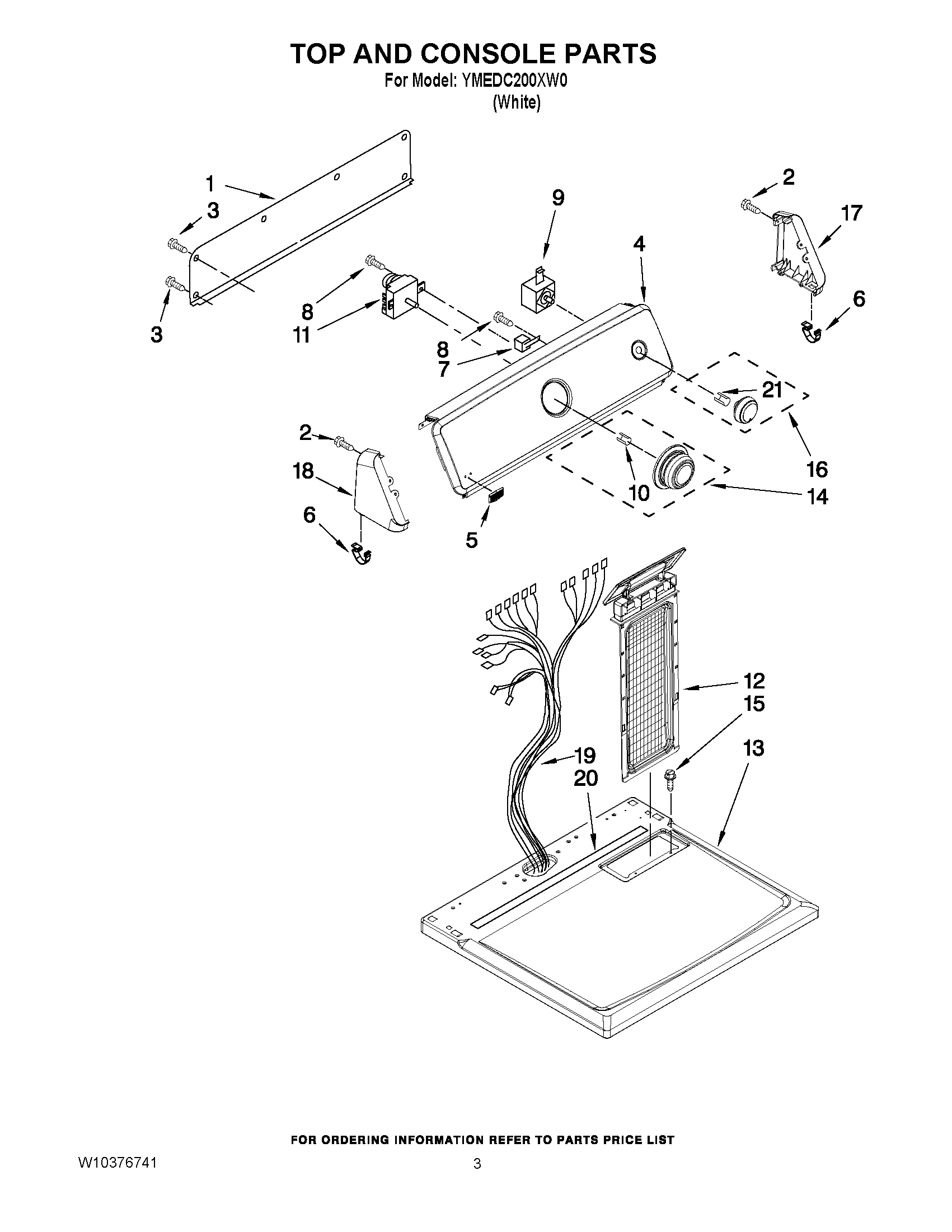

YMEDC200XW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10103406
2	MAY 359625
3	Screw
4	ASSEMBLY, CONSOLE PANEL & BRACKET
5	MAY W10323734
6	MAY 8312709
7	MAY 694419
8	MAY 8533971
9	MAY 3404233
10	Spring, Clip Knob
11	MAY 8299779
12	Screen, Lint
13	MAY W10225059
14	ASSEMBLY, KNOB & DIAL (GREY)
15	SCREW
16	ASSEMBLY, CONTROL KNOB (GREY)
17	Endcap (R.H.)
18	Endcap (L.H.)
19	HARNESS, MAIN
20	MAY W10316616
21	CLIP, SPRING
