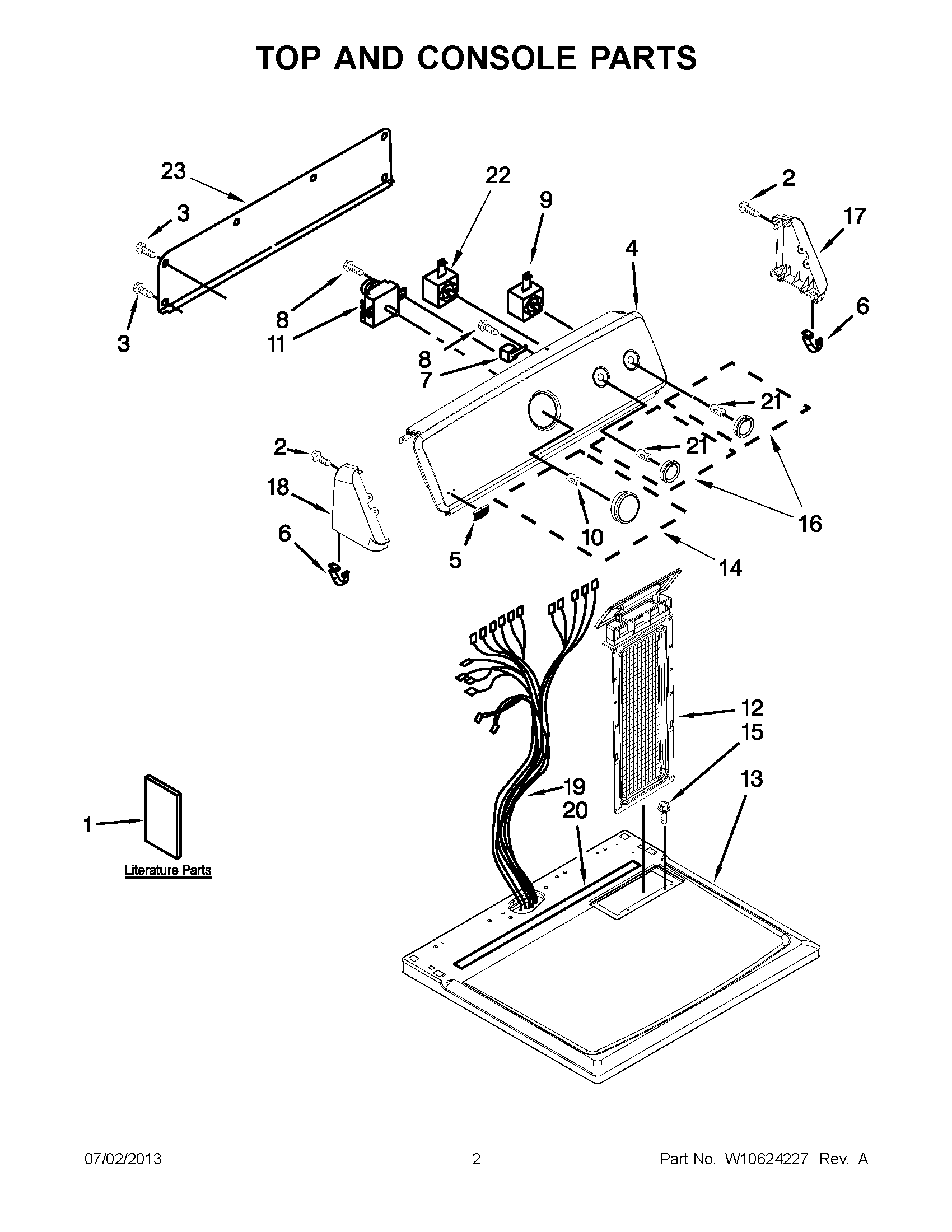

YMEDC300BW0 01 – TOP AND CONSOLE PARTS

YMEDC300BW0 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDC300BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10562354
1MAY W10185986
1MAY W10562360
2MAY 3348629
3Screw
4CONSOLE ASSEMBLY (WHITE)
5MAY W10199708
6MAY 8312709
7MAY 694419
8MAY 8533971
9MAY W10117655
10Spring, Clip Knob
11TIMER, 60 HZ.
12Screen, Lint
13MAY W10225059
14MAY W10558463
15SCREW
16MAY W10562155
17Endcap (R.H.)
18Endcap (L.H.)
19MAY W10577882
20MAY W10316616
21CLIP, SPRING
22Switch, Temperature
23MAY W10103406
