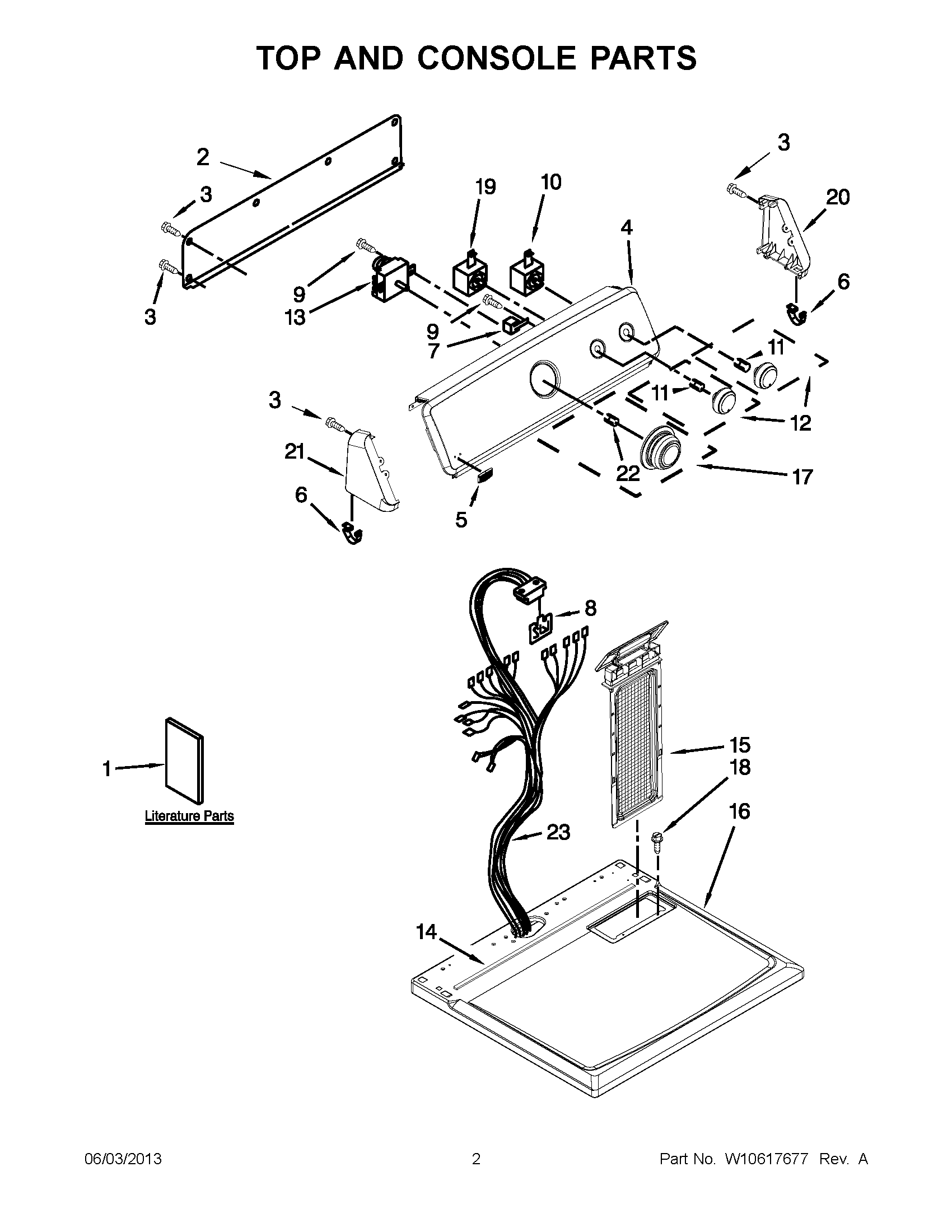

YMEDC300XW1 01 – TOP AND CONSOLE PARTS

YMEDC300XW1 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDC300XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10514185
1MAY W10096990
1MAY W10346860
2MAY W10103406
3Screw
4ASSEMBLY, CONSOLE PANEL & BRACKET
5MAY W10323734
6MAY 8312709
7MAY 694419
8MAY W10476828
9MAY 3348629
10MAY W10117655
11CLIP, SPRING
12ASSEMBLY, CONTROL KNOB (GREY)
13TIMER ASSEMBLY (60 HZ.)
14MAY W10316616
15Screen, Lint
16MAY W10225059
17ASSEMBLY, KNOB & DIAL (GREY)
18SCREW
19MAY 8578354
20Endcap (R.H.)
21Endcap (L.H.)
22Spring, Clip Knob
23HARNESS, WIRING
