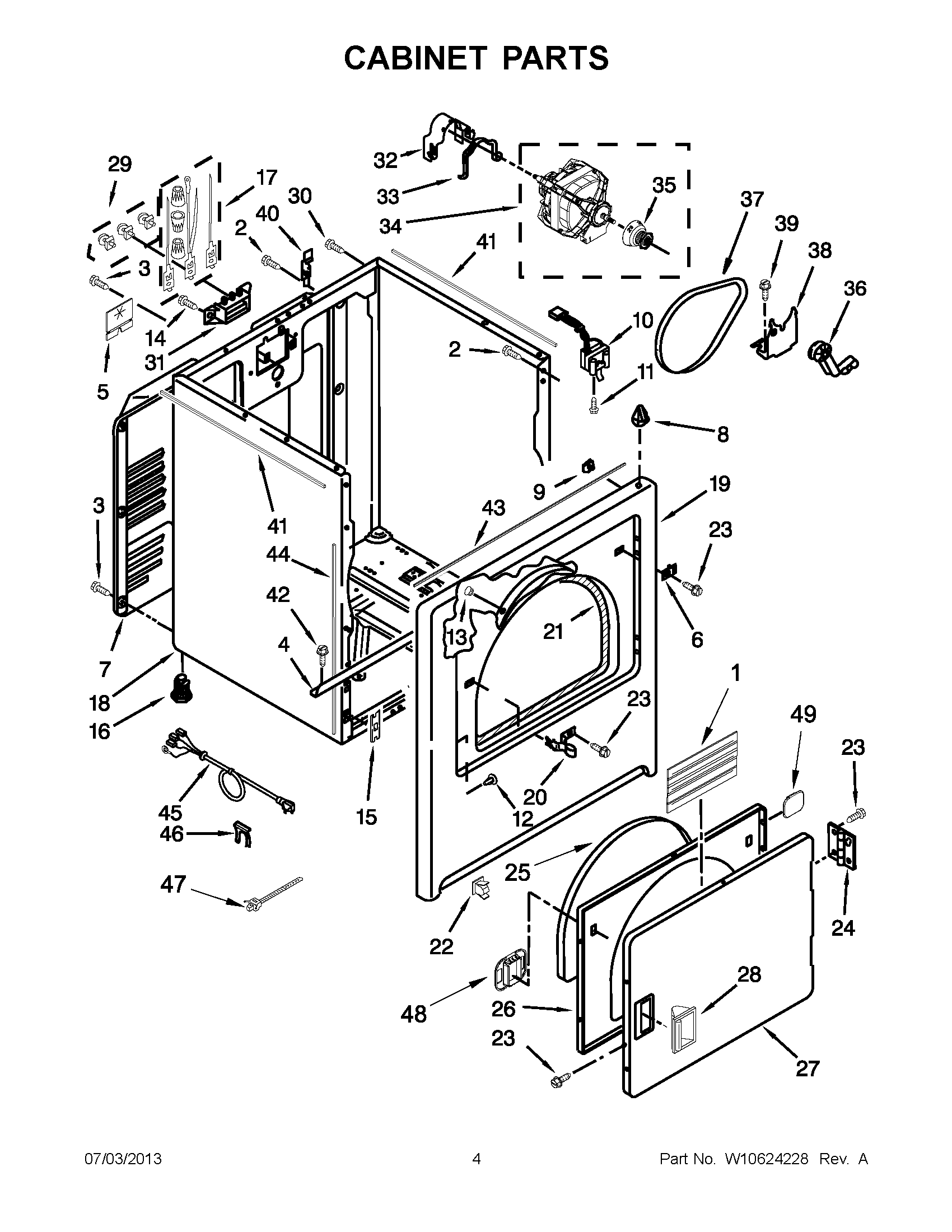

YMEDC400BW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10532676
2	SCREW
3	Screw
4	MAY W10236073
5	MAY W10571619
6	PLUG, STRIKE
7	MAY W10571724
8	MAY 8066092
9	Clip, Ground
10	SWITCH, DOOR
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW
15	MAY 3394083
16	MAY W10561321
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	SEAL-SPILL GUARD
19	Panel Front Assembly
20	Strike, Door
21	SEAL & BEARING ASSEMBLY
22	MAY W10529190
23	MAY 342055
24	ASSEMBLY, HINGE AND PIN
25	MAY W10389572
26	DOOR, INNER
27	DOOR FRONT
28	Handle, Door
29	MAY 279393
30	MAY 8533974
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	ASSEMBLY, MOTOR
35	Pulley, Motor
36	IDLER ASSEMBLY
37	BELT, DRIVE
38	MAY 348780
39	BOLT
40	Hinge, Top
42	SCREW
43	SEAL, SPILL GUARD
44	SEAL, FOAM
45	Power Cord
46	STRAIN-RELIEF CLIP
47	Cable Tie
48	BEZEL, DOOR CATCH
49	COVER, DOOR CATCH
