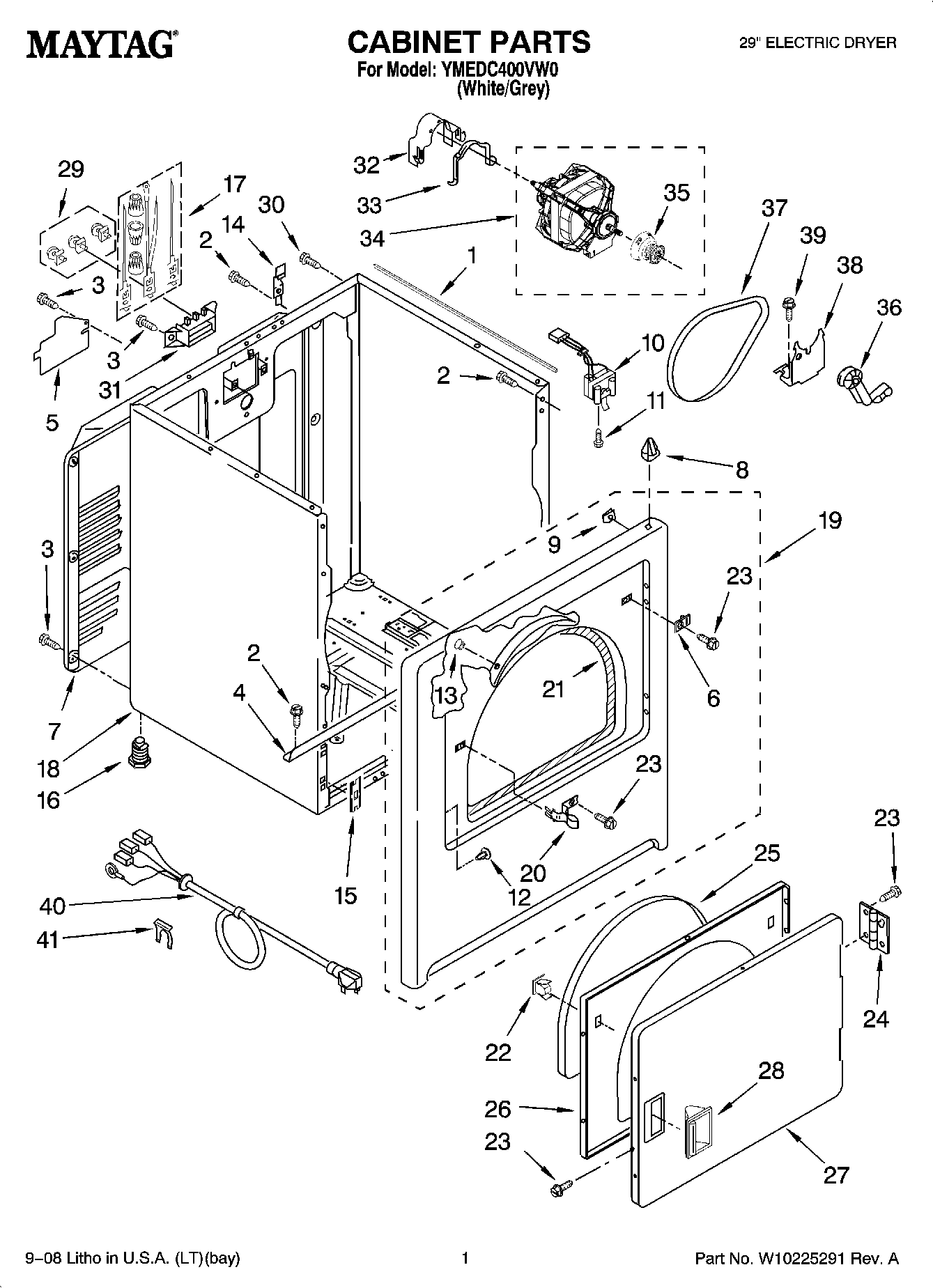

YMEDC400VW0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10174643
2	SCREW
3	Screw
4	MAY 8541400
5	Cover, Terminal Block
6	PLUG-STRIKE
7	MAY 3396805
8	LOCK, FRONT TOP
9	Clip, Ground
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	Hinge, Top
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Panel, Front (White)
20	Strike, Door
21	MAY 3406129
22	DOOR CATCH ASSEMBLY
23	MAY 342055
24	HINGE AND PIN ASSEMBLY
25	MAY 3405246
26	Door, Rear
27	DOOR FRONT
28	Handle, Door
29	MAY 279393
30	Screw, 8-18 x 5/8 (External Ground)
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	Motor Assembly
35	Pulley, Motor
36	IDLER ASSEMBLY
37	BELT, DRIVE
38	MAY 348780
39	BOLT
40	Power Cord
41	STRAIN-RELIEF CLIP
