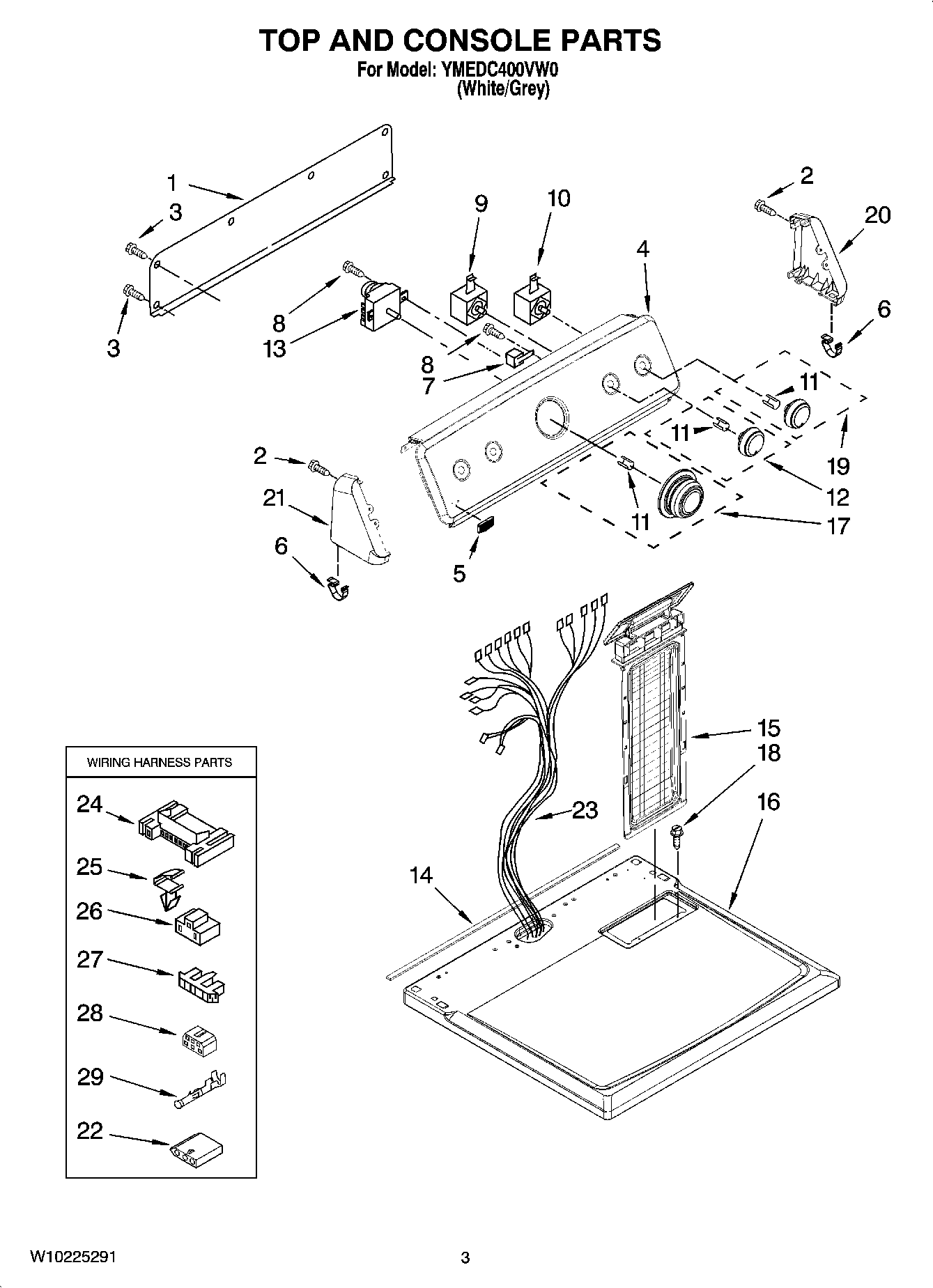

YMEDC400VW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10103406
2	MAY 359625
3	Screw
4	MAY W10086736
5	MAY W10101390
6	MAY 8312709
7	MAY 694419
8	MAY 8533971
9	Switch, Wrinkle Guard
10	MAY 3977456
11	CLIP, SPRING
12	MAY W10180218
13	MAY 8299779
14	Seal, Foam Console Bracket
15	Screen, Lint
16	Top
17	MAY W10180219
18	SCREW
19	Knob Assembly Push-To-Start (White)
20	Endcap (R.H.)
21	Endcap (L.H.)
22	MAY 3936144
23	MAY W10205243
24	CONNECTOR (MOTOR)
25	CLIP, HARNESS
26	Connector (PTS) Relay
27	Connector-Timer
28	Connector
29	Terminal
