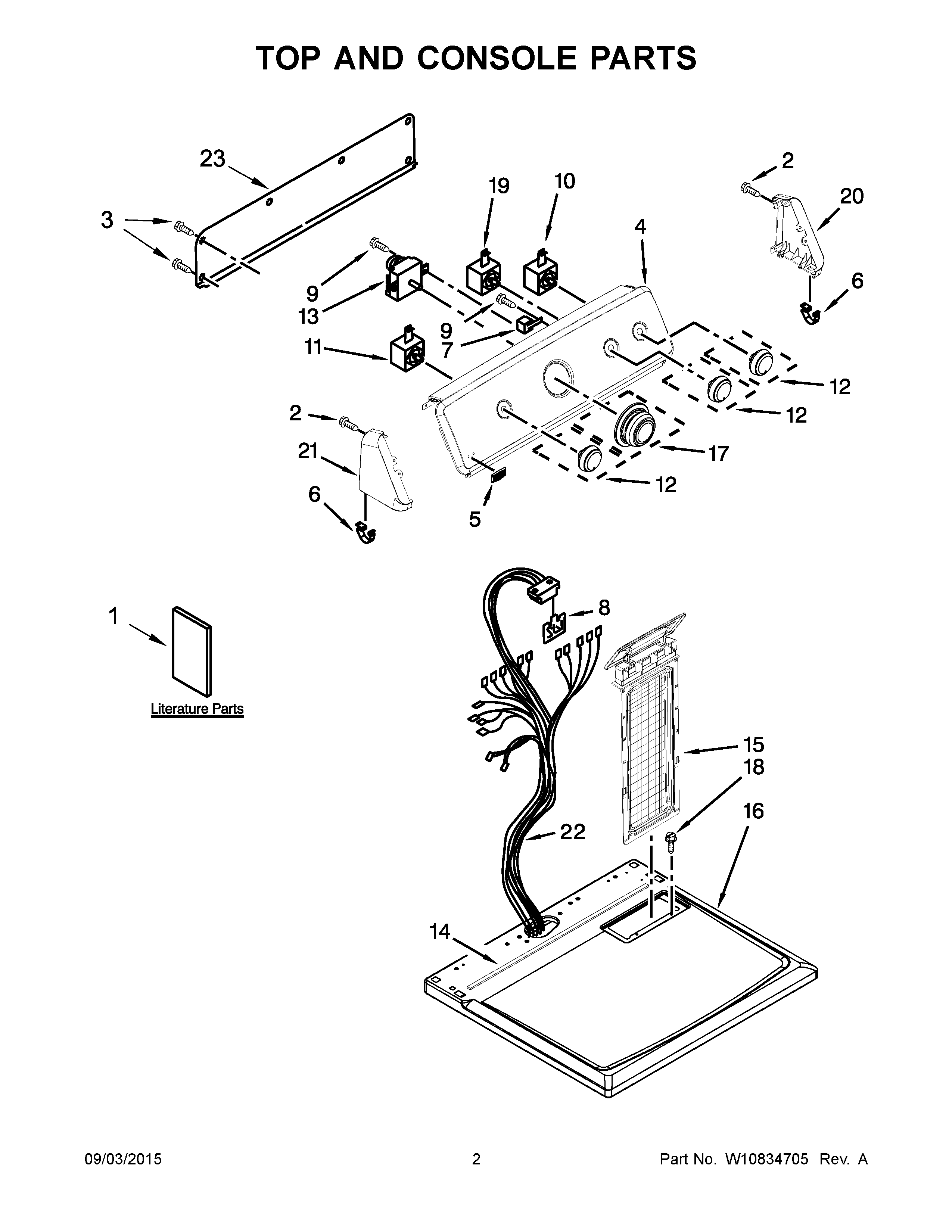

YMEDC415EW1 02 – TOP AND CONSOLE PARTS

YMEDC415EW1 02 – TOP AND CONSOLE PARTS

Written by

in

YMEDC415EW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1C	MAY W10781872
1B	MAY W10562360
1A	MAY W10185994
1	MAY W10562354
2	MAY 8533971
3	Screw
4	MAY W10692612
5	BADGE
6	MAY 8312709
7	MAY 694419
8	MAY W10476828
9	MAY 3348629
10	MAY W10117655
11	MAY 8578354
12	MAY W10562155
13	MAY W10185992
14	MAY W10316616
15	MAY W10717210
16	MAY 8559800
17	MAY W10558463
18	SCREW
19	MAY 3405156
20	Endcap (R.H.)
21	Endcap (L.H.)
22	MAY W10640714
23	MAY W10103406
