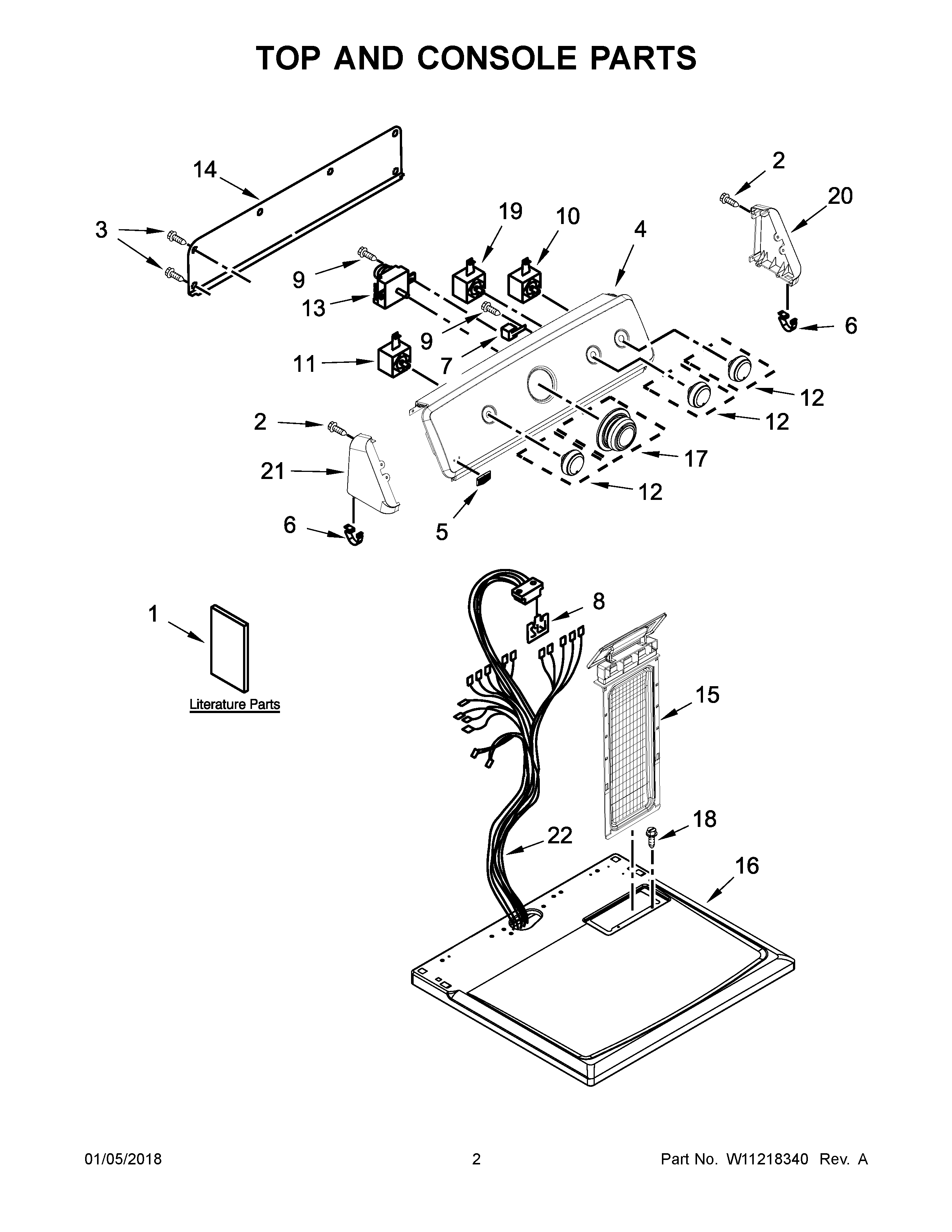

YMEDC465HW0 02 – TOP AND CONSOLE PARTS

YMEDC465HW0 02 – TOP AND CONSOLE PARTS

Written by

in

YMEDC465HW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CMAY W11159599
1MAY W11185722
1BMAY W10848818
1AMAY W10185994
2MAY 8533971
3Screw
4MAY W11178666
5BADGE
6MAY 8312709
7MAY 694419
8MAY W10476828
9MAY 3348629
10MAY W10117655
11MAY 8578354
12MAY W10562155
13MAY W10185992
14MAY W10103406
15MAY W10717210
16MAY 8559800
17MAY W10558463
18SCREW
19MAY 3405156
20Endcap (R.H.)
21Endcap (L.H.)
22MAY W10640714
