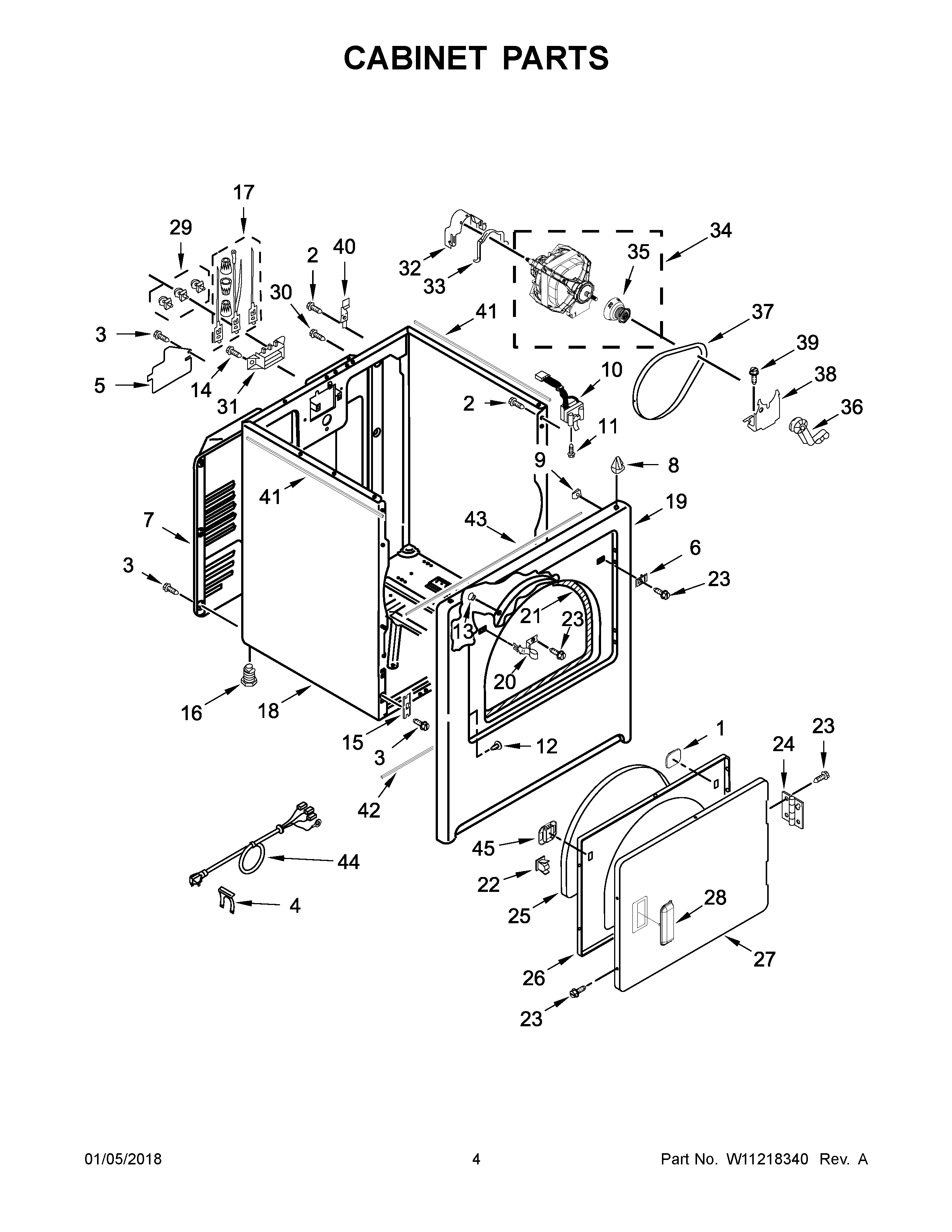

YMEDC465HW0 03 – CABINET PARTS

Products

Position	Product
1	COVER, DOOR CATCH
2	SCREW
3	Screw
4	STRAIN-RELIEF CLIP
5	MAY W10571619
6	PLUG, STRIKE
7	MAY W10571724
8	MAY 8066092
9	Clip, Ground
10	SWITCH, DOOR
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW
15	CLIP, FRONT PANEL
16	MAY W10561321
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	PANEL, FRONT (WHITE)
20	Strike, Door
21	ASSEMBLY, SEAL AND BEARING
22	MAY W10610880
23	MAY 342055
24	ASSEMBLY, HINGE AND PIN
25	SEAL, DOOR
26	DOOR, INNER
27	DOOR, FRONT (WHITE)
28	HANDLE, DOOR (WHITE)
29	MAY 279393
30	SCREW
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	ASSEMBLY, MOTOR
35	Pulley, Motor
36	IDLER ASSEMBLY
37	BELT, DRIVE
38	MAY 348780
39	BOLT
40	Hinge, Top
41	SEAL, FOAM
42	MAY W11172310
43	SEAL, SPILL GUARD
44	CORD, POWER
45	BEZEL, DOOR CATCH
