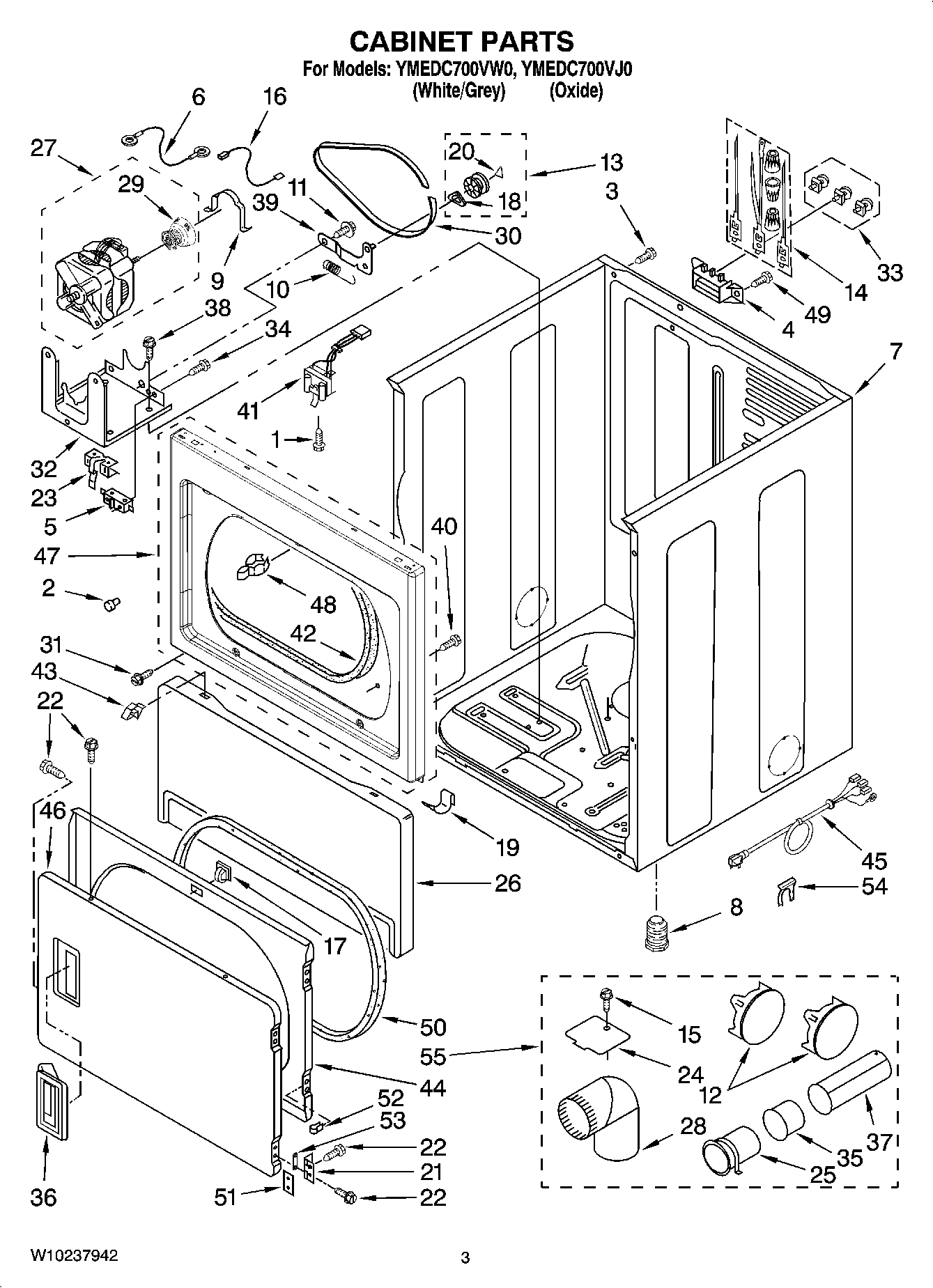

YMEDC700VJ0 02 – CABINET PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	MAY 8533974
4	MAY 3397659
5	MAY 3394881
6	Wire, Jumper (Broken Belt Switch)
7	MAY 8310656
7	MAY W10212721
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY W10151499
12	MAY 697750
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 3390646
16	MAY W10167612
17	MAY 3392538
18	WASHER, TRI RING
19	Clip (2)
20	MAY W10121334
21	Hinge & Pin Assembly (2)
22	MAY 342055
23	MAY 8066120
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	MAY W10212779
26	Toe Panel (Includes Item. 2) (White)
27	Motor Assembly 60 HZ.
28	MAY 49026
29	Pulley 60 HZ.
30	MAY W10112954
31	SCREW
32	MAY 3387118
33	MAY 279393
34	Screw, 6-20 x 1-1/16
35	MAY 8563750
36	MAY W10212775
36	Handle, Door (White)
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	SCREW
41	Switch, Door
42	MAY 3387242
43	RETAINER
44	MAY 3392563
45	Power Cord
46	MAY W10207719
46	MAY 3387872
47	MAY W10212762
47	Upper Front Panel (White)
48	MAY 696144
49	SCREW, 10-16 X 1/2
50	MAY 3390735
51	MAY 3390902
52	Nut, Inner Door (4)
53	PLUG, HINGE SCREW
54	STRAIN-RELIEF CLIP
55	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
55	MAY 279818
