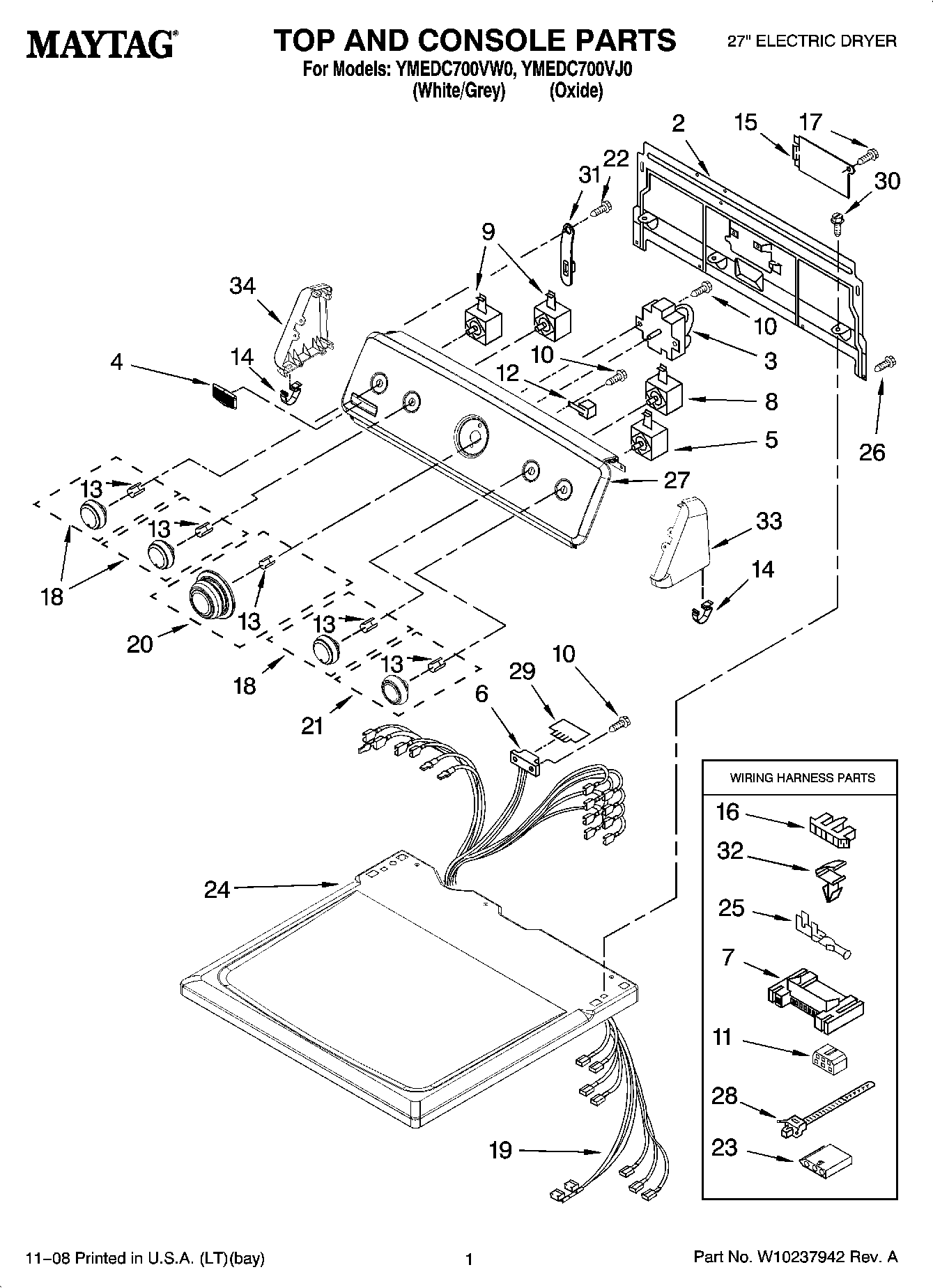

YMEDC700VW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
2	MAY 8317305
3	TIMER ASSEMBLY (60 HZ.)
4	MAY W10103431
4	MAY W10101390
5	Switch, Push-To-Start
6	MAY 3391885
7	CONNECTOR (MOTOR)
8	MAY 8578352
9	MAY 3405156
10	MAY 8533971
11	Connector
12	MAY 694419
13	CLIP, SPRING
14	MAY 8312709
15	MAY 8576583
16	Connector-Timer
17	Screw, 8-18 x 3/8
18	Knob, Control (3)
18	MAY W10180218
19	MAY W10206521
20	MAY W10180219
20	MAY W10112584
21	Knob Assembly Push-To-Start (White)
21	MAY W10112586
22	SCREW,8-18 X 3/8
23	MAY 3936144
24	MAY 8541355
24	MAY W10212718
25	Terminal
26	Screw
27	MAY W10086741
27	MAY W10086738
28	MAY 3391018
29	MAY 8558178
30	SCREW
31	Strap, Console
32	CLIP, HARNESS
33	MAY W10101397
33	Endcap (R.H.)
34	Endcap (L.H.)
34	MAY W10101398
