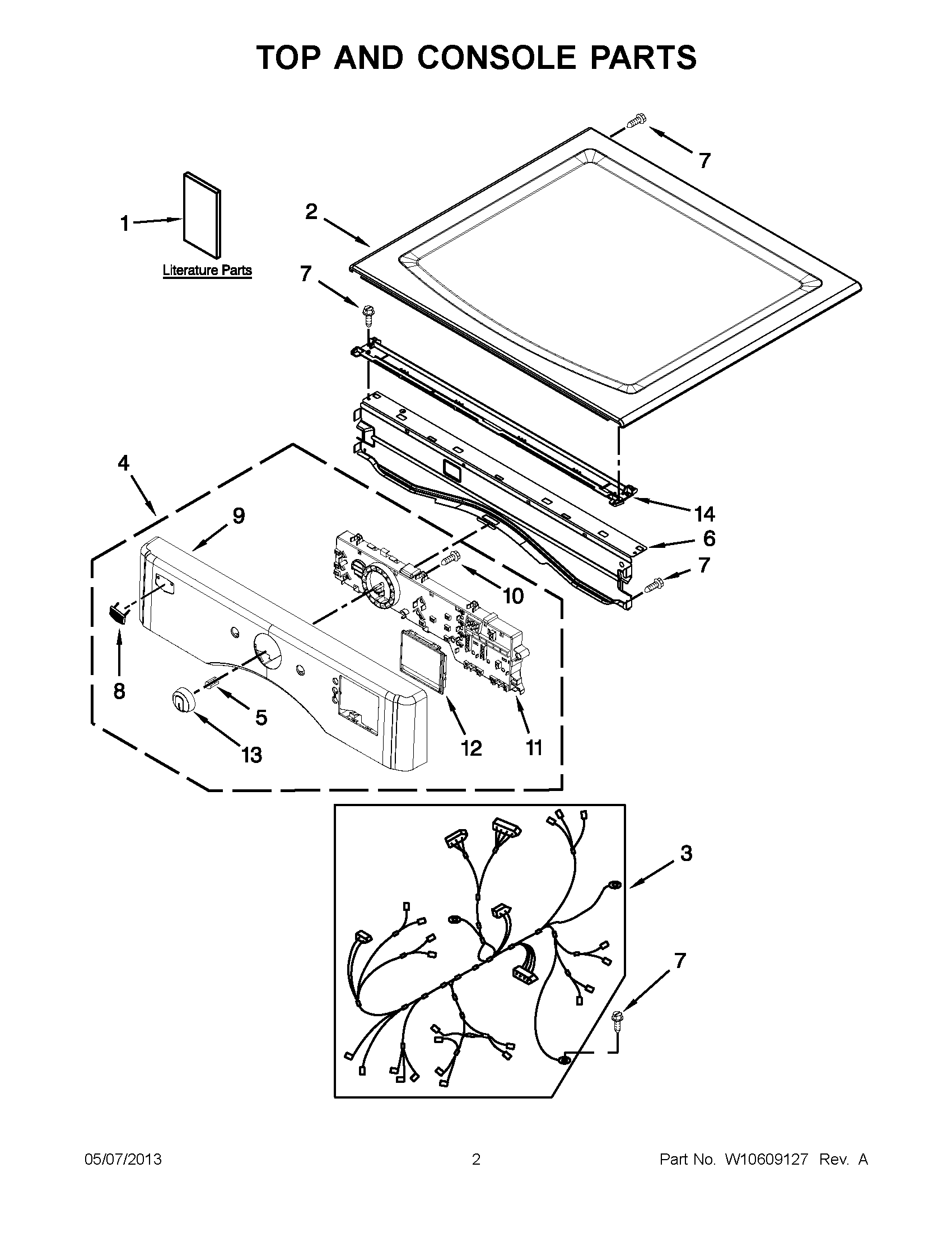

YMEDE201YW1 01 – TOP AND CONSOLE PARTS

YMEDE201YW1 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDE201YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10392462
1HEATER BOX
1MAY W10443109
1MAY W10443045
2TOP (WHITE)
3MAY W10555108
4CONSOLE PANEL, ASSEMBLY
5CLIP, SPRING
6MAY 8565237
7SCREW
8BADGE (CHROME)
9CONSOLE PANEL
10SCREW, TOP
11USER INTERFACE ASSEMBLY
12MAY W10215794
13MAY W10251381
14CHANEL, WATER
