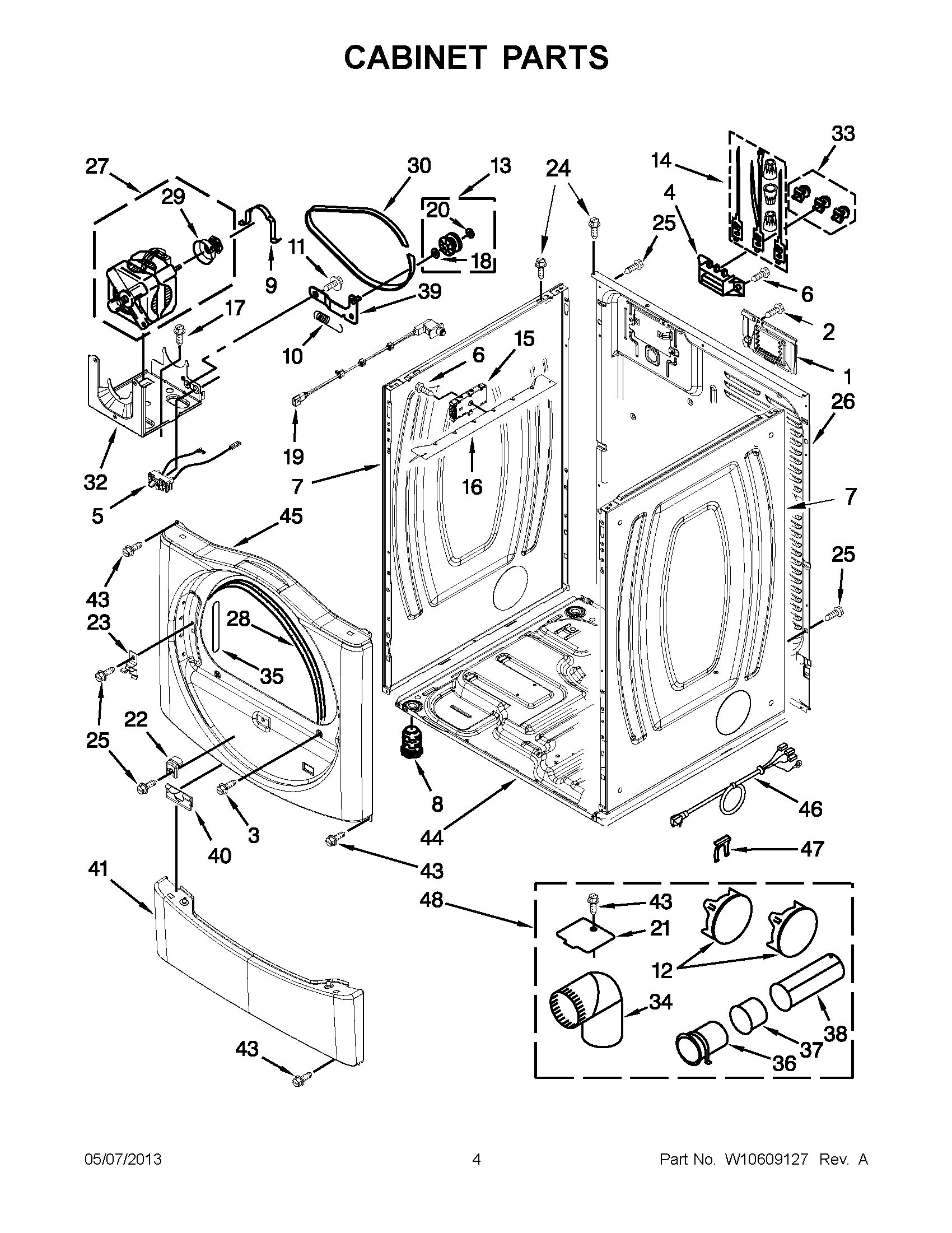

YMEDE201YW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10286180
2	MAY 8533974
3	SCREW
4	MAY 3397659
5	MAY W10411936
6	SCREW
7	MAY W10542714
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10450081
16	Bracket, Control
17	SCREW
19	DOOR SWITCH ASSEMBLY
20	MAY W10121334
21	MAY W10354249
22	MAY 8580015
23	STRIKE, DOOR
24	MAY 359625
25	SCREW, 10-16 X 1/2
26	MAY 8565059
27	MAY W10317045
28	MAY 3387242
29	MAY W10402907
30	MAY W10112954
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	PLUG-STRIP FRONT PANEL
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY 8519459
41	MAY 8540621
43	SCREW
44	MAY 8565046
45	MAY W10549665
46	MAY 8579325
47	STRAIN-RELIEF CLIP
48	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
