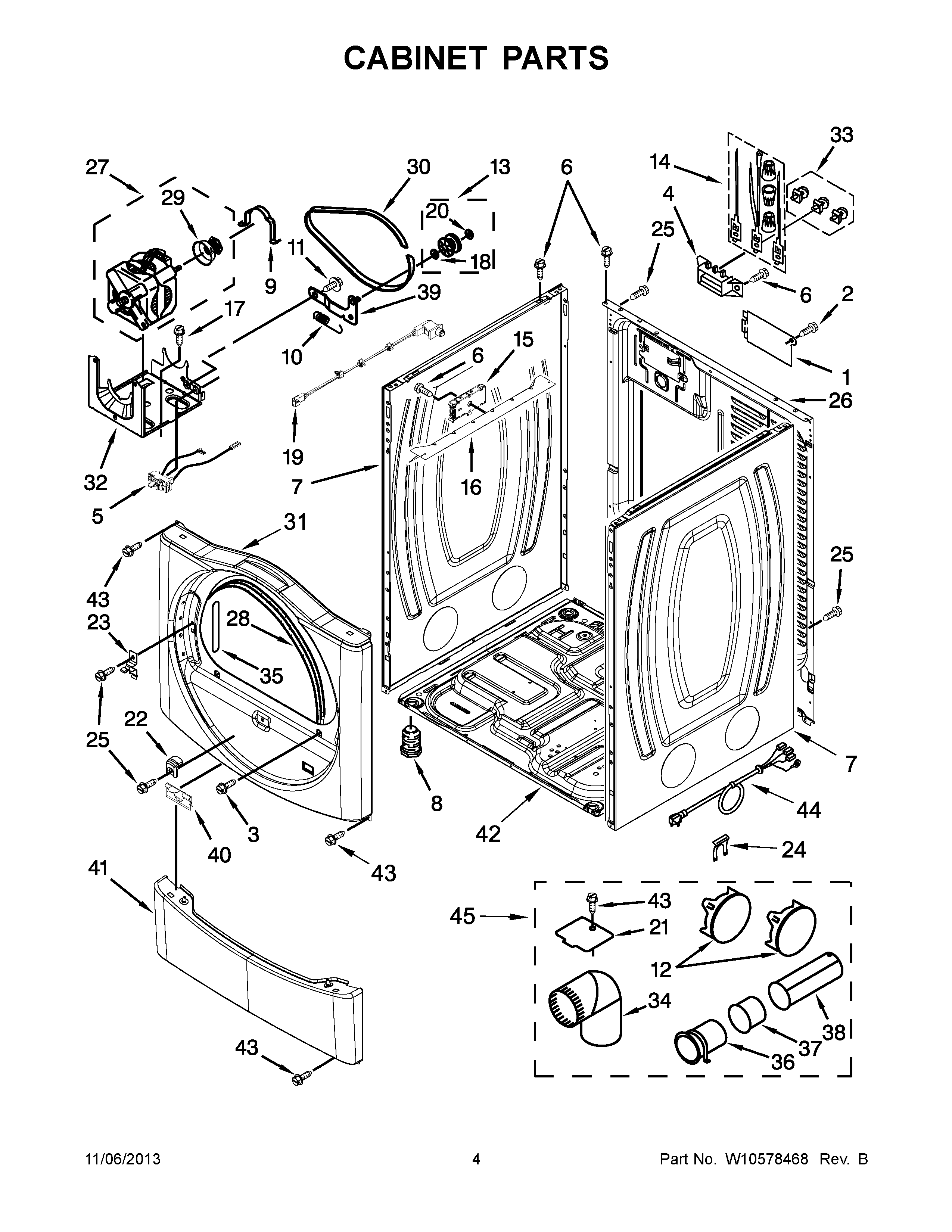

YMEDE251YL1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10286180
2	MAY 8533974
3	SCREW
4	MAY 3397659
5	MAY W10411936
6	Screw, 8-18 x 3/8
7	MAY W10542715
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10450081
16	Bracket, Control
17	SCREW
19	DOOR SWITCH ASSEMBLY
20	MAY W10121334
21	MAY 8066115
22	MAY 8580015
23	STRIKE, DOOR
24	STRAIN-RELIEF CLIP
25	SCREW, 10-16 X 1/2
26	MAY 8565059
27	MAY W10317045
28	MAY 3387242
29	MAY W10402907
30	MAY W10112954
31	MAY W10551279
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	MAY W10085230
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY 8519459
41	TOE PANEL
42	MAY 8565046
43	SCREW
44	MAY 8579325
45	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
