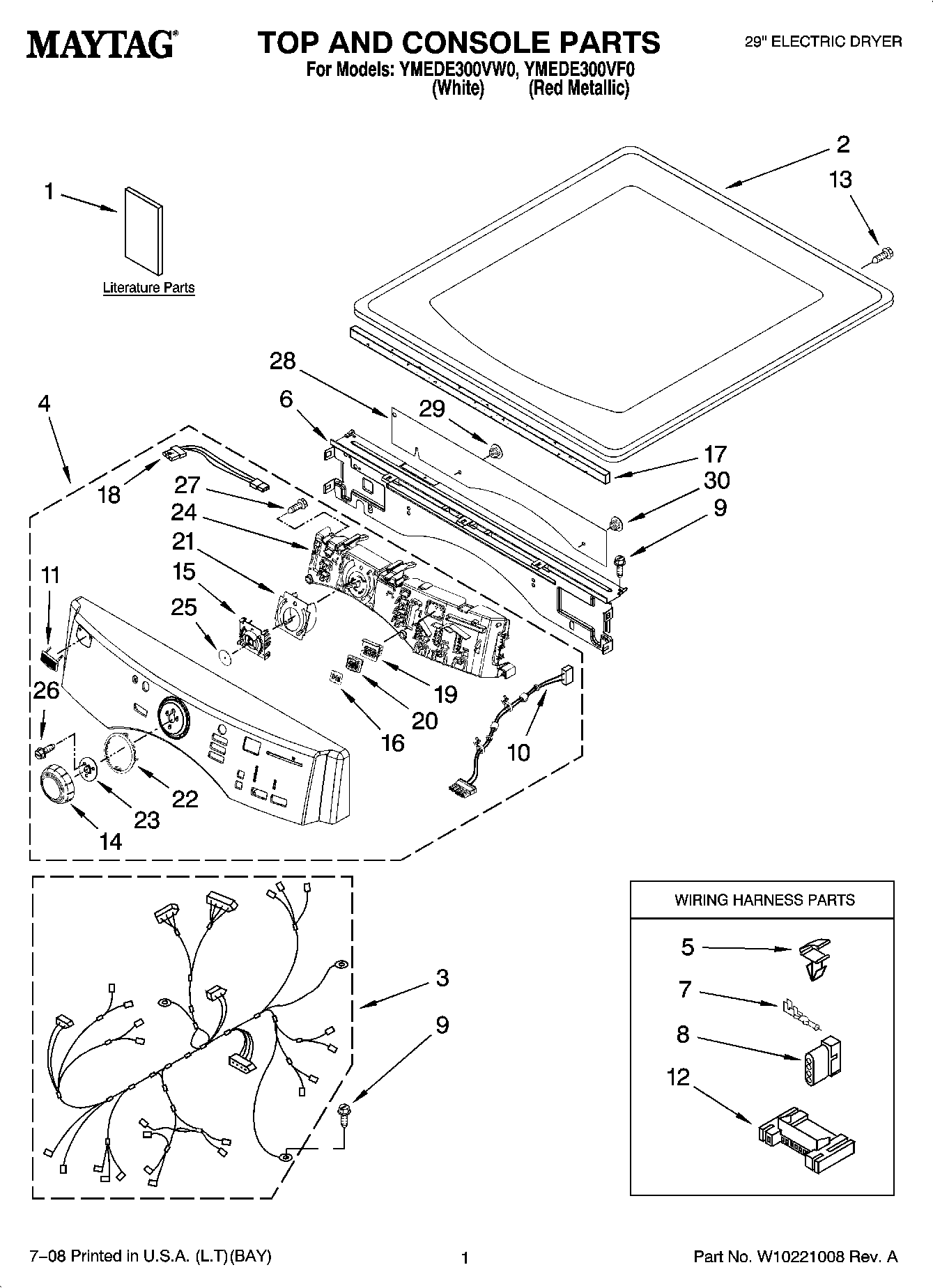

YMEDE300VF0 01 – TOP AND CONSOLE PARTS

YMEDE300VF0 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDE300VF0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10134980
1MAY W10057359
1MAY W10057355
1MAY W10057349
2MAY 3980634
2MAY W10193964
3MAY W10111013
4Panel, Console (Red Metallic (Includes Buttons & Control Board Item. 13))
4Panel, Console (White)
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Terminal
8MAY 3936144
9SCREW
10MAY W10185550
11MAY W10177245
12CONNECTOR (MOTOR)
13Screw, 8-32 x 1/32
14MAY W10164576
15MAY W10170293
16MAY W10171504
17Seal, Foam Console Bracket
18MAY W10185548
19Frame-Light (Guide Display)
20MAY W10164578
21MAY W10170295
22MAY W10164567
23MAY W10172298
24MAY W10164609
25SEAL, UI
26MAY 8540513
27MAY 8540282
28MAY W10215674
29PLUG-HOLE, 1/4“
30PLUG-HOLE, 5/16“
