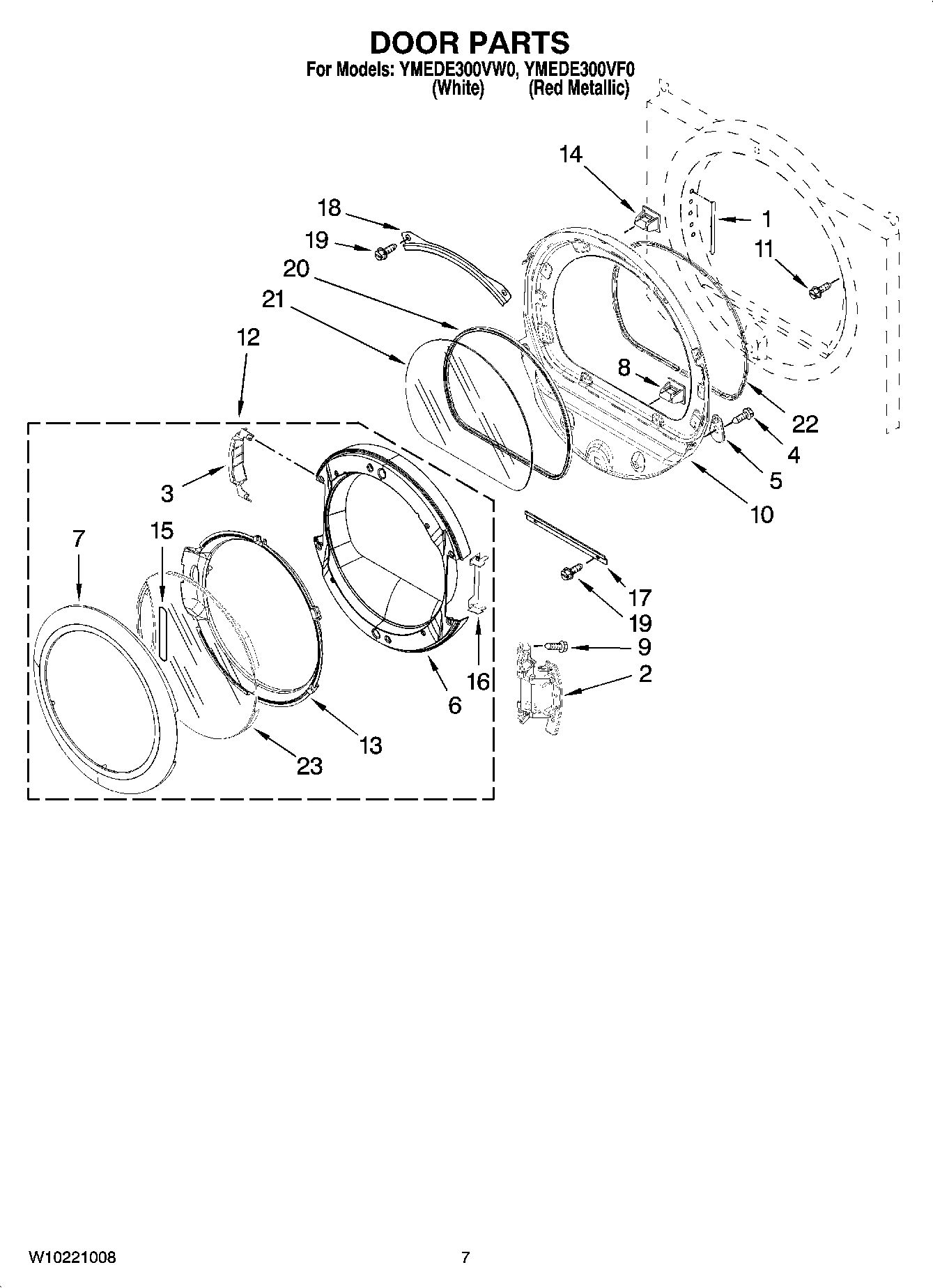

YMEDE300VF0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 8579666A
NI	PAINT, TOUCH-UP (1/2oz.) (Red Metallic)
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	PLUG-STRIP FRONT PANEL
2	MAY W10139920
3	Cover, Door Hinge
4	Screw
5	MAY W10048910
6	Door-Intermediate
7	Handle Ring
8	Catch, Door
9	SCREW
10	DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 1 & 8 )
11	MAY 355515
12	Door, Outer Assembly
13	MAY W10180117
14	Door Catch Assembly (Upper)
15	PAD-HANDLE
16	Door-Shield
17	MAY 8519354
18	MAY 8519356
19	Screw, 10-16 x 1/2
20	MAY 8579662
21	Glass-Window
22	Seal Door Assembly (Upper)
23	Screen, Door
