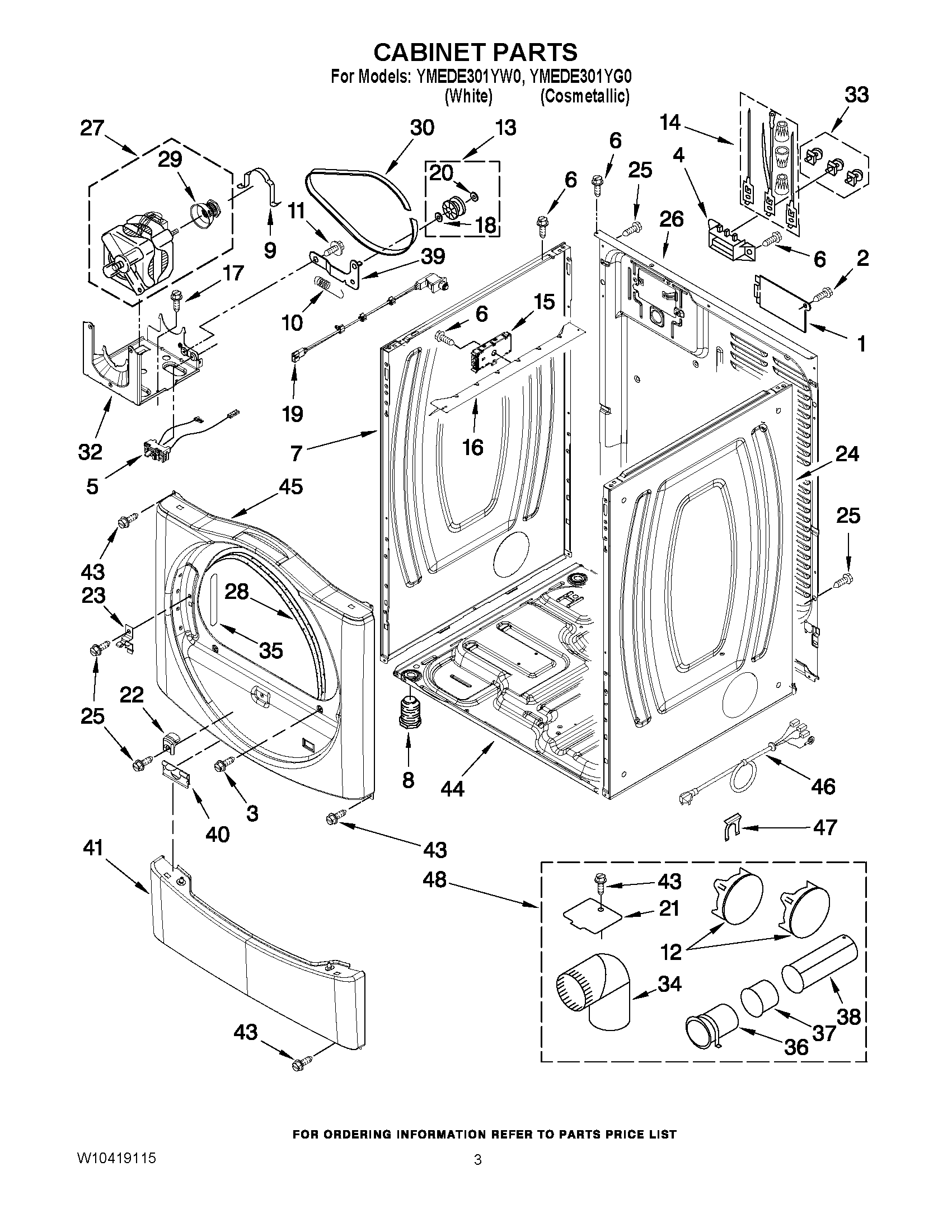

YMEDE301YG0 02 – CABINET PARTS

Products

Position	Product
NI	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
NI	MAY 279810
1	MAY W10119283
2	MAY 8533974
3	SCREW
4	MAY 3397659
5	MAY W10246525
6	Screw, 8-18 x 3/8
7	MAY W10376735
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	PLUG, MULTIVENT
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10405846
16	Bracket, Control
17	SCREW
19	DOOR SWITCH ASSEMBLY
20	MAY W10121334
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	MAY 8565048
24	MAY W10376736
25	SCREW, 10-16 X 1/2
26	PANEL-REAR
27	Motor Assembly 60 HZ.
28	MAY 3387242
29	Pulley 60 HZ.
30	MAY W10112954
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	PLUG-STRIP FRONT PANEL
35	MAY W10085230
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY 8519459
41	MAY 8540621
41	TOE PANEL (COSMETALLIC)
43	SCREW
44	MAY 8565046
45	MAY W10117421
45	FRONT PANEL (COSMETALLIC)
46	MAY 8579325
47	STRAIN-RELIEF CLIP
