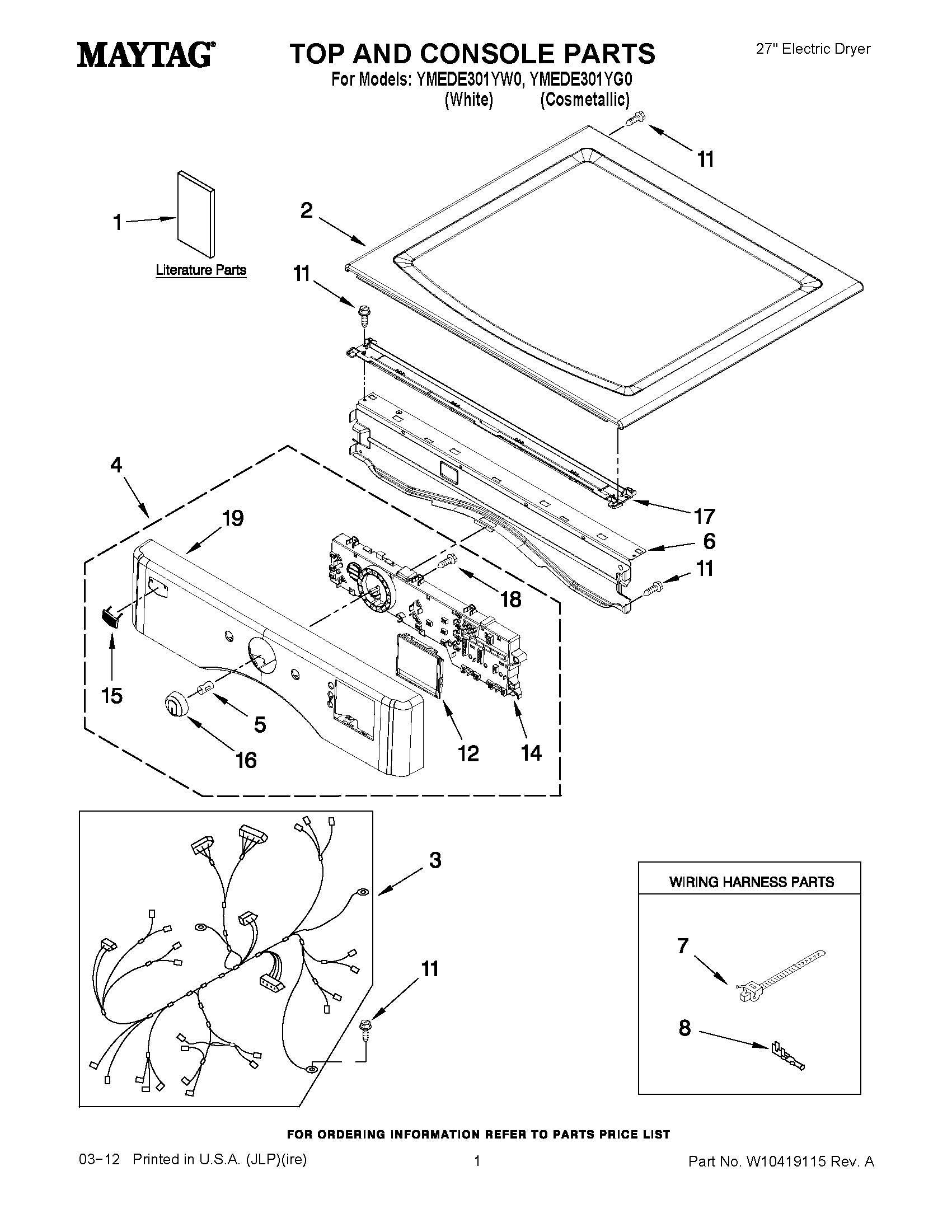

YMEDE301YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1MAY W10386307
1HEATER BOX
2MAY W10376730
2TOP (WHITE)
3MAY W10278760
4CONSOLE PANEL, ASSEMBLY (WHITE)
4CONSOLE PANEL, ASSEMBLY (COSMETALLIC)
5CLIP, SPRING
6MAY 8565237
7MAY 3391018
8Terminal
11SCREW
12MAY W10215794
14MAY W10387237
15BADGE (CHROME)
16KNOB, CONTROL (CHROME)
17CHANEL, WATER
18SCREW, TOP
19MAY W10384997
19MAY W10385031
