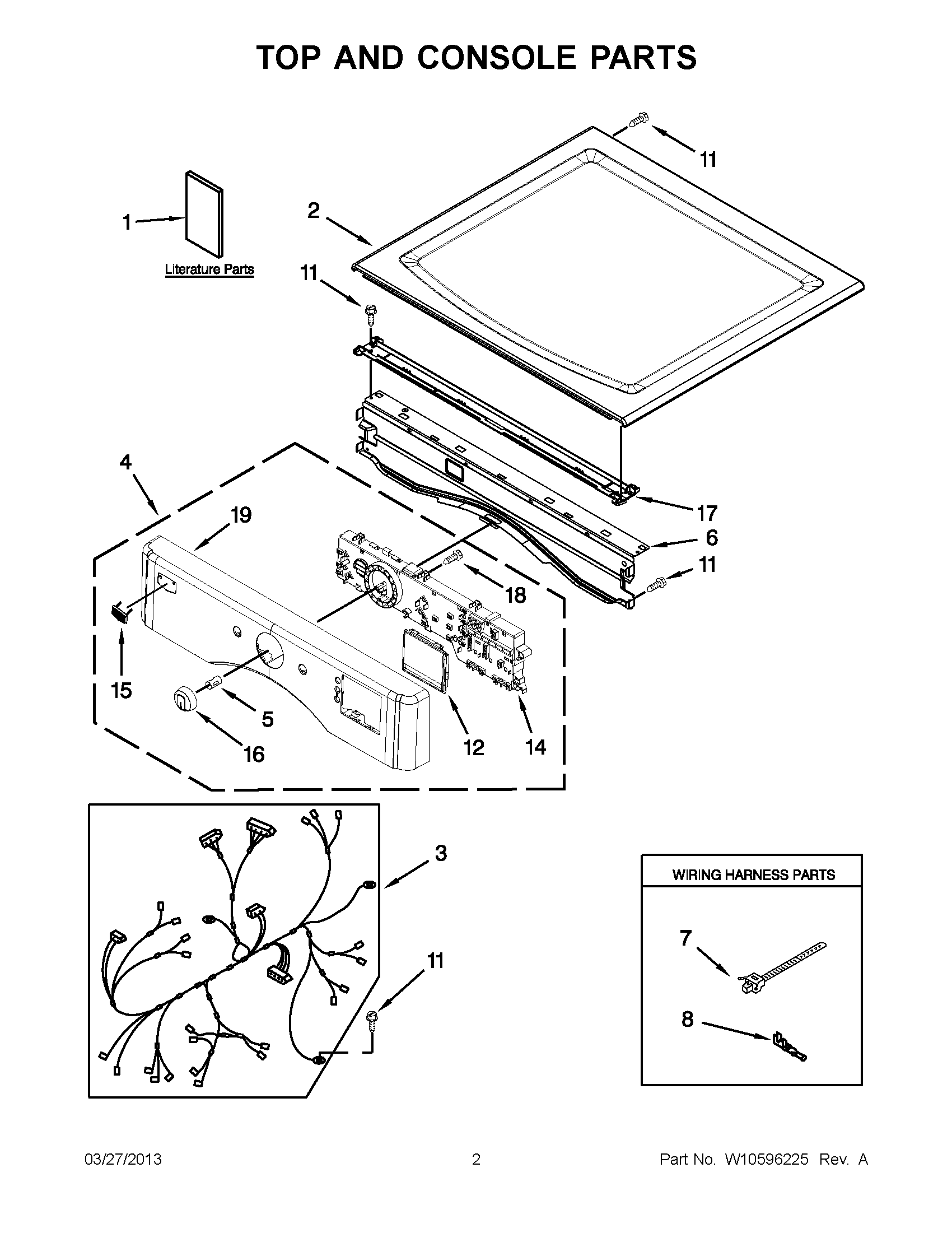

YMEDE301YW1 01 – TOP AND CONSOLE PARTS

YMEDE301YW1 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDE301YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1HEATER BOX
1MAY W10443109
1MAY W10443045
1MAY W10287225
1MAY W10392462
2MAY W10376730
2TOP (WHITE)
3MAY W10555107
4CONSOLE PANEL, ASSEMBLY (COSMETALLIC)
4CONSOLE PANEL, ASSEMBLY (WHITE)
5CLIP, SPRING
6MAY 8565237
7MAY 3391018
8Terminal
11SCREW
12MAY W10215794
14MAY W10387237
15BADGE (CHROME)
16KNOB, CONTROL (CHROME)
17CHANEL, WATER
18SCREW, TOP
19MAY W10384997
19MAY W10385031
