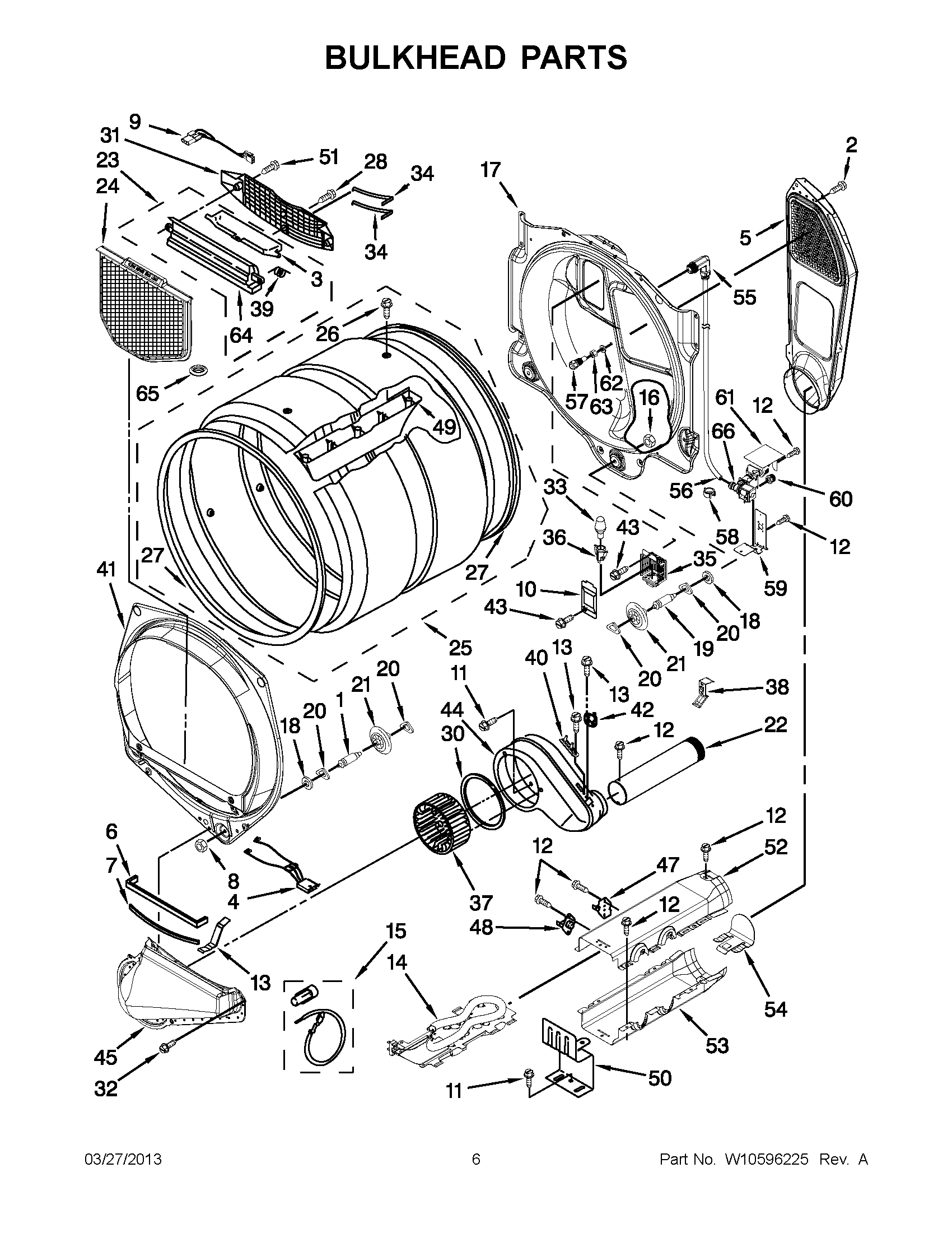

YMEDE301YW1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
3	MAY W10153413
4	SENSOR HARNESS
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10110975
10	MAY 3402841
11	Screw
12	SCREW,8-18 X 3/8
13	CLIP, SPRING
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10133857
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 8563728
23	Housing, Outlet
24	MAY W10049370
25	DRUM ASSEMBLY, COMPLETE
26	MAY W10219342
27	MAY W10521118
28	Screw, 8-18 x 1/2
30	SEAL, PLATE COVER
31	MAY W10153412
32	Screw
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10214261
37	MAY W10349492
38	CLIP, EXHAUST
39	Spring, Lint Screen Door
40	Fuse, Thermal (91 C)
41	MAY 8565061
42	THERMISTOR
43	SCREW
44	MAY 8544362
45	Lint Duct Assembly
47	MAY 8318314
48	MAY 3391914
49	MAY W10153409
50	MAY 8066099
51	SCREW
52	MAY 8544769
53	MAY 8544770
54	MAY 8544776
55	NOZZLE & HOSE ASSEMBLY
56	LINER (NOT A SERVICEABLE PART)
57	MAY W10277503
58	MAY W10281871
59	MAY W10346730
60	MAY W10044605
61	MAY W10184825
62	MAY W10044579
63	Nut, Brass 9/16 – 24 x 1/2
64	MAY W10153414
65	CAP, PLUG
66	MAY W10353542
