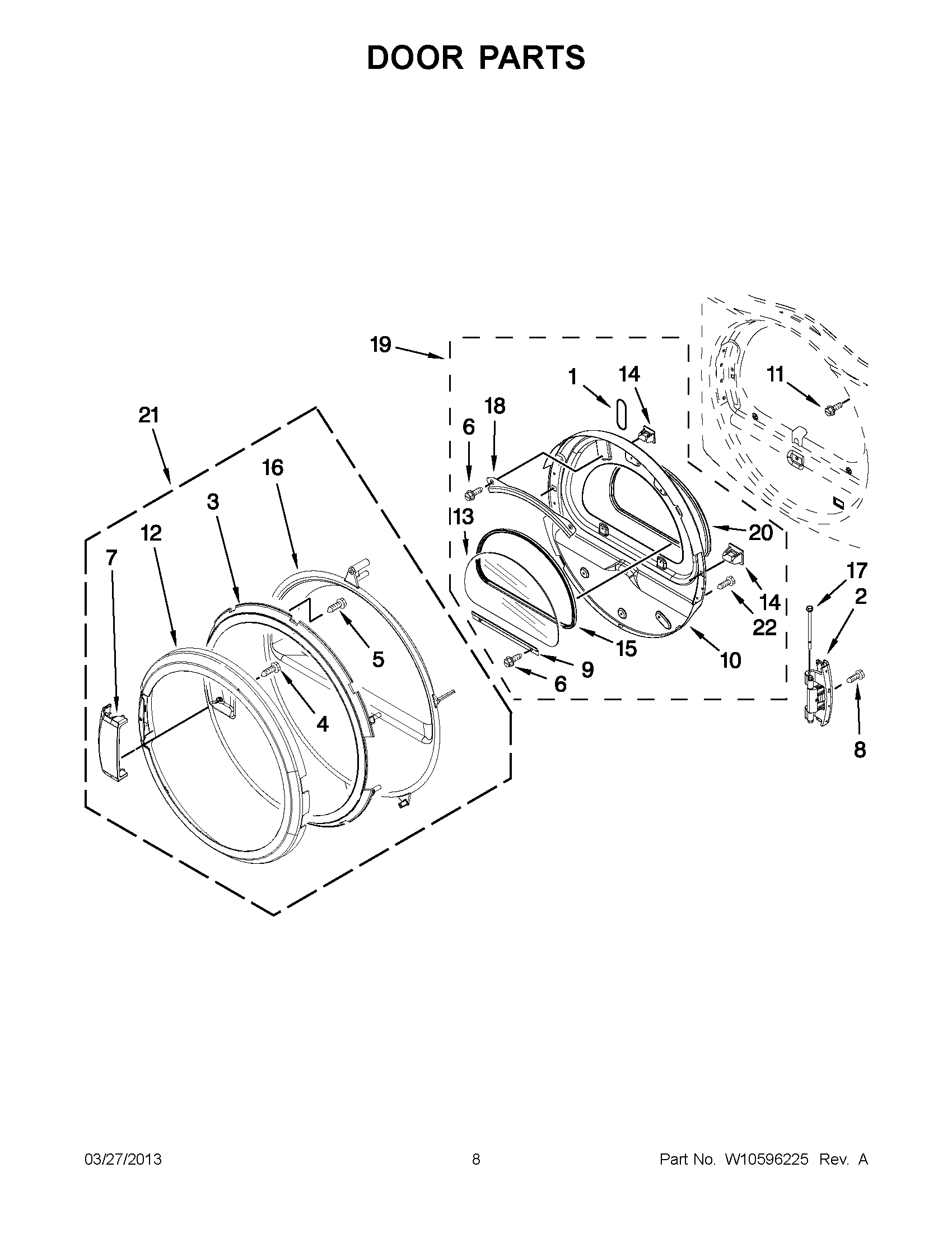

YMEDE301YW1 04 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	DOOR HINGE ASSEMBLY
3	DOOR SCREEN
4	Screw
5	MAY 3400618
6	Screw, 10-16 x 1/2
7	HANDLE, DOOR (CHROME)
8	SCREW
9	MAY 8519354
10	MAY W10363674
11	MAY 355515
12	TRIM RING, OUTER DOOR (CHROME)
13	MAY W10286878
14	Catch, Door
15	MAY 8579663
16	DOOR,INTERMEDIATE
17	BOLT
18	MAY 8519356
19	INNER DOOR ASSEMBLY
20	MAY W10163915
21	DOOR, FRONT (CHROME)
22	MAY 8534044
