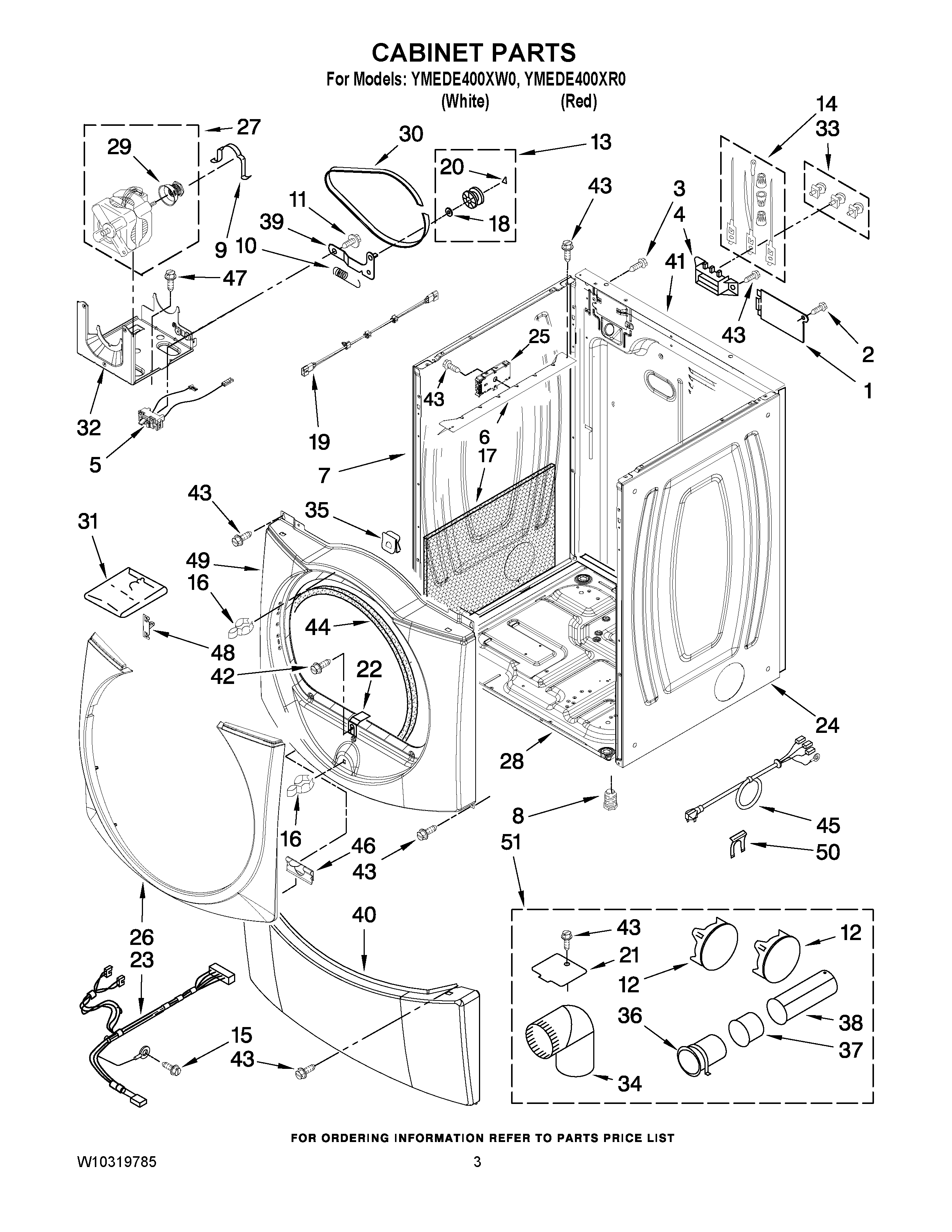

YMEDE400XW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 3397659
5	MAY W10246525
6	Bracket, Control
7	Panel, Side (L.H.) (White)
7	MAY W10249768
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
12	MAY W10151499
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	Screw
16	MAY 696144
17	MAY W10123956
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	MAY W10242904
24	MAY W10249769
24	Panel, Side (R.H.) (White)
25	CONTROL BOARD
26	TRIM-RING ASSEMBLY (INCLUDE, ITEM. 48 ) (RED)
26	TRIM-RING ASSEMBLY (WHITE)
27	MAY W10250900
28	MAY W10239098
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8541503
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	Clip, S-Type (3)
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	PANEL, TOE (RED)
40	PANEL, TOE
41	MAY W10303519
42	SCREW
43	SCREW
44	MAY 3387242
45	MAY 8579325
46	MAY 8519459
47	SCREW
48	Trim-Clip Metal
49	LINER (NOT A SERVICEABLE PART)
50	STRAIN-RELIEF CLIP
50	FRONT PANEL (INCLUDES, ITEM. 44 ) (RED)
50	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
51	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
51	MAY 279818
