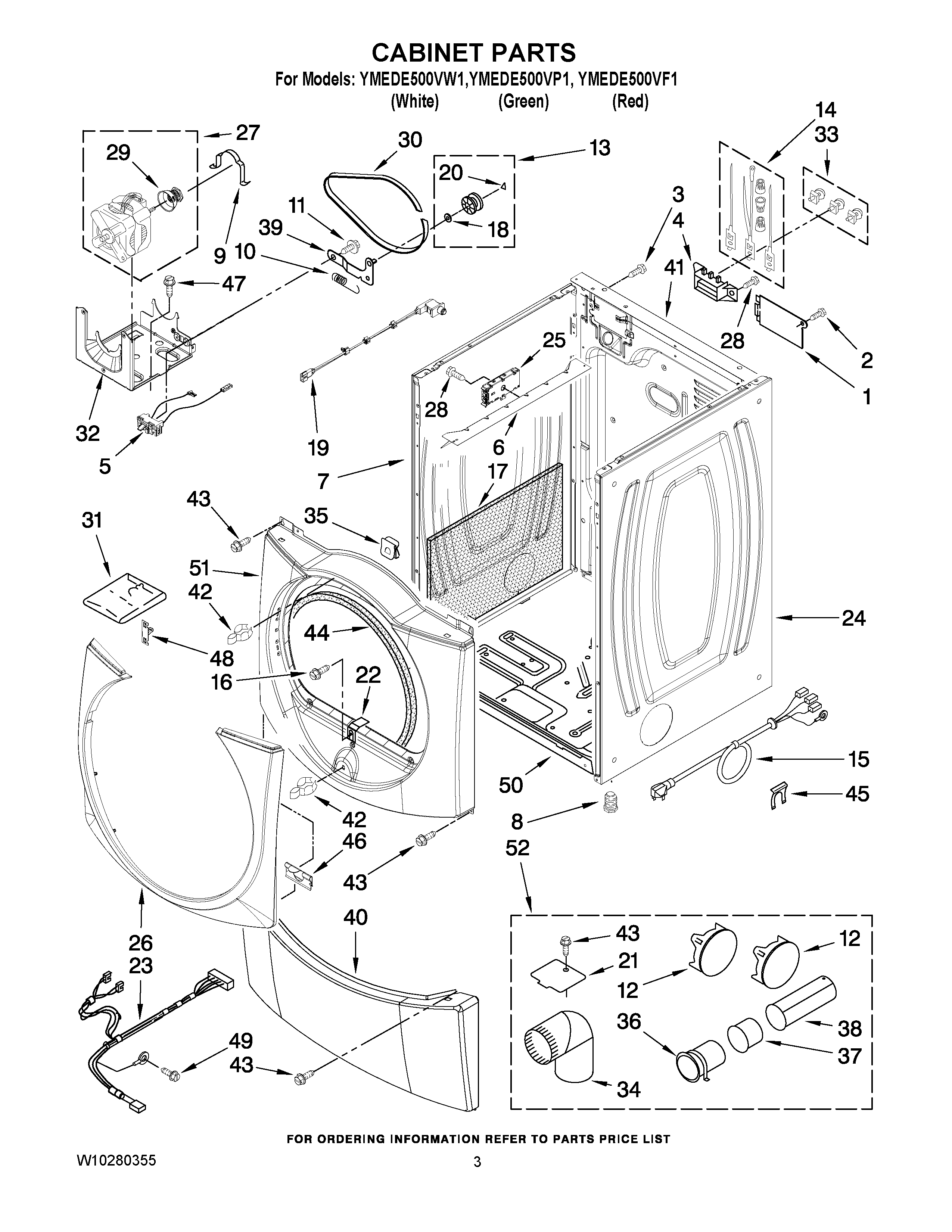

YMEDE500VF1 02 – CABINET PARTS

YMEDE500VF1 02 – CABINET PARTS

Written by

in

YMEDE500VF1 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WPW10411937 Whirlpool Switch
6WP8563727 Whirlpool Bracket
7W11233548 Whirlpool Panel
7PANEL, SIDE (L.H.) (RED)
7PANEL, SIDE (L.H.) (GREEN)
849621 Whirlpool Leveling Feet
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15Cord, Power
16WP308685 Whirlpool Microwave Screw
17W10123956 Whirlpool Sound Absorber
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
23W10242904 Whirlpool Wire Harness
24PANEL, SIDE (R.H.) (RED)
24PANEL, SIDE (R.H.) (GREEN)
25Board, Control
26TRIM-RING ASSEMBLY (INCLUDES ITEM. 48 ) (GREEN)
26TRIM-RING ASSEMBLY (INCLUDES ITEM. 48 ) (RED)
26TRIM-RING ASSEMBLY (INCLUDES ITEM. 48 ) (WHITE)
27279787 Whirlpool Dryer Drive Motor
29W10837625 Whirlpool Dryer Motor Pulley
30BELT
318541503 Whirlpool Stacking Kit
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35Clip, Mounting (2)
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40WPL W10246286
40WPL W10246288
40TOE-PANEL (WHITE)
41Panel, Rear
42279570 Whirlpool Dryer Door Latch Kit
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
45W11712577 Whirlpool Clip
46W11295573 Whirlpool Clip
47SCREW
48WPW10129065 Whirlpool Clip
49WP693995 Whirlpool Screw
50BASE, CABINET
51WPL W10153275
51WPL W10193967
51WPL W10244555
52W10470674 Whirlpool Dryer Side Vent Exhaust Kit
