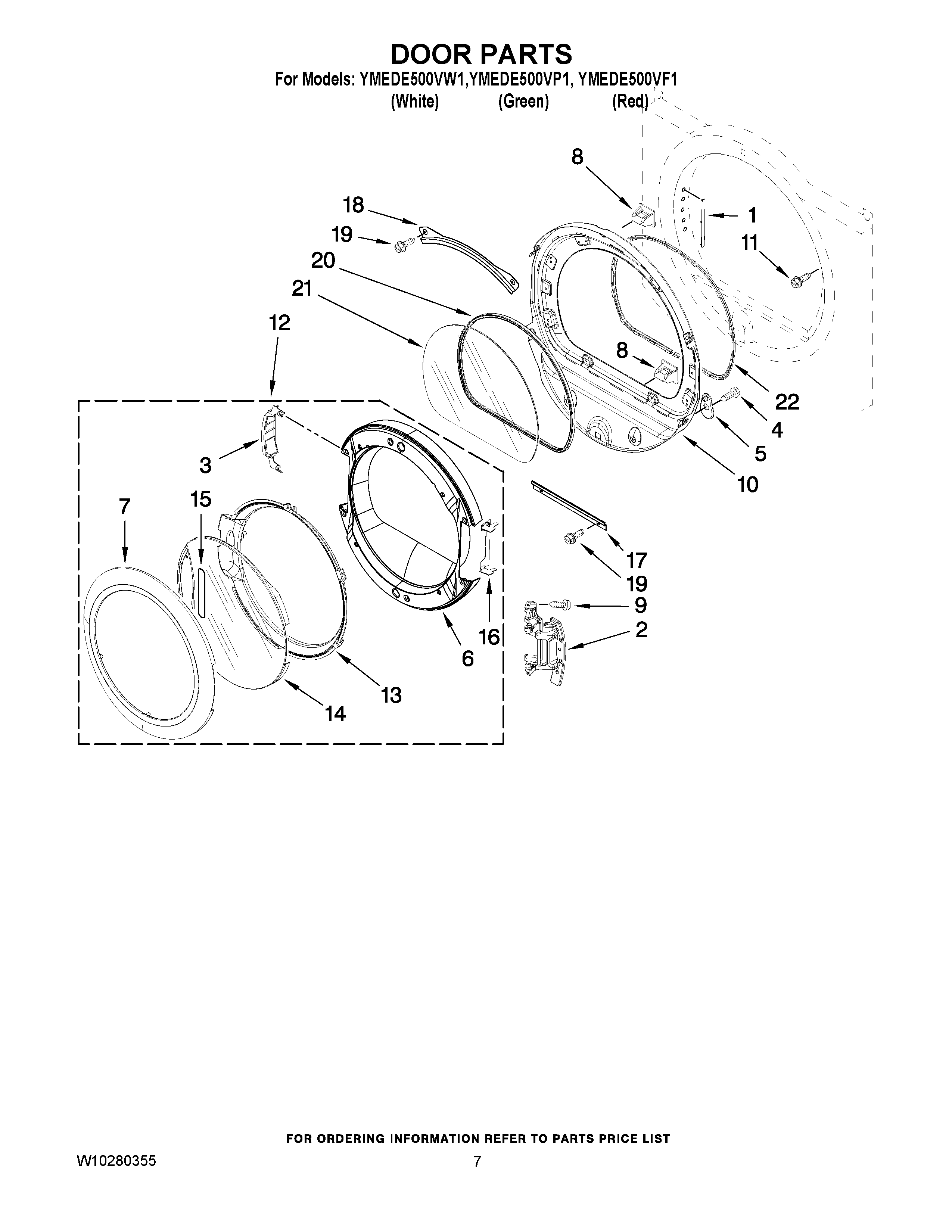

YMEDE500VF1 04 – DOOR PARTS

YMEDE500VF1 04 – DOOR PARTS

Written by

in

YMEDE500VF1 04 – DOOR PARTS

Products

PositionProduct
1W10085210 Whirlpool Label
1WPW10085230 Whirlpool Label Assembly
2WPW10310366 Whirlpool Hinge
3Cover-Hinge, Stationary (LH)
4SCREW
5Screw-Plug
6Door, Intermediate
7HANDLE, RING DOOR
8279570 Whirlpool Dryer Door Latch Kit
9WPW10159996 Whirlpool Screw
10Door Assembly (Inner) (Includes Illus. 12 & 18)
11WP355515 Whirlpool Screw
12DOOR ASSEMBLY (OUTER)
13Door Mask
14DOOR SCREEN
15W10121607 Whirlpool Cushion
16Door Shield
17W10822054 Whirlpool Retainer
188519356 Whirlpool Retainer
19WP3373329 Whirlpool Dishwasher Screw
208579662 Whirlpool Seal
21WP8566254 Whirlpool Window Assembly
22WPW10139457 Whirlpool Door Seal
