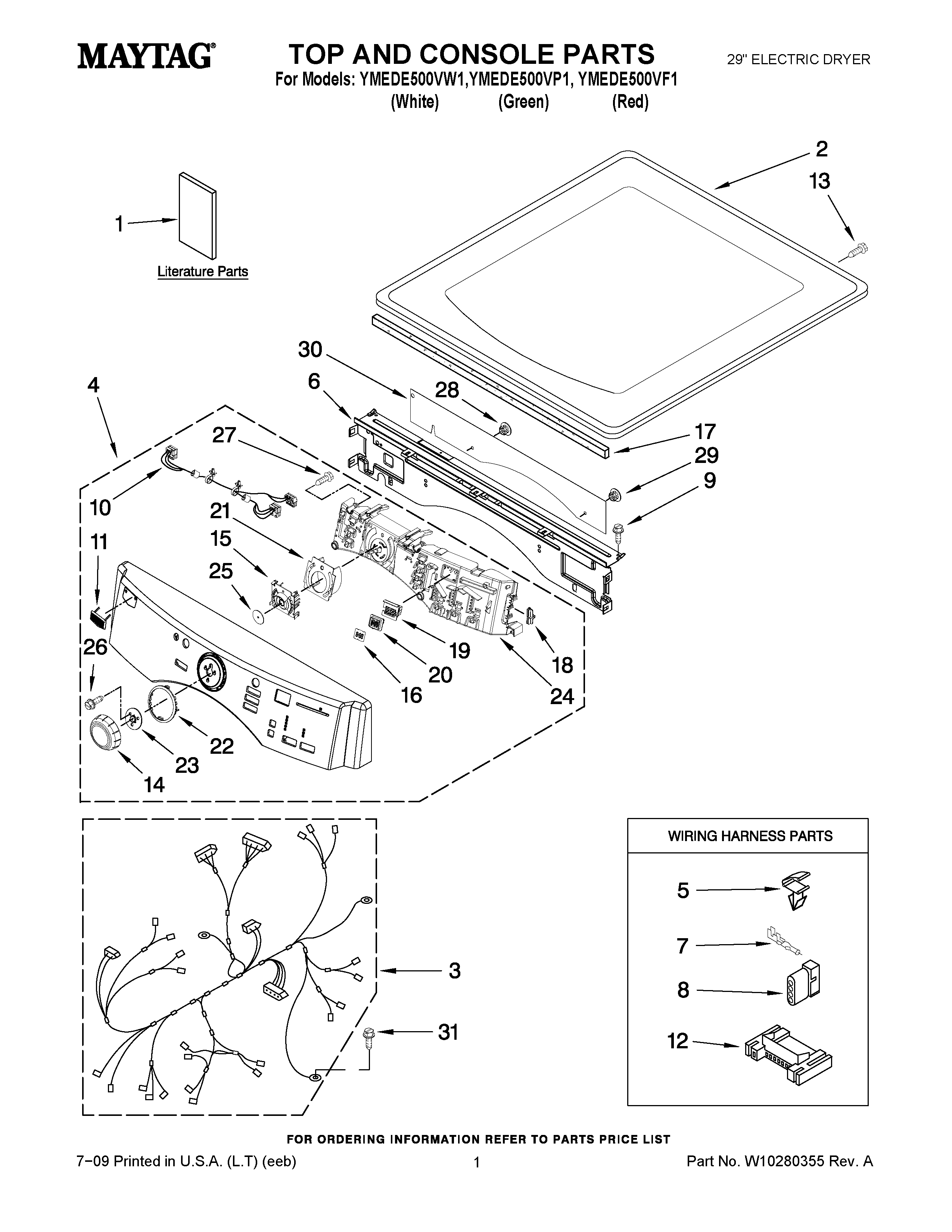

YMEDE500VP1 01 – TOP AND CONSOLE PARTS

YMEDE500VP1 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDE500VP1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET
1INSTALLATION, INSTRUCTION
2TOP (RED)
2TOP (GREEN)
2Top (White)
3HARNESS, MAIN
4WPW10269245 Whirlpool Console
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (WHITE)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (GREEN)
5WP3394427 Whirlpool Clip
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7WP94614 Whirlpool Terminal
83936144 Whirlpool Connector
9WP488729 Whirlpool Refrigerator Door Screw
10W10242907 Whirlpool Wire Harness
11W10732500 Whirlpool Medallion Trim
123395683 Whirlpool Connector
13303776 Whirlpool Dishwasher Screw
14W10164576 Whirlpool Knob
15W10170293 Whirlpool Ring
16FOIL-DISPLAY
17W10112267 Whirlpool Seal Assembly
18PLUG-CONNECTOR FRAME
19W10171502 Whirlpool Bracket
20GUIDE, LIGHT (3-WAY DIGITAL)
21FRAME-LIGHT GUIDE
22W10164567 Whirlpool Ring Assembly
23BUSHING, KNOB
24USER-INTERFACE
25SEAL, USER INTERFACE
26W11230114 Whirlpool Screw Assembly
27WP8540282 Whirlpool Screw
28PLUG-HOLE,1/4“(2)
29PLUG-HOLE,5/16“(1)
30SHIELD, CONSOLE BRACKET
31WP693995 Whirlpool Screw
